Warning Lamp Flash Code Chart

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

Fig 1: Diagnosis Results Flash Pattern

G08160018

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Driver Air Bag Module Flash Pattern

G08118074

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Bag Diagnosis Sensor Unit Flash Pattern

G04902393

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Front Passenger Air Bag Module Flash Pattern

G08118075

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Crash Zone Sensor Flash Pattern

G04902395

Courtesy of NISSAN NORTH AMERICA, INC.

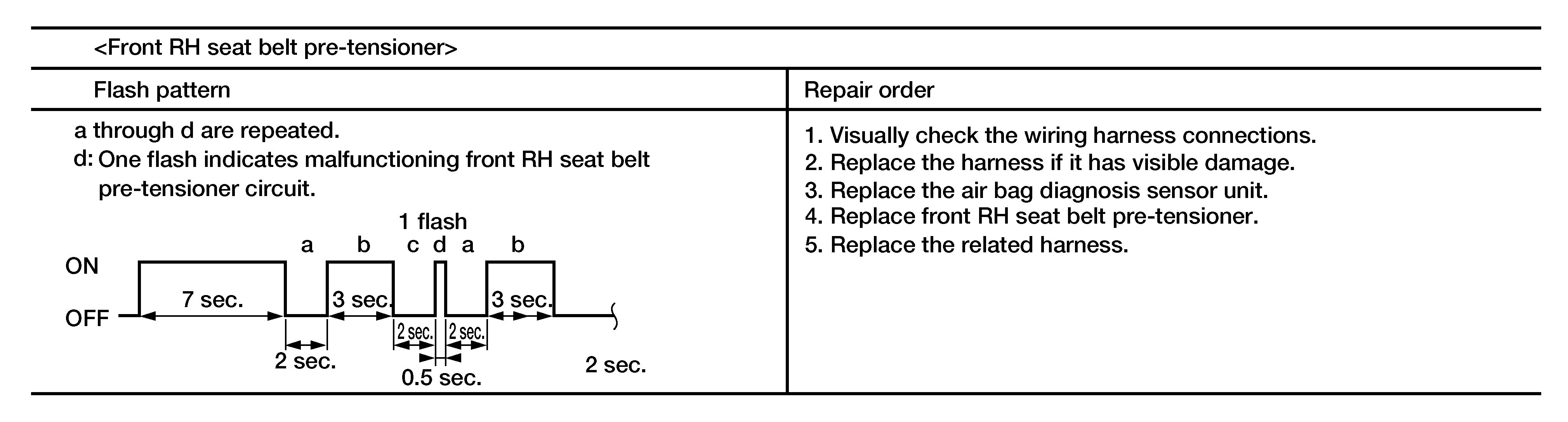

Fig 6: Front RH Seat Belt Pre-Tensioner Flash Pattern

GNSAWHIA0573GB-573

Courtesy of NISSAN NORTH AMERICA, INC.

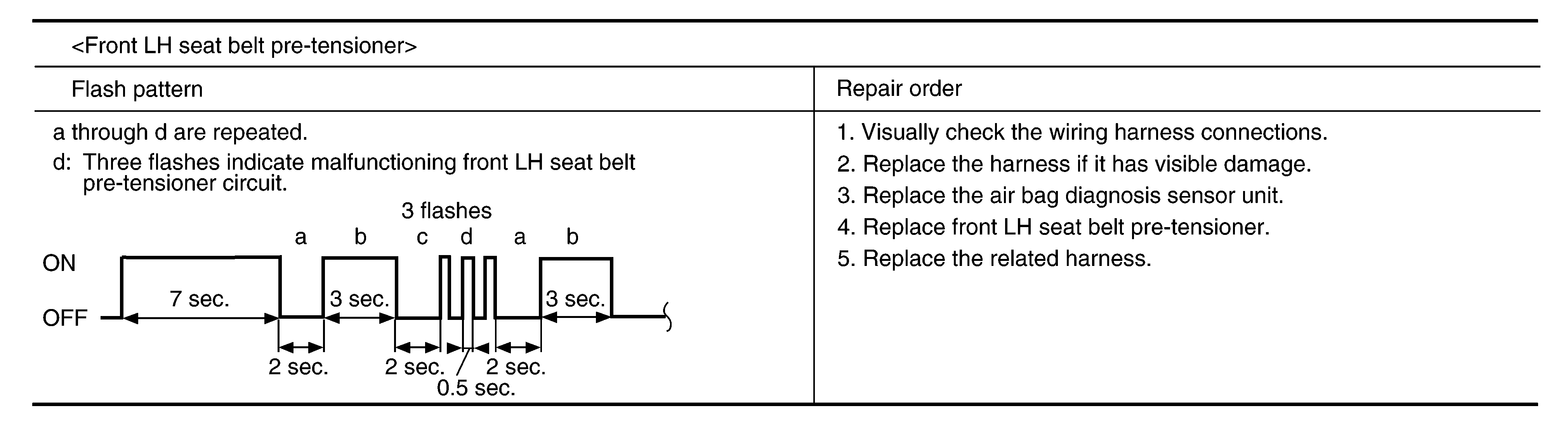

Fig 7: Front LH Seat Belt Pre-Tensioner Flash Pattern

GNSAWHIA0574GB-574

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Side Air Bag Satellite Sensor RH Flash Pattern

G08118084

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Side Air Bag Satellite Sensor LH Flash Pattern

G08118083

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Front Door Satellite Sensor RH Flash Pattern

G08200382

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Front Door Satellite Sensor LH Flash Pattern

G08200383

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Front Door Satellite Sensor LH/RH Flash Pattern

G08118087

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Front RH Side Air Bag Module Flash Pattern

G08118077

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Front LH Side Air Bag Module Flash Pattern

G08118076

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: RH Side Curtain Air Bag Module Flash Pattern

G08118079

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: LH Side Curtain Air Bag Module Flash Pattern

G08118078

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Occupant Classification System Flash Pattern

G08200389

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Front Passenger Air Bag Off Indicator Flash Pattern

G04916691

Courtesy of NISSAN NORTH AMERICA, INC.
