System Diagram

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

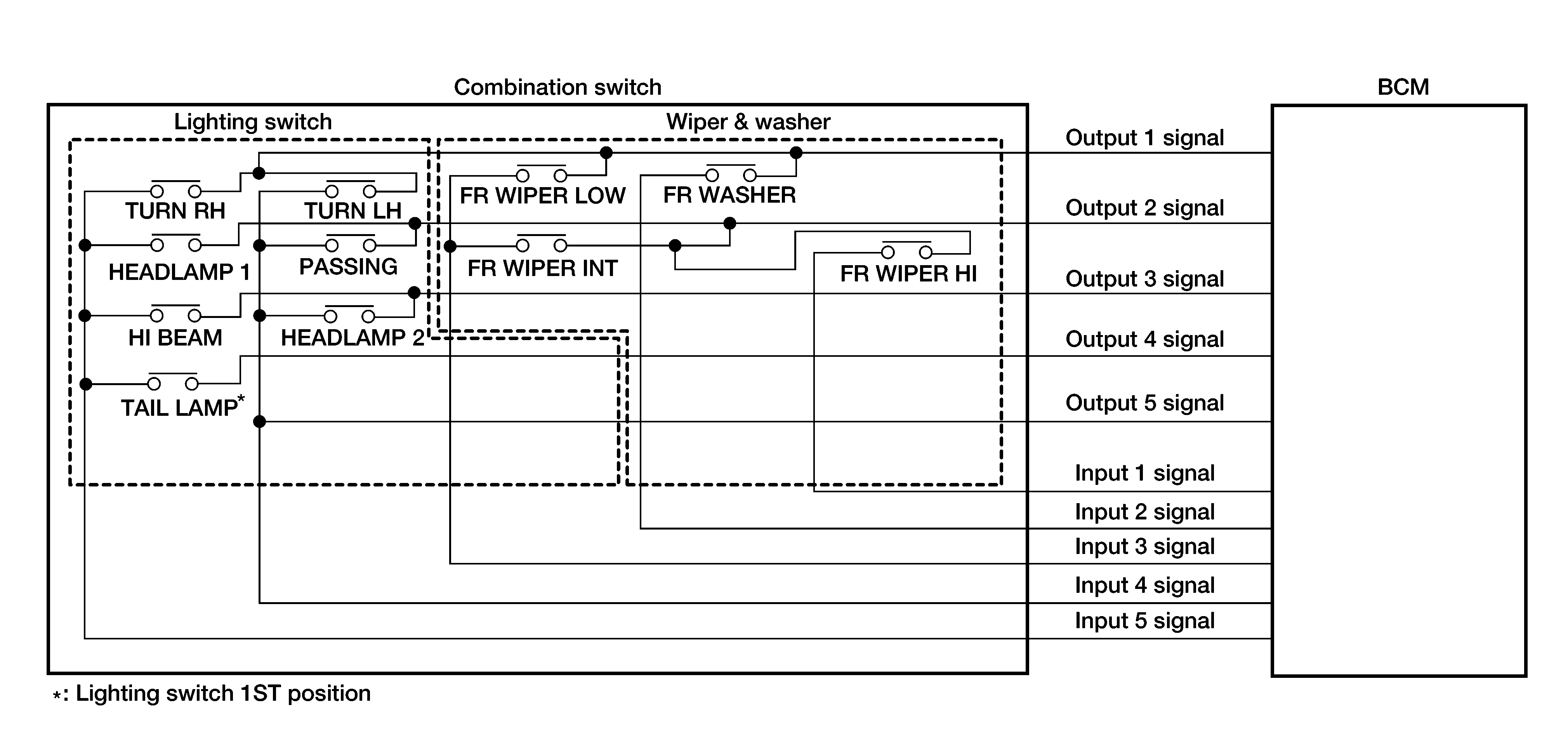

Combination Switch Circuit (With Variable Intermittent Wipers)

Fig 1: Combination Switch Reading -- System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

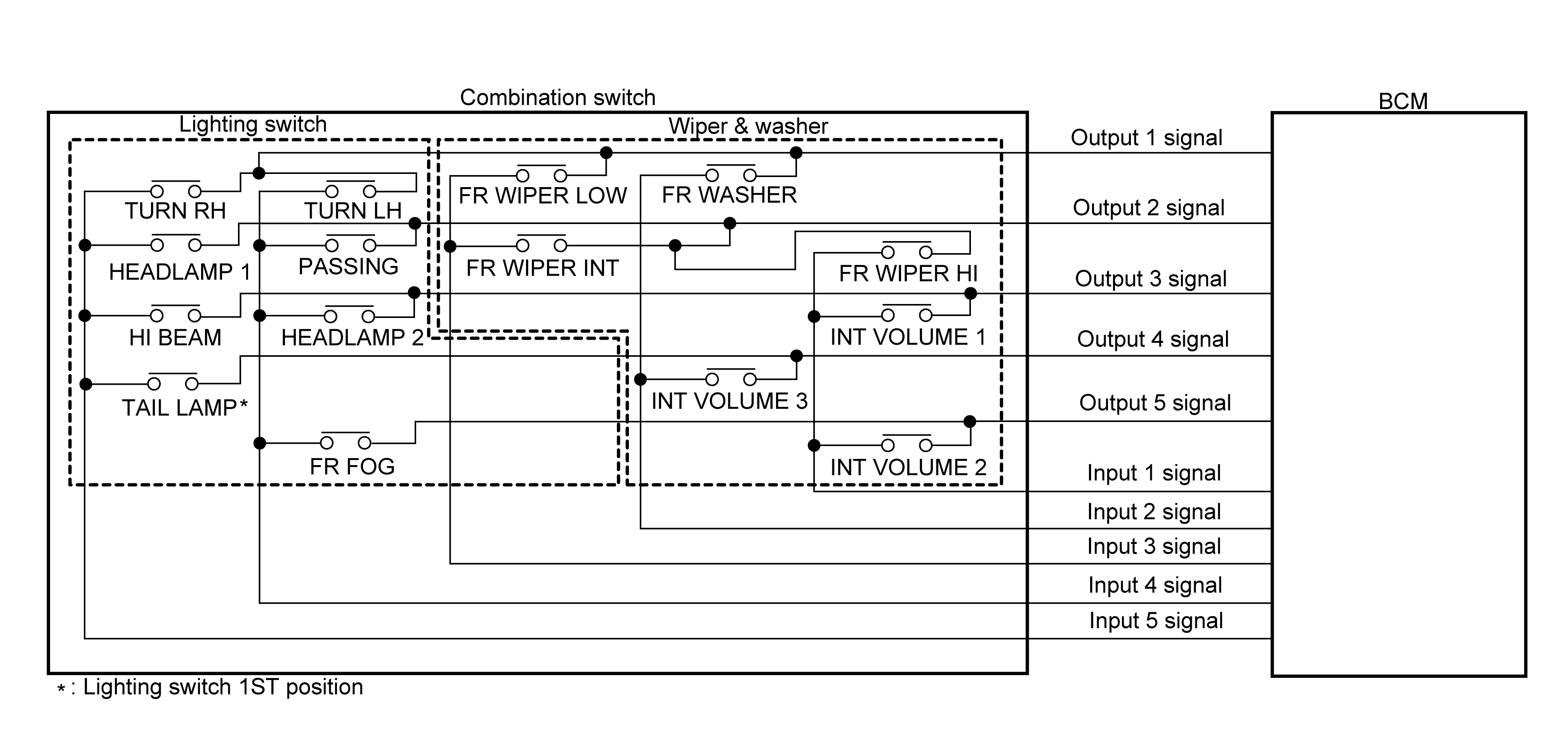

Combination Switch Circuit (Without Variable Intermittent Wipers)

Fig 2: Combination Switch Reading -- Wiring Diagram(2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
