WASHER FLUID LEVEL SWITCH Connector End View (E50)

Connector Color: BROWN

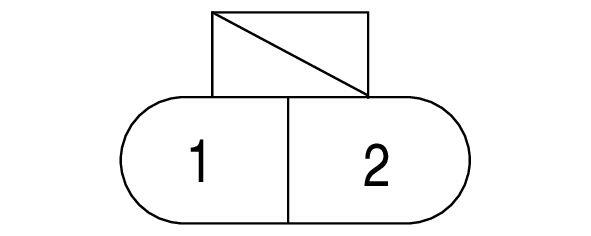

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

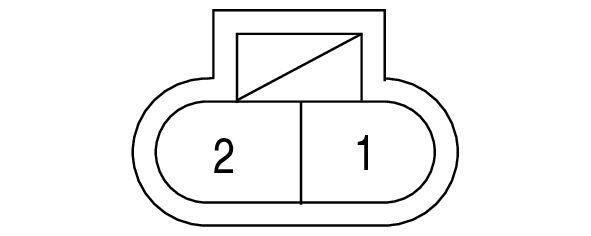

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	-
2	B	-

Circuit Diagram

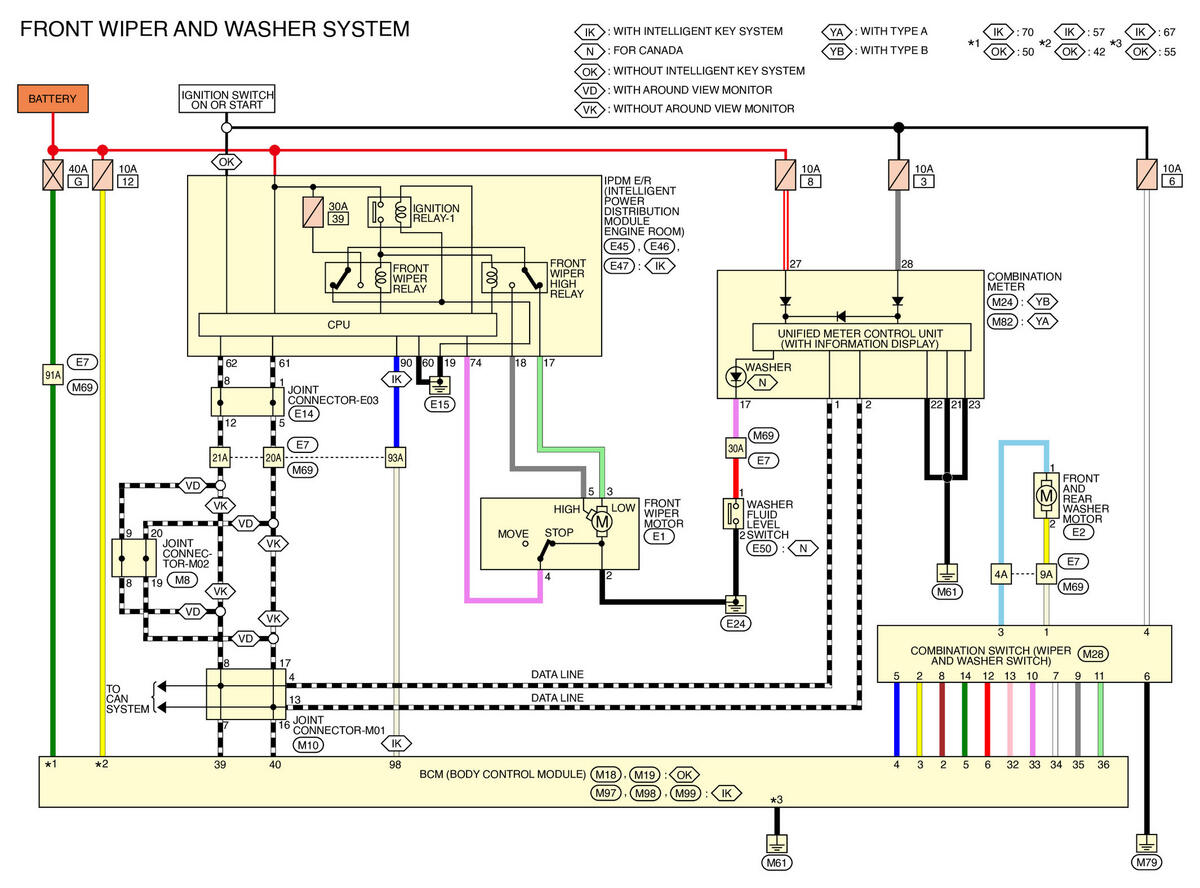

Fig 3: FRONT WIPER AND WASHER SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

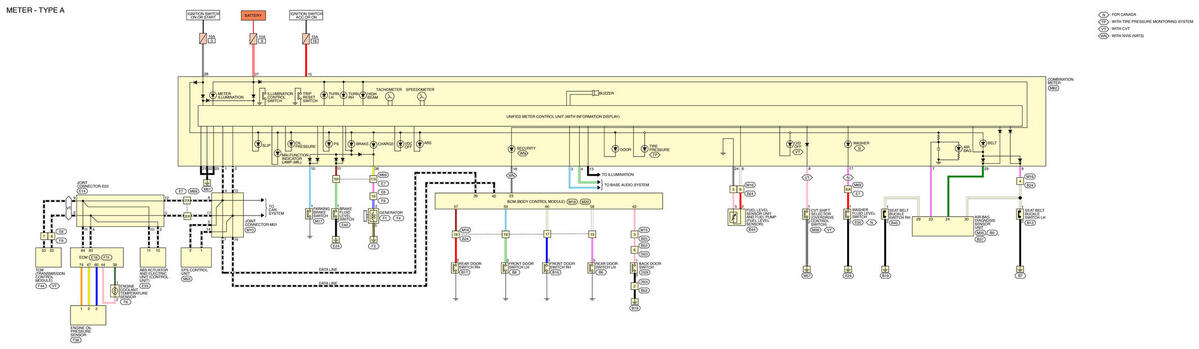

Fig 4: METER - TYPE A

Courtesy of NISSAN NORTH AMERICA, INC.

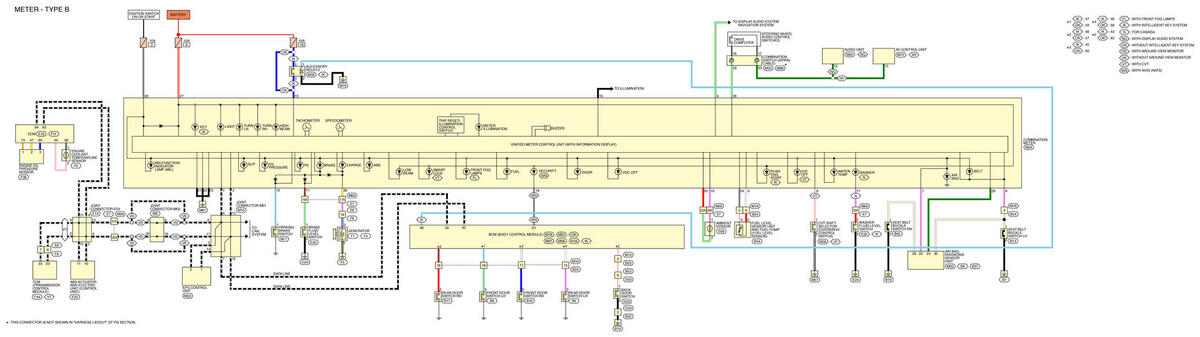

Fig 5: METER - TYPE B

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

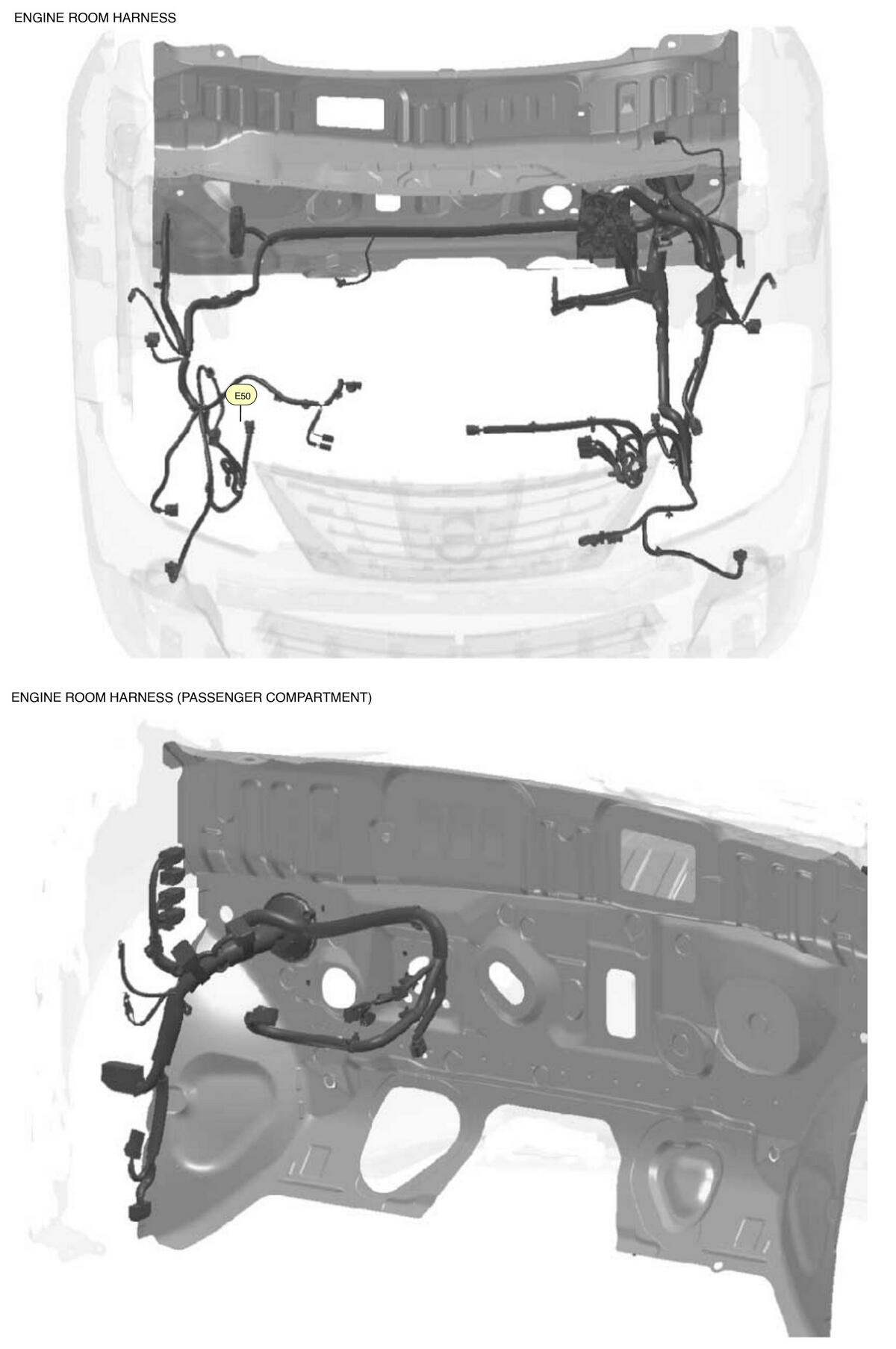

Fig 6: ENGINE ROOM HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: Z02FBR
