Exploded View With Torque Specifications

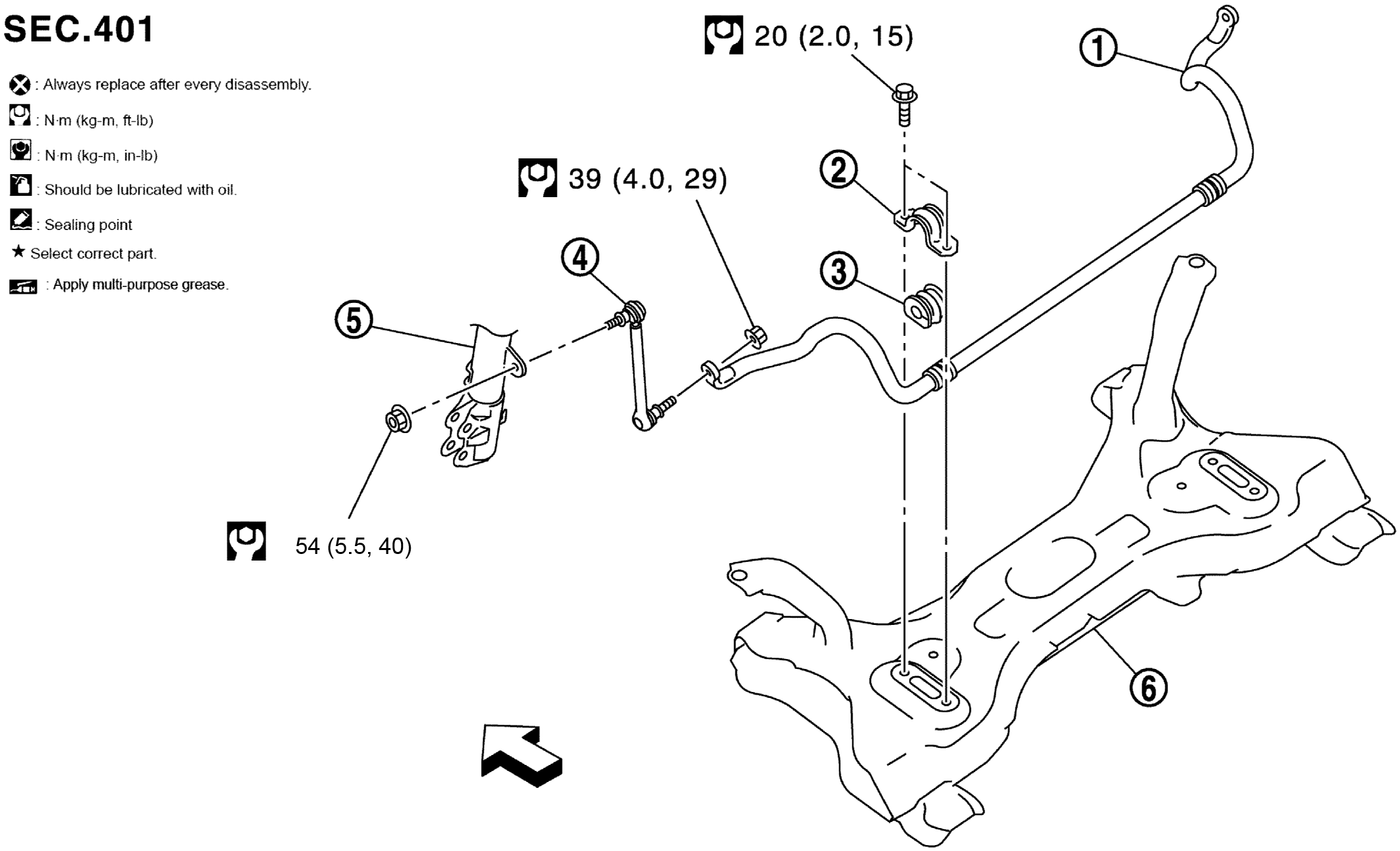

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications
GNSJPEIA0272GB-272Courtesy of NISSAN NORTH AMERICA, INC.
1. Stabilizer bar 2. Stabilizer clamp 3. Stabilizer bushing
4. Stabilizer connecting rod 5. Strut 6. Front suspension member
ARROW Front
