Exploded View With Torque Specifications

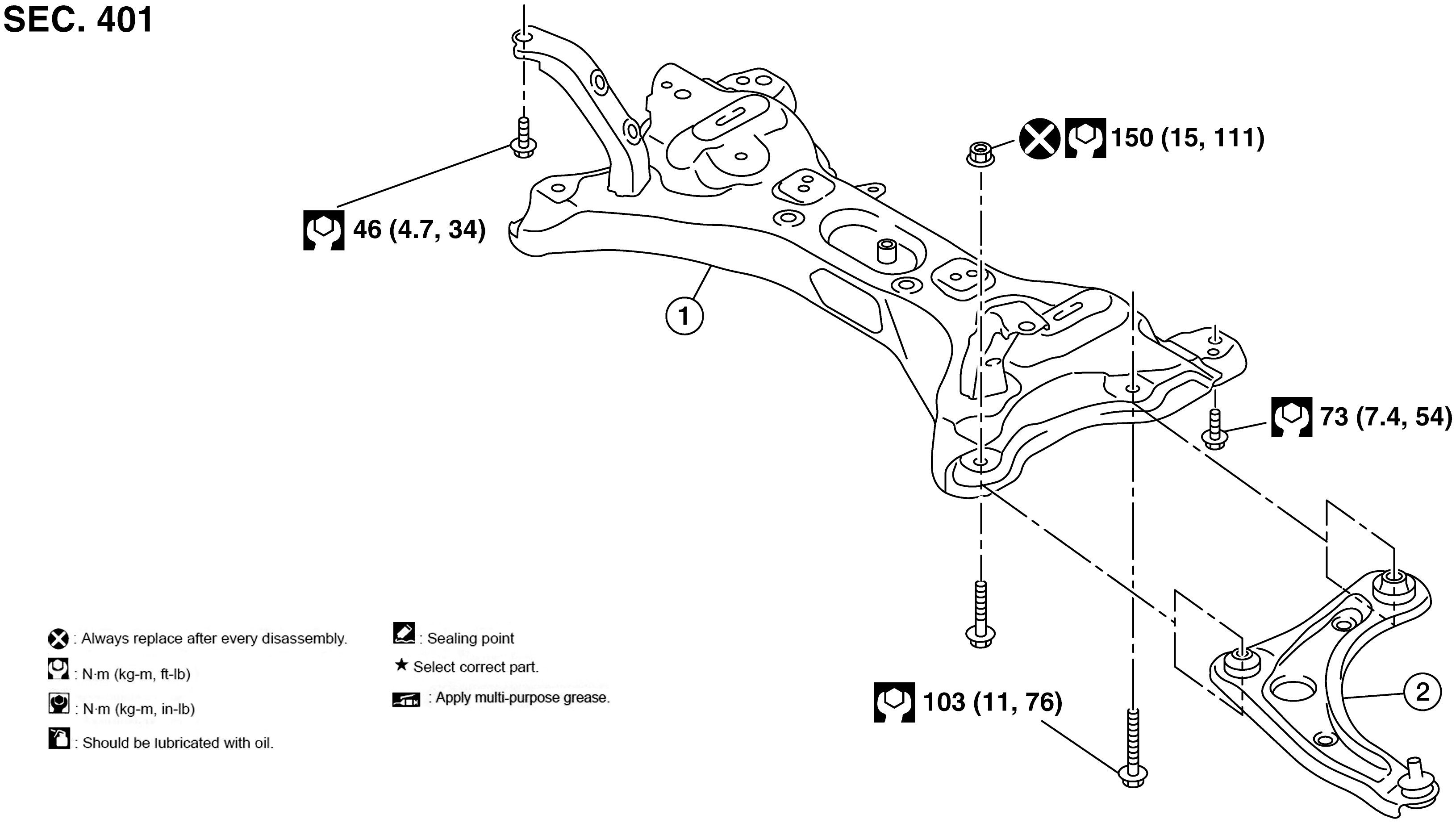

Fig 1: Exploded View Of Transverse Link With Torque Specifications
GNSAWEIA0210GB-210Courtesy of NISSAN NORTH AMERICA, INC.
1. Front suspension member 2. Transverse link
