Exploded View With Torque Specifications

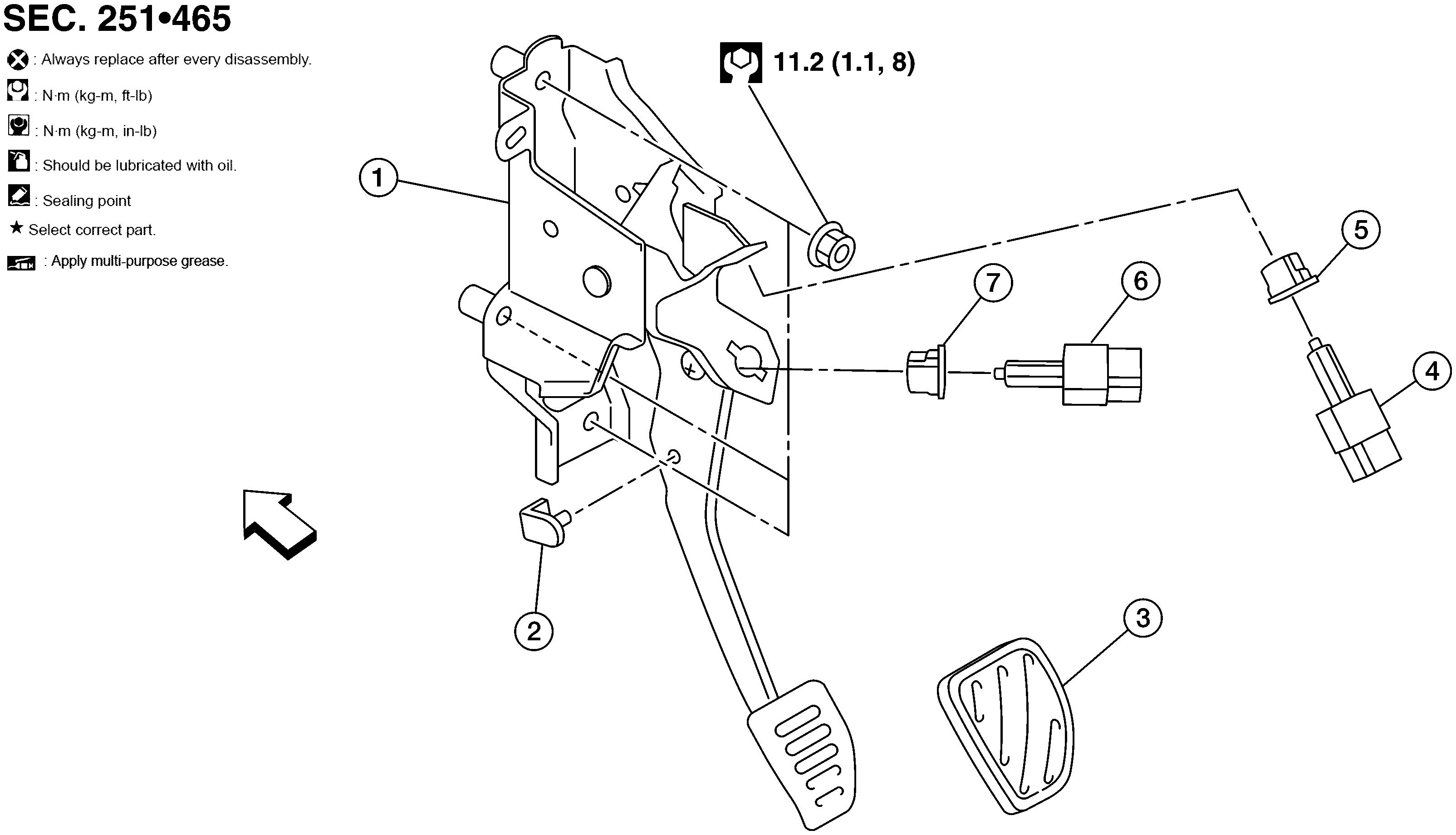

Fig 1: Exploded View Of Clutch Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clutch pedal	2.	Pedal stopper rubber	3.	Pedal pad
4.	Clutch interlock switch	5.	Clip	6.	Clutch pedal position switch (if equipped)
7.	Clip		Front
