Exploded View With Torque Specifications

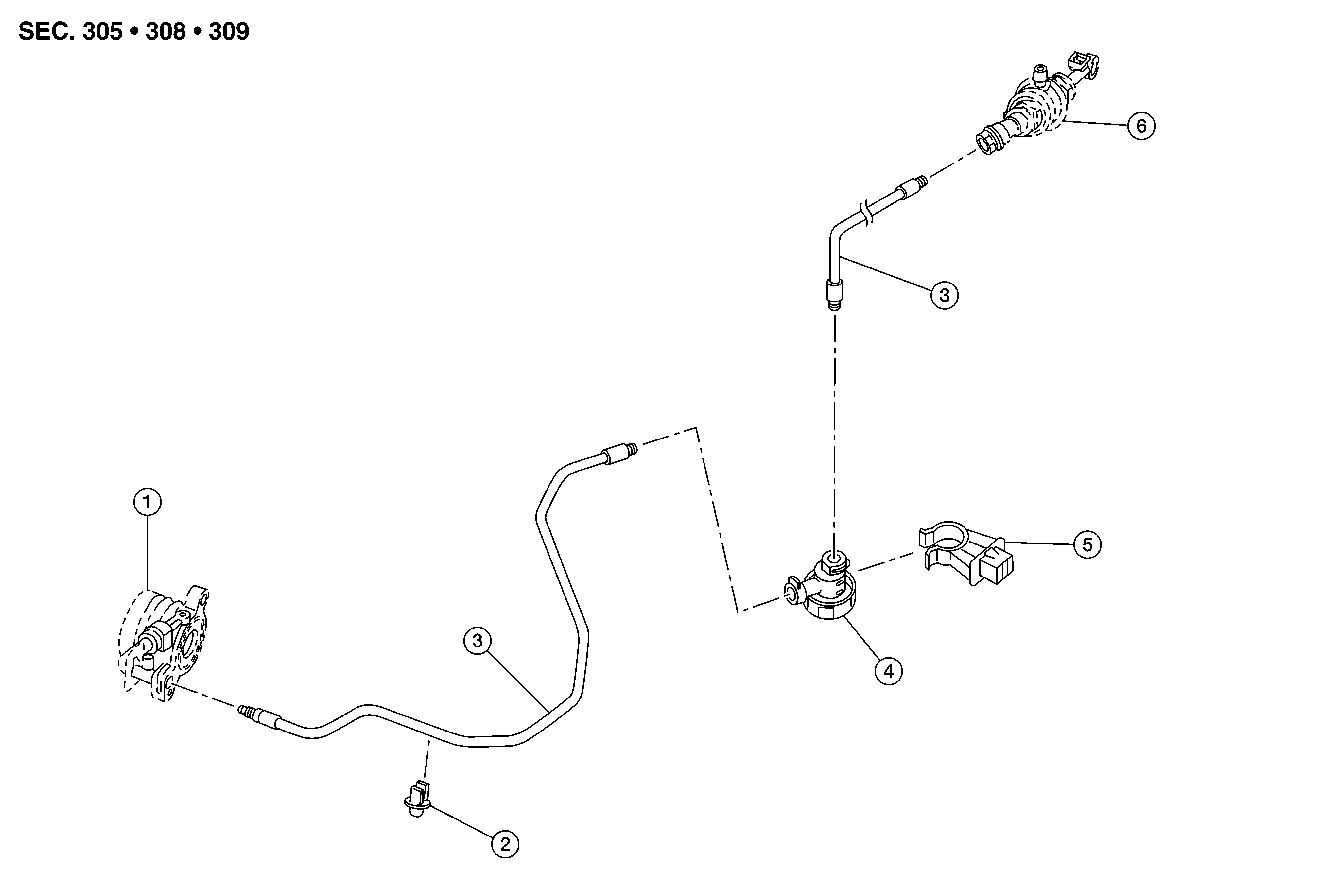

Fig 1: Exploded View Of Clutch Piping
GNSAWDIA1109ZZ-109Courtesy of NISSAN NORTH AMERICA, INC.
1. CSC (Concentric Slave Cylinder) 2. Clip 3. Clutch tube
4. Clutch damper 5. Bracket 6. Master cylinder
