| Number of speed |
5 |
| Synchromesh type |
Warner |

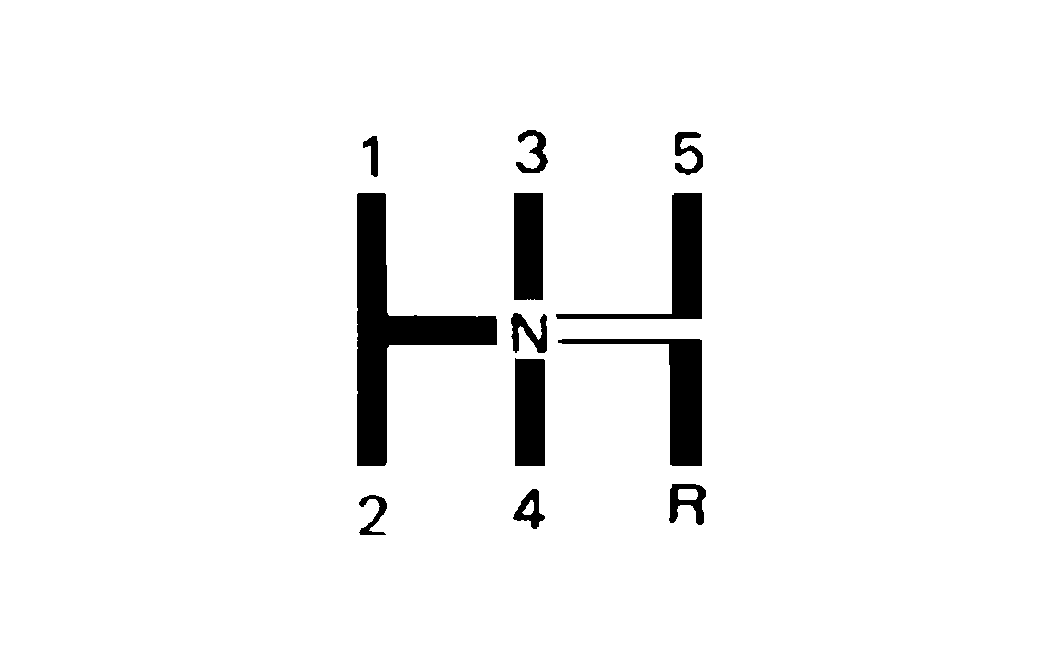

| Shift pattern |
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| Gear ratio |
1st |
3.7273 |
| 2nd |
2.0476 |
| 3rd |
1.3929 |
| 4th |
1.0294 |
| 5th |
0.8205 |
| Reverse |
3.5455 |
| Final gear |
4.0667 |
| Number of teeth |
Input gear |
1st |
11 |
| 2nd |
21 |
| 3rd |
28 |
| 4th |
34 |
| 5th |
39 |
| Reverse |
11 |
| Main gear |
1st |
41 |
| 2nd |
43 |
| 3rd |
39 |
| 4th |
35 |
| 5th |
32 |
| Reverse |
39 |
| Reverse idler gear |
26 |
| Final gear |
Final gear/Pinion |
61/15 |
| Side gear/Pinion mate gear |
13/9 |
| Gear oil capacity (Reference) |
(US pt, Imp pt) |
Approx. 2.67 (5-5/8, 4-3/4) |
| Remarks |
Reverse brake |
Installed |
| Double-cone synchronizer |
1st and 2nd |
| Speedometer drive gear |
Not installed |
