Final Drive

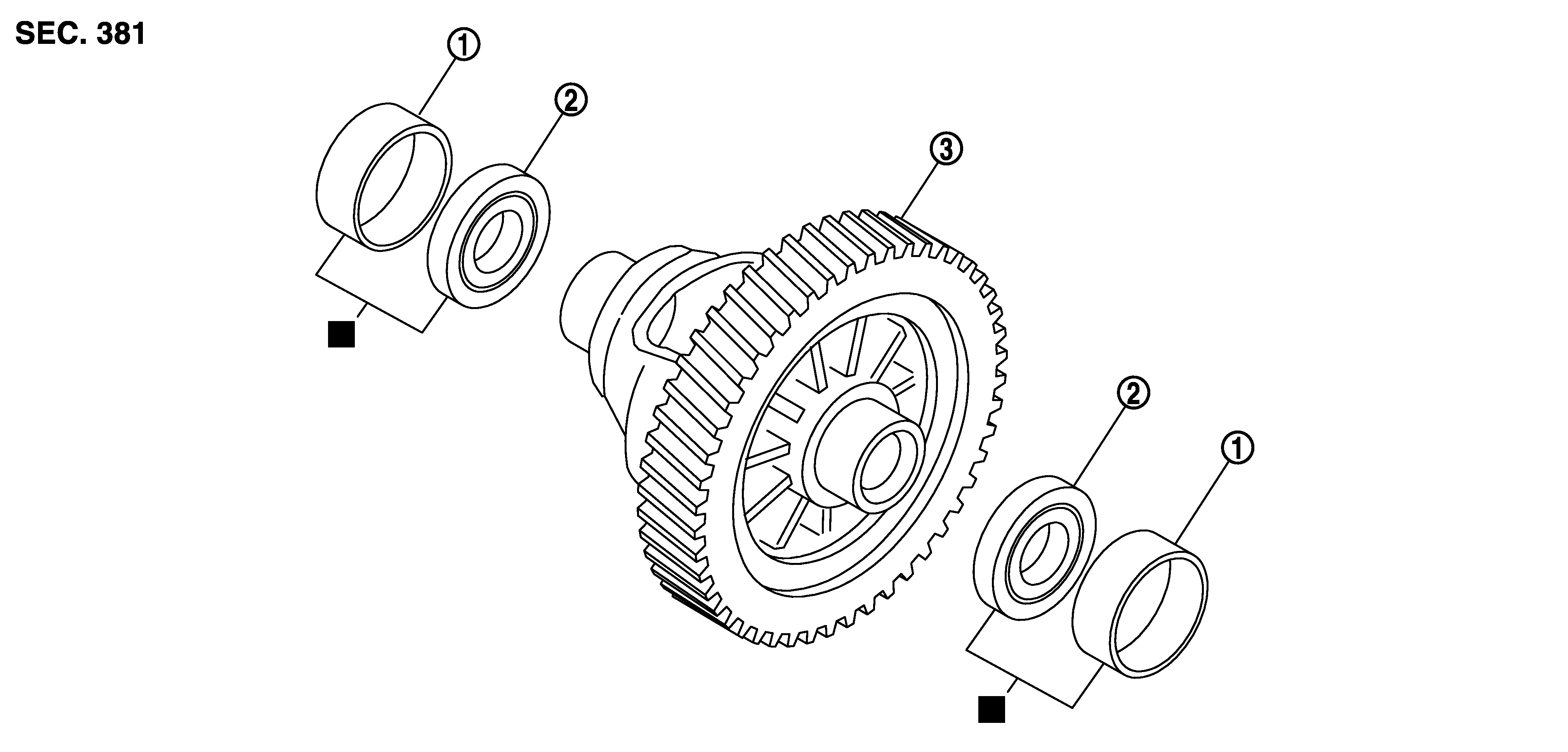

Fig 1: Exploded View Of Final Drive
GNSJPDIC0481ZZ-481Courtesy of NISSAN NORTH AMERICA, INC.
1. Differential side bearing outer race 2. Differential side bearing 3. Final drive
SHIKAKU-B : Replace the parts as a set.
