Shift Fork And Fork Rod

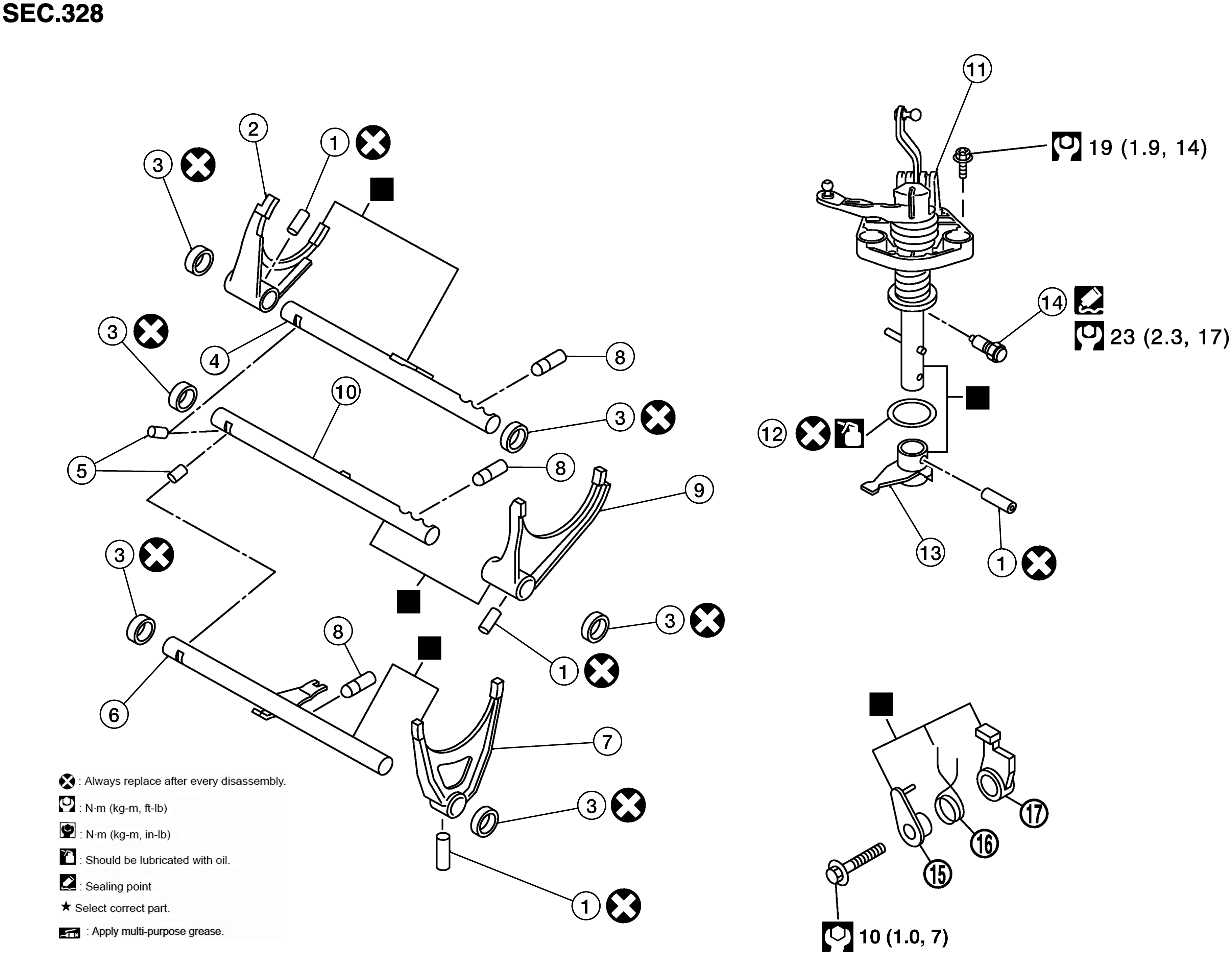

Fig 1: Exploded View Of Shift Fork And Fork Rod With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Retaining pin	2.	1st-2nd shift fork	3.	Bushing
4.	1st-2nd fork rod	5.	Lock pin	6.	5th-reverse fork rod
7.	5th-reverse shift fork	8.	Check ball	9.	3rd-4th shift fork
10.	3rd-4th fork rod	11.	Control shaft	12.	O-ring
13.	Selector	14.	Check ball plug	15.	Bushing
16.	Spring	17.	Gear catch
: Apply gear oil.
: Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Replace the parts as a set.
