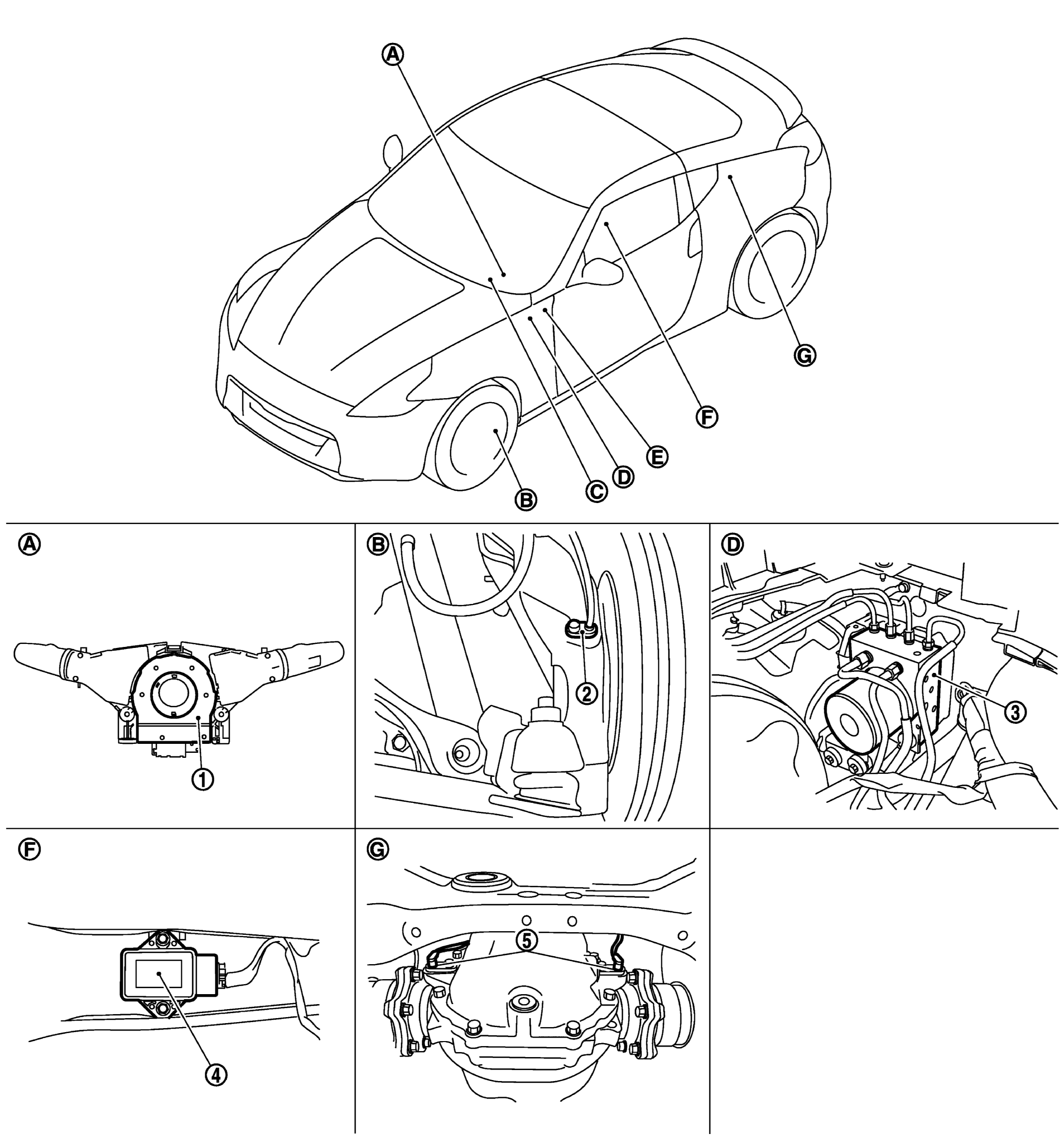

Component Location
| 1. | Steering angle sensor | 2. | Front wheel sensor | 3. | ABS actuator and electric unit (control unit) |
| 4. | Yaw rate/side G sensor | 5. | Rear wheel sensor | ||
| A. | Back of spiral cable assembly | B. | Steering knuckle | C. | ABS warning lamp, brake warning lamp, VDC OFF indicator lamp, VDC warning lamp: SYSTEM DESCRIPTION |
| D. | Inside brake master cylinder cover | E. | VDC OFF switch: EXPLODED VIEW WITH TORQUE SPECIFICATIONS | F. | Under center console |
| G. | Rear final drive assembly |
