Exploded View With Torque Specifications

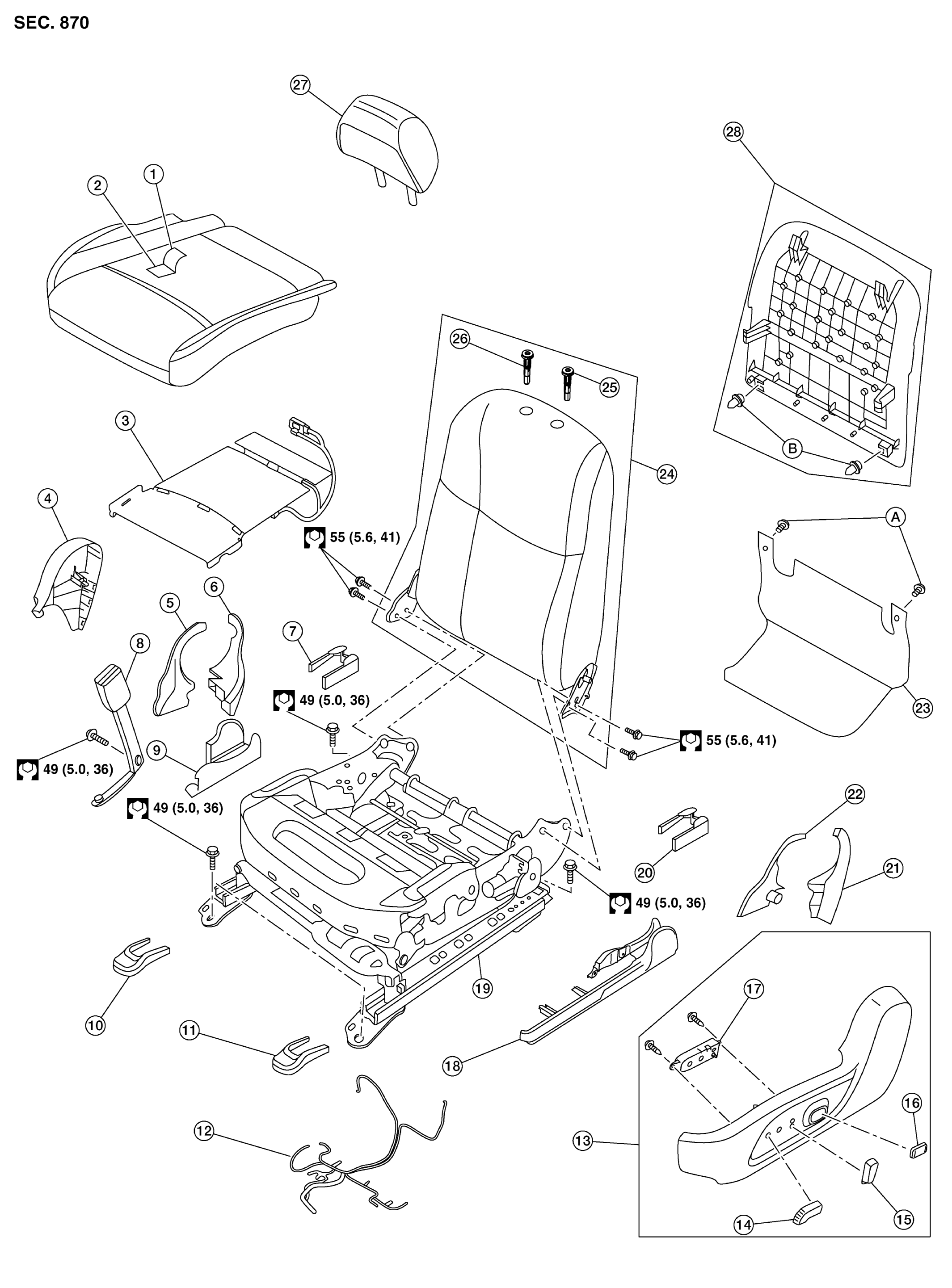

DRIVER SEAT - POWER
| 1. | Seat cushion trim | 2. | Seat cushion pad | 3. | Seat cushion heater (if equipped) |
| 4. | Seat cushion outer finisher (RH) | 5. | Seat cushion inner finisher (RH front) | 6. | Seat cushion inner finisher (RH rear) |
| 7. | Rear slide cover (RH) | 8. | Seat belt buckle | 9. | Slide cover (RH) |
| 10. | Front slide cover (RH) | 11. | Front slide cover (LH) | 12. | Seat harness |
| 13. | Seat cushion outer finisher (LH) | 14. | Seat slide knob | 15. | Seat recline knob |
| 16. | Lumbar support switch (if equipped) | 17. | Power seat switch | 18. | Slide cover (LH) |
| 19. | Seat cushion frame | 20. | Rear slide cover (LH) | 21. | Seat cushion inner finisher (LH rear) |
| 22. | Seat cushion inner finisher (LH front) | 23. | Rear hinge cover | 24. | Seatback assembly |
| 25. | Headrest holder (locked) | 26. | Headrest holder (free) | 27. | Headrest |
| 28. | Seatback board | A. | Rear hinge cover clips | B. | Seatback board clips |

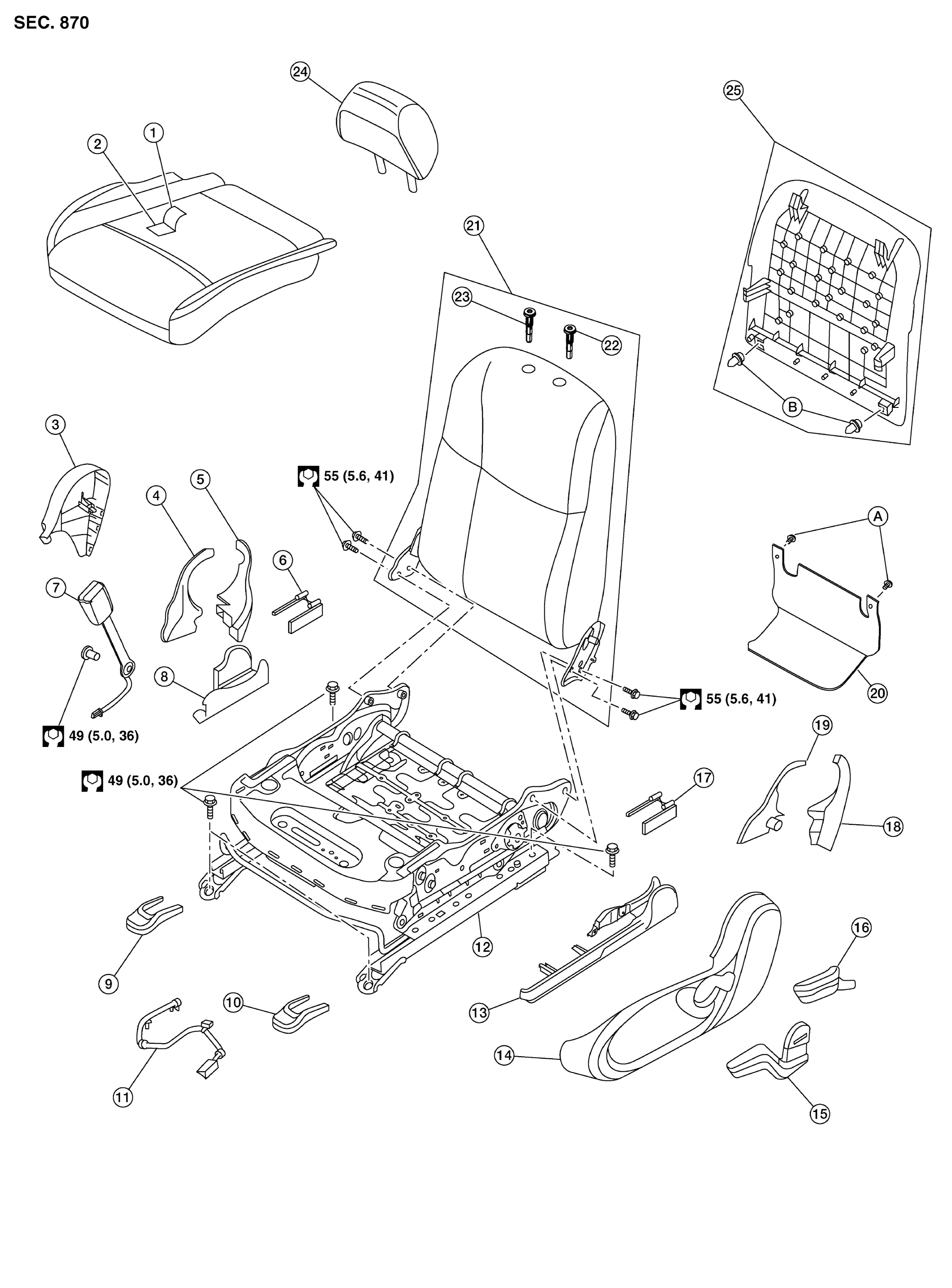

DRIVER SEAT - MANUAL
| 1. | Seat cushion trim | 2. | Seat cushion pad | 3. | Seat cushion outer finisher (RH) |
| 4. | Seat cushion inner finisher (RH front) | 5. | Seat cushion inner finisher (RH rear) | 6. | Rear slide cover (RH) |
| 7. | Seat belt buckle | 8. | Slide cover (RH) | 9. | Front slide cover (RH) |
| 10. | Front slide cover (LH) | 11. | Seat harness | 12. | Seat cushion frame |
| 13. | Slide cover (LH) | 14. | Seat cushion outer finisher (LH) | 15. | Lift lever |
| 16. | Recline lever | 17. | Rear slide cover (LH) | 18. | Seat cushion inner finisher (LH rear) |
| 19. | Seat cushion inner finisher (LH front) | 20. | Rear hinge cover | 21. | Seatback assembly |
| 22. | Headrest holder (locked) | 23. | Headrest holder (free) | 24. | Headrest |
| 25. | Seatback board | A. | Rear hinge cover clips | B. | Seatback board clips |
