Exploded View

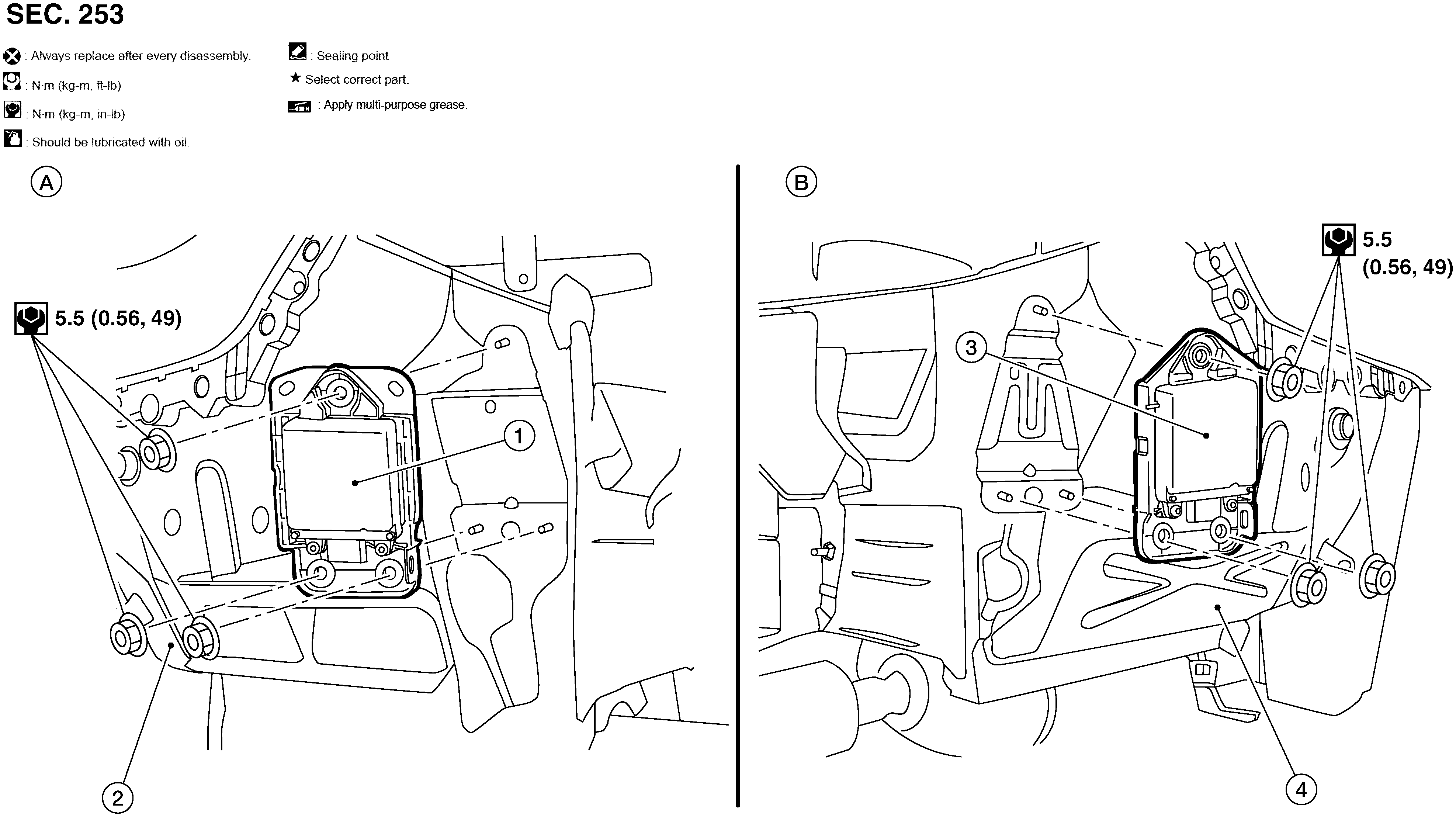

Fig 1: SIDE RADAR With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side radar (LH)	2.	Rear fender (LH)	3.	Side radar (RH)
4.	Rear fender (RH)	A.	LH side	B.	RH side
