Exploded View With Torque Specifications

MANUAL ANTI-DAZZLING

GNSAWLIA2177ZZ-177Courtesy of NISSAN NORTH AMERICA, INC.
1. Windshield glass 2. Mirror base 3. Inside mirror

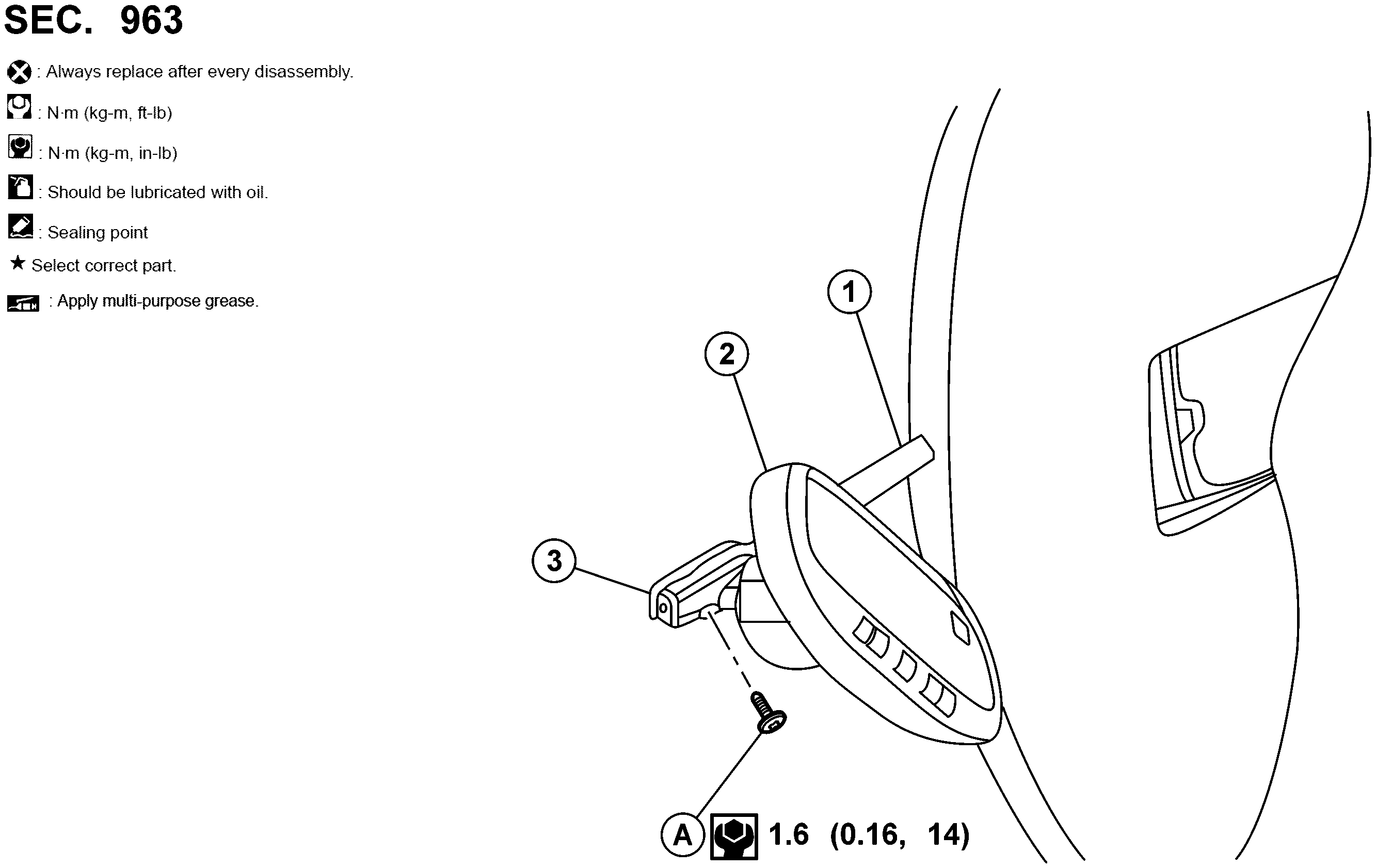

AUTO ANTI-DAZZLING

GNSALLIA1157ZZ-157Courtesy of NISSAN NORTH AMERICA, INC.
1. Inside mirror finisher 2. Inside mirror 3. Mirror base
A. Screw
