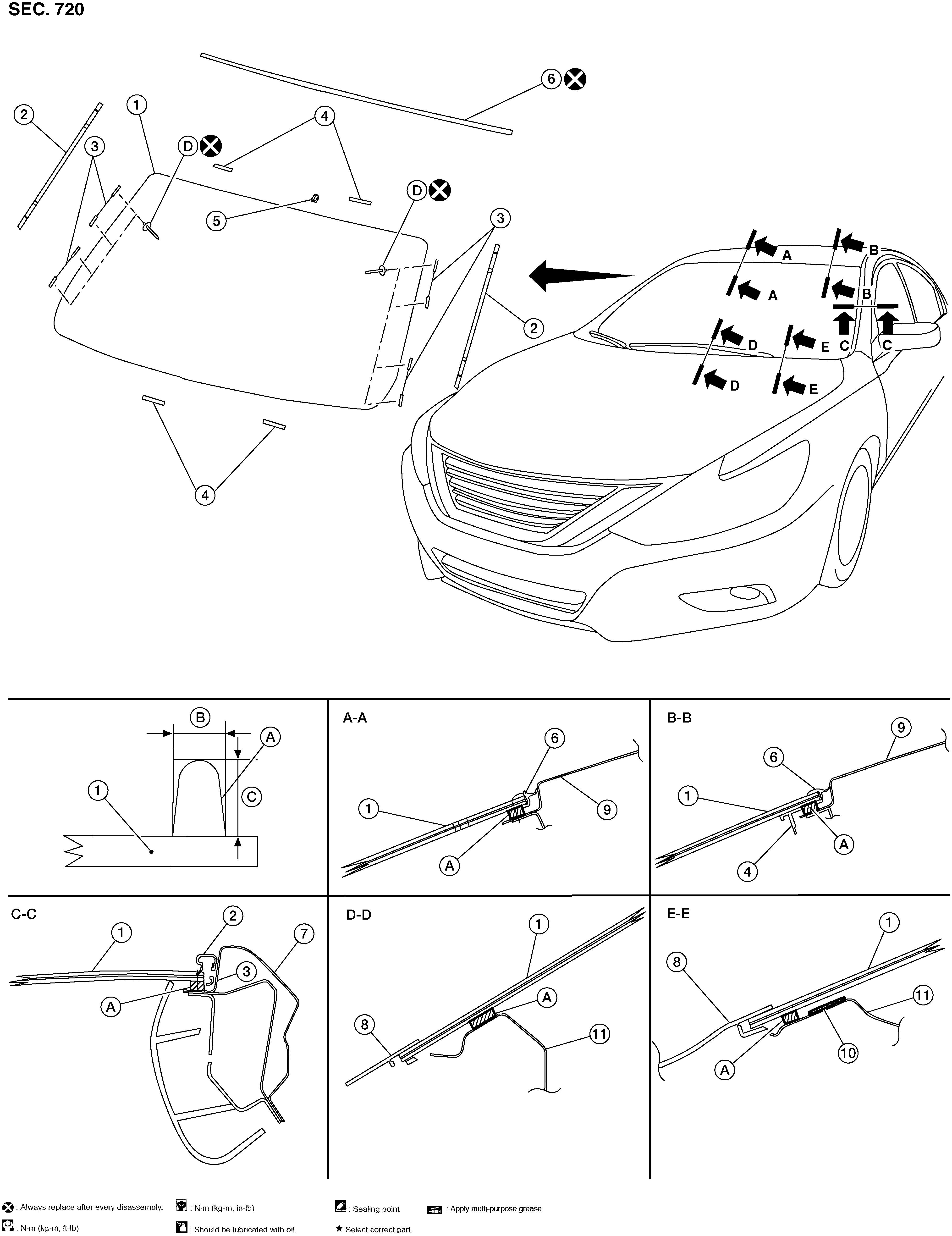

Exploded View With Torque Specifications
| 1. | Windshield glass | 2. | Windshield glass side trim molding | 3. | Side trim molding fastener |
| 4. | Spacer | 5. | Inside mirror base | 6. | Windshield glass upper molding |
| 7. | Front pillar outer panel | 8. | Cowl top cover | 9. | Roof panel |
| 10. | Identification number | 11. | Cowl top | A. | Adhesive |
| B. | 7.0 +2 mm (0.3 +0.1 in) | C. | 12.0 +2 mm (0.5 +0.1 in) | D. | Rivet |
