Exploded View

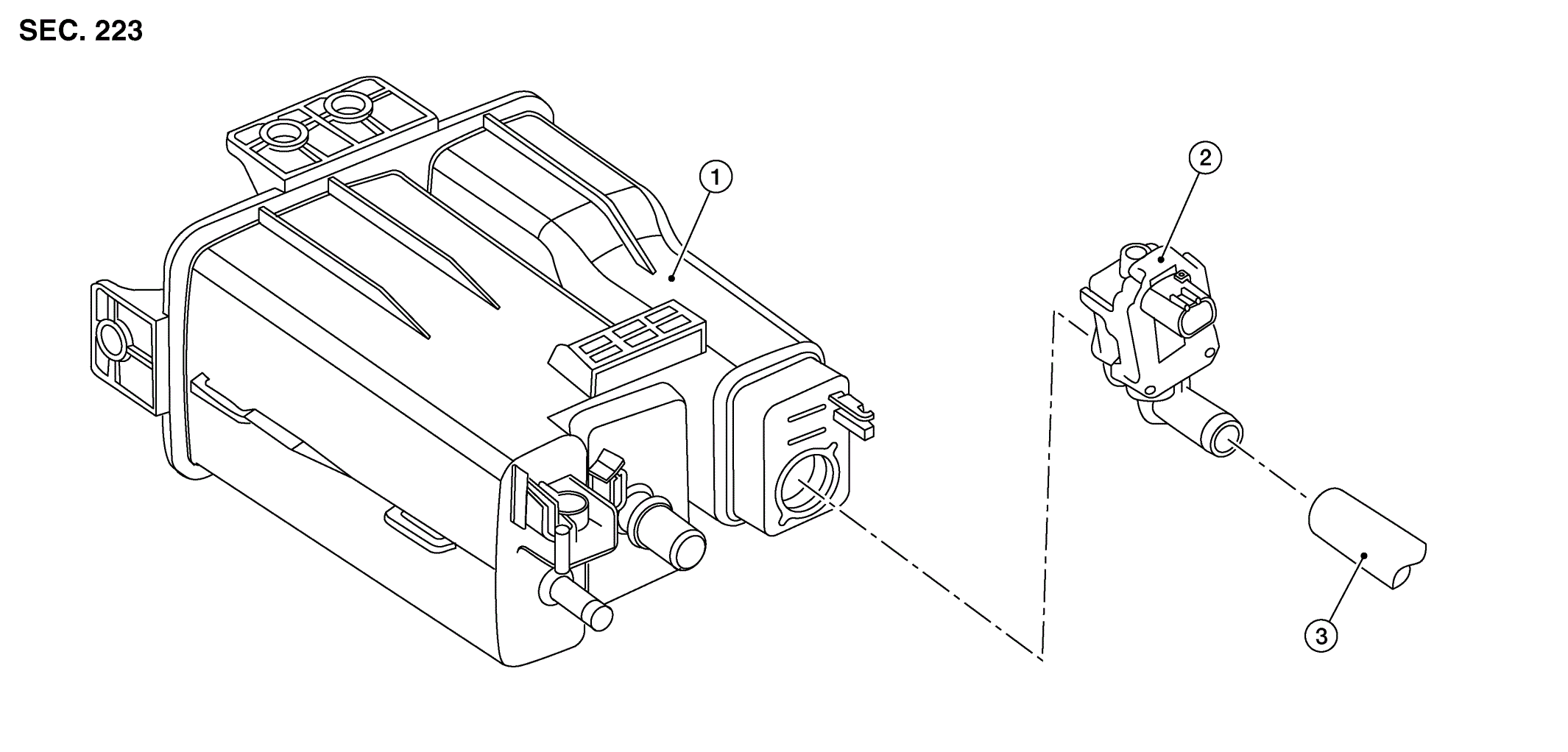

GNSAWBIA2936ZZ-936Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister 2. EVAP canister vent control valve 3. EVAP canister vent control valve hose
