Removal And Installation: Removal
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before replacing ADAS control unit, perform "Before Replace ECU" of "Read / Write Configuration" to save or print current vehicle specification. Refer to DESCRIPTION .
- Remove the center console assembly. Refer to REMOVAL AND INSTALLATION .
- Disconnect the harness connector from ADAS control unit

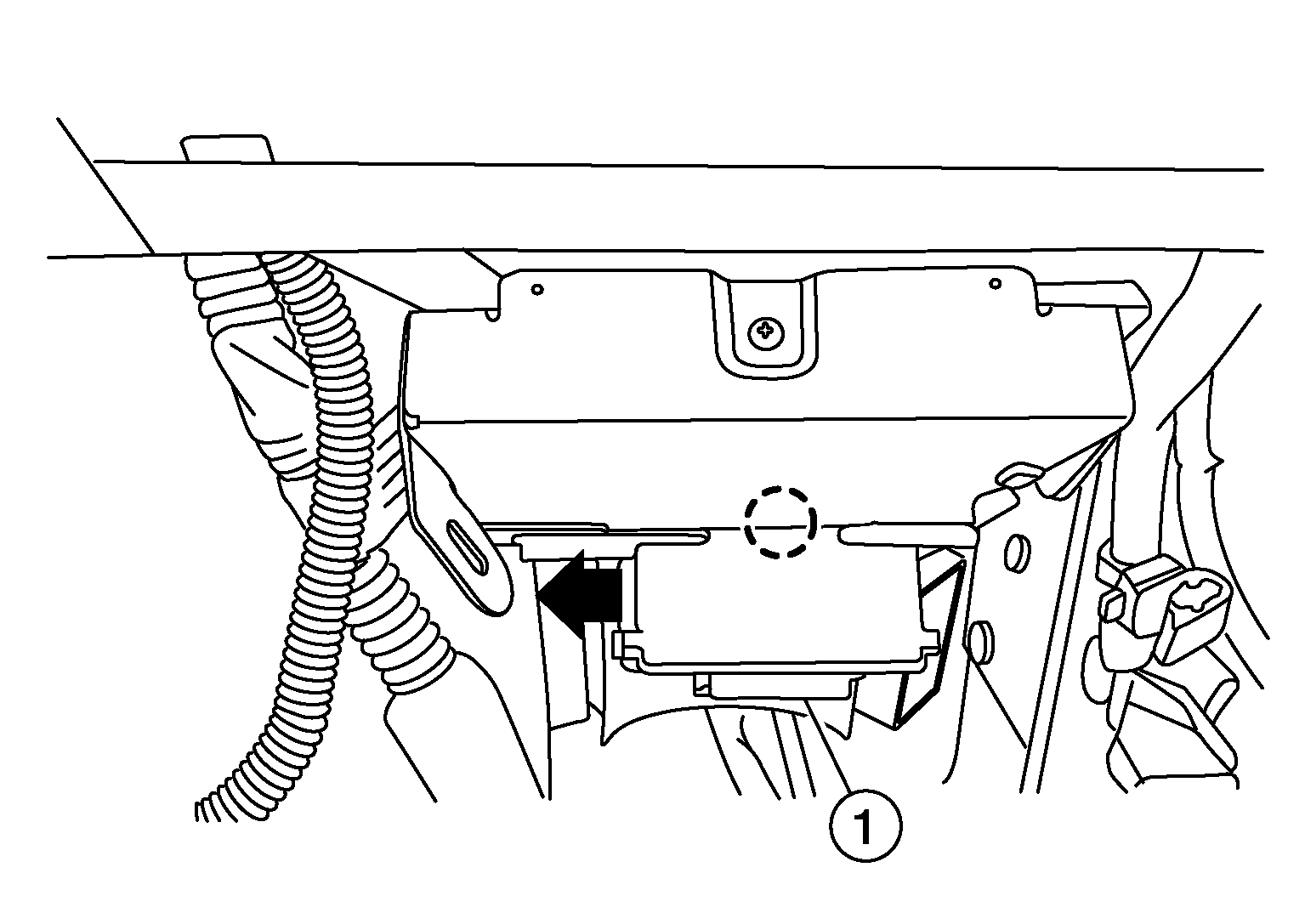

- Release the pawl and remove the ADAS control unit (1) in the direction as shown
.
: Pawl
