Component Parts Location

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

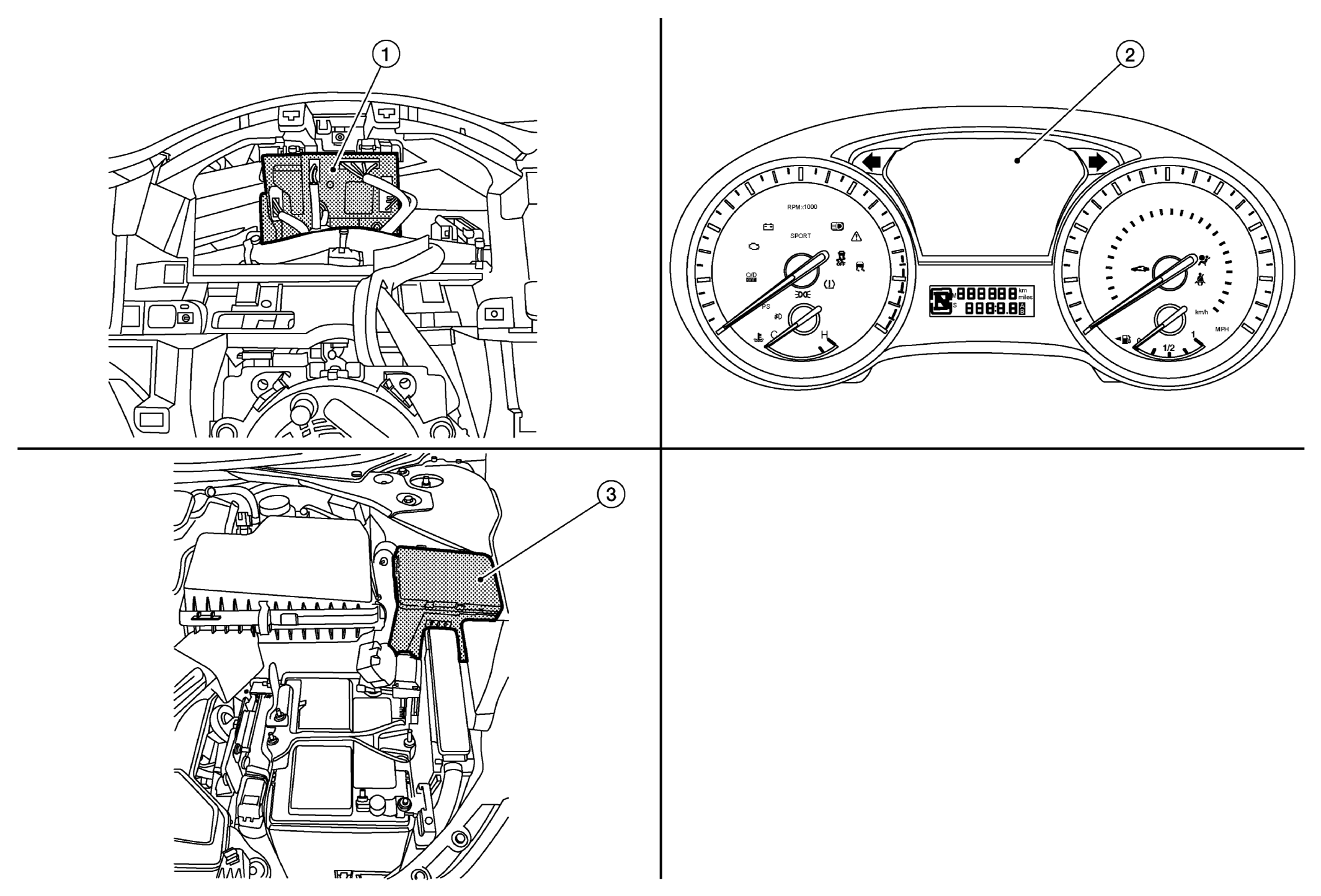

Fig 1: Power Consumption Control System Component Parts Location
GNSAWMIA1748ZZ-748Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with combination meter removed) 2. Combination meter 3. IPDM E/R
