Component Location

WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

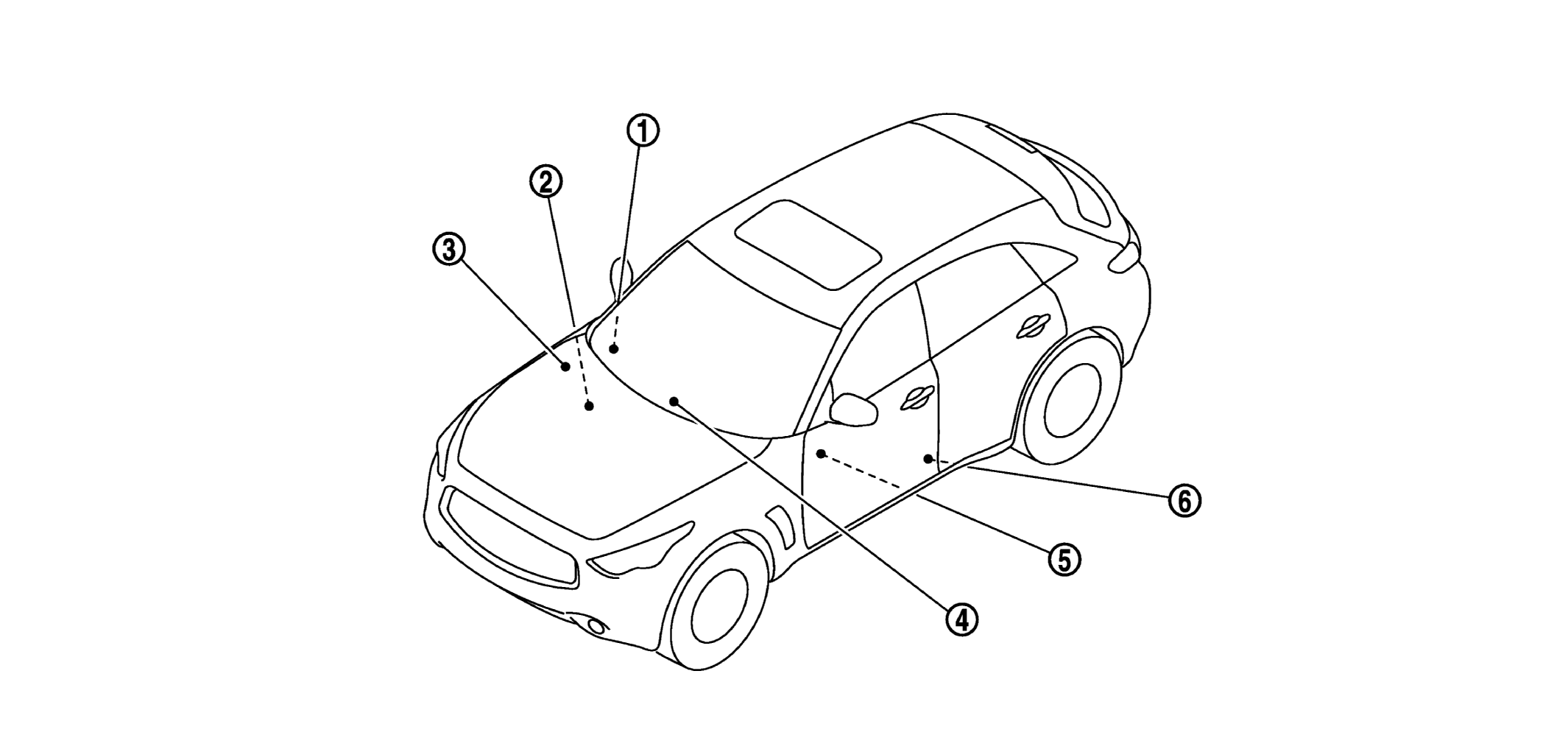

1.	CAN gateway Refer to COMPONENT LOCATION .	2.	BCM Refer to COMPONENT LOCATION .	3.	IPDM E/R Refer to COMPONENT LOCATION .
4.	Unified meter and A/C amp. Refer to COMPONENT LOCATION .	5.	Driver seat control unit Refer to COMPONENT LOCATION .	6.	Pre-crash seat belt control unit Refer to COMPONENT LOCATION .
