Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

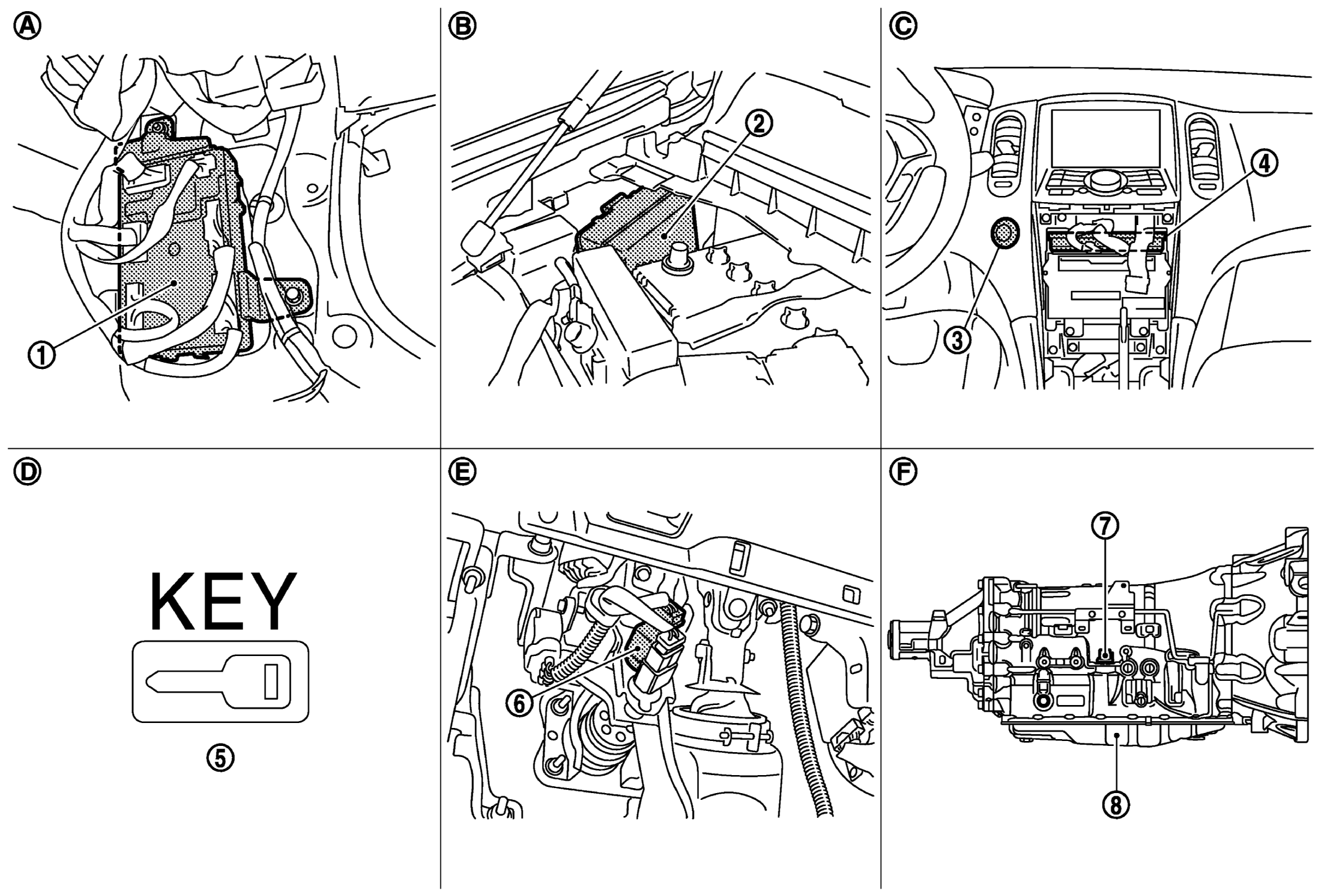

| 1. | BCM M118, M119, M121, M122, M123 | 2. | IPDM E/R E5, E6, F7 | 3. | Push button ignition switch M50 |
| 4. | Unified meter and A/C amp. M66, M67 | 5. | Key warning lamp (Combination meter M53) | 6. | Stop lamp switch E110 |
| 7. | A/T assembly connector F51 | 8. | TCM (built in A/T assembly) F151 | ||
| A. | Dash side lower (passenger side) | B. | Engine room dash panel (RH) | C. | View with the cluster lid C removed |
| D. | Located on the combination meter | E. | Behind the instrument assist lower panel | F. | A/T assembly |
