Component Location

WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

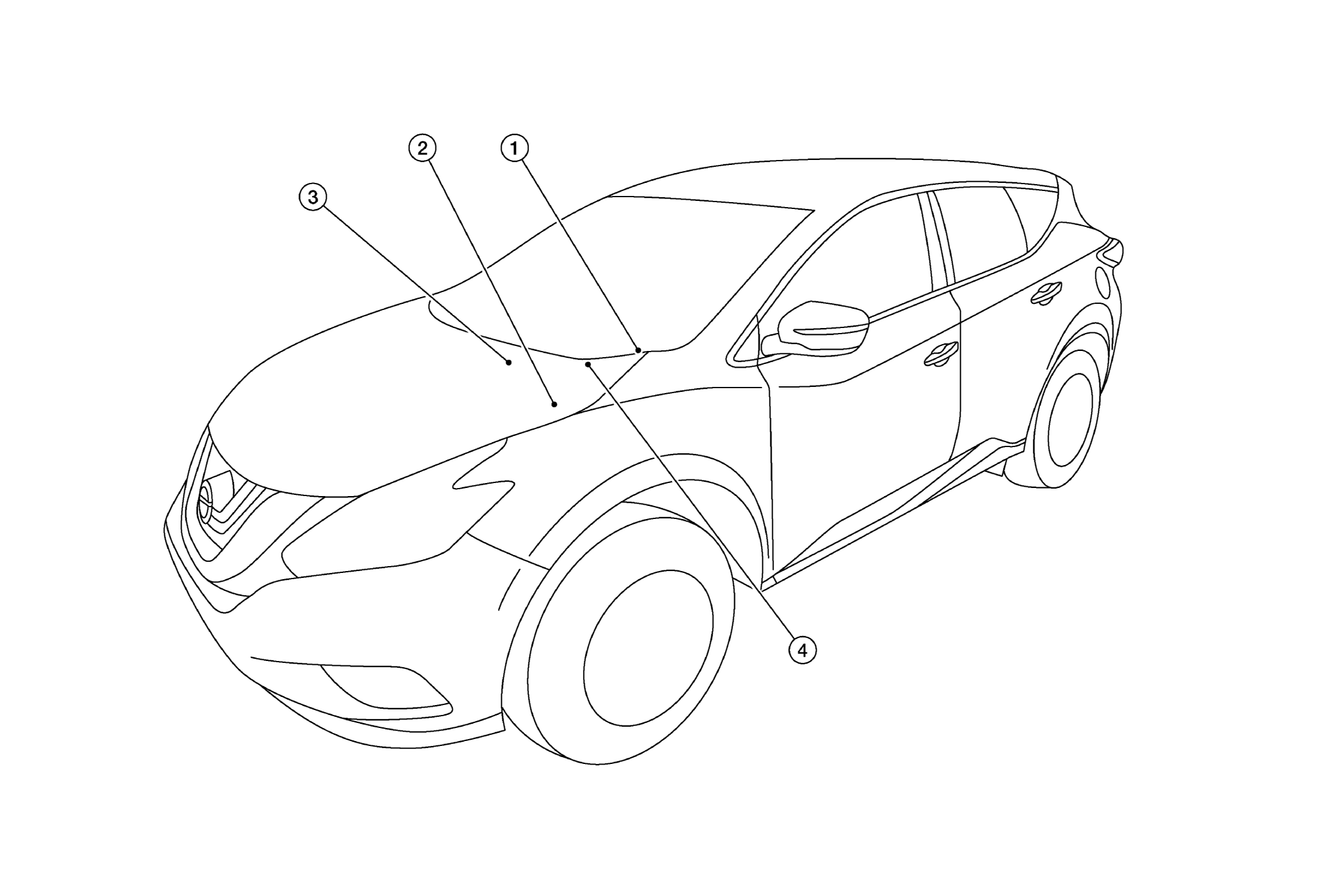

1.	Combination meter Refer to COMPONENT LOCATION .	2.	IPDM E/R Refer to COMPONENT LOCATION .	3.	CAN gateway Refer to COMPONENT LOCATION .
4.	BCM Refer to COMPONENT LOCATION .
