Component Location
WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

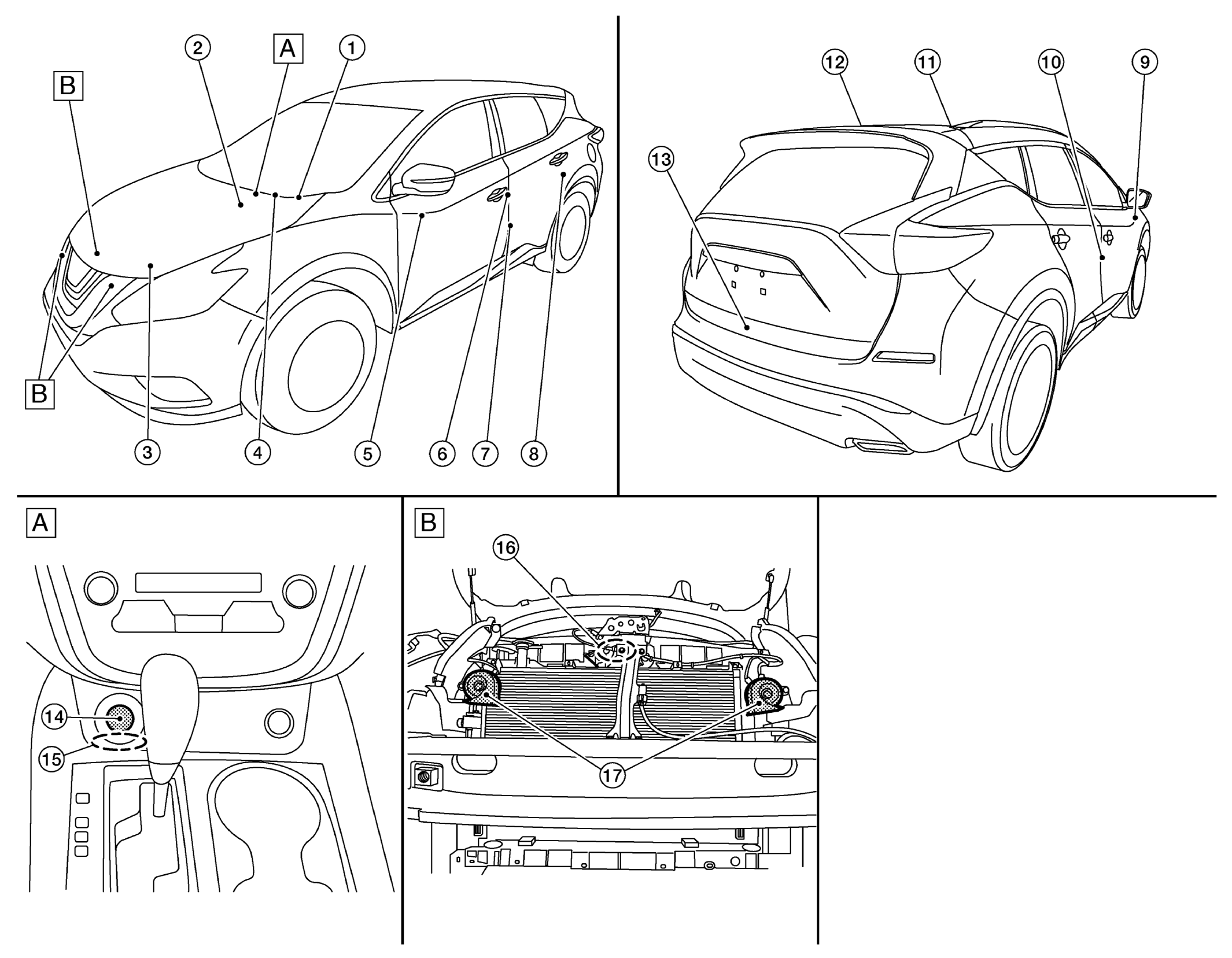

| A. | View of center console. | B. | View with front bumper fascia removed. |
| No. | Component | Function |
|---|---|---|
| 1. | Combination meter | Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS) ] is on board. Refer to COMPONENT LOCATION . |
| 2. | Inside key antenna (instrument center) | Inside key antenna (instrument center) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA (INSTRUMENT CENTER) . |
| 3. | Transmission range switch | The transmission range switch detects the selector lever position. Refer to TRANSMISSION RANGE SWITCH . |
| 4. | BCM | BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS) ] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna, and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to COMPONENT LOCATION for detailed installation location. |
| 5. | Main power window and door lock/unlock switch | Door lock and unlock switch is integrated into the power window main switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH . |
| 6. | Front door lock assembly LH | Door key cylinder switch is integrated into front door lock assembly (driver side). Door key cylinder switch detects door LOCK/UNLOCK operation using mechanical key, and then transmits the operation signal to BCM. Refer to FRONT DOOR LOCK ASSEMBLY (LH) . |
| 7. | Front door switch LH | Front door switch LH transmits door open/closed signal to the BCM. |
| 8. | Rear door switch LH | Rear door switch LH transmits door open/closed signal to the BCM. |
| 9. | Remote keyless entry receiver | Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to REMOTE KEYLESS ENTRY RECEIVER . |
| 10. | Front door switch RH | Door switch detects door open/close condition and then transmits ON/OFF signal to BCM. |
| 11. | Inside key antenna (console) | Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA (CONSOLE) . |
| 12. | Inside key antenna (luggage room) | Inside key antenna (luggage room) detects whether Intelligent Key is inside the vehicle or not, and then transmits the signal to the BCM. Refer to INSIDE KEY ANTENNA (CONSOLE) . |
| 13. | Back door lock assembly | Back door lock actuator locks/unlocks the back door latch assembly. |
| 14. | Push-button ignition switch | Push-button ignition switch has push switch inside which detects that push-button ignition switch is pressed and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated. |
| 15. | NATS antenna amp. | NATS ANTENNA AMP. |
| 16. | Hood switch | Hood switch transmits hood open/closed signal to the IPDM E/R. Refer to OUTSIDE KEY ANTENNA (REAR BUMPER) . |
| 17. | Horns | IPDM E/R energizes the horns when the security system is activated. |
