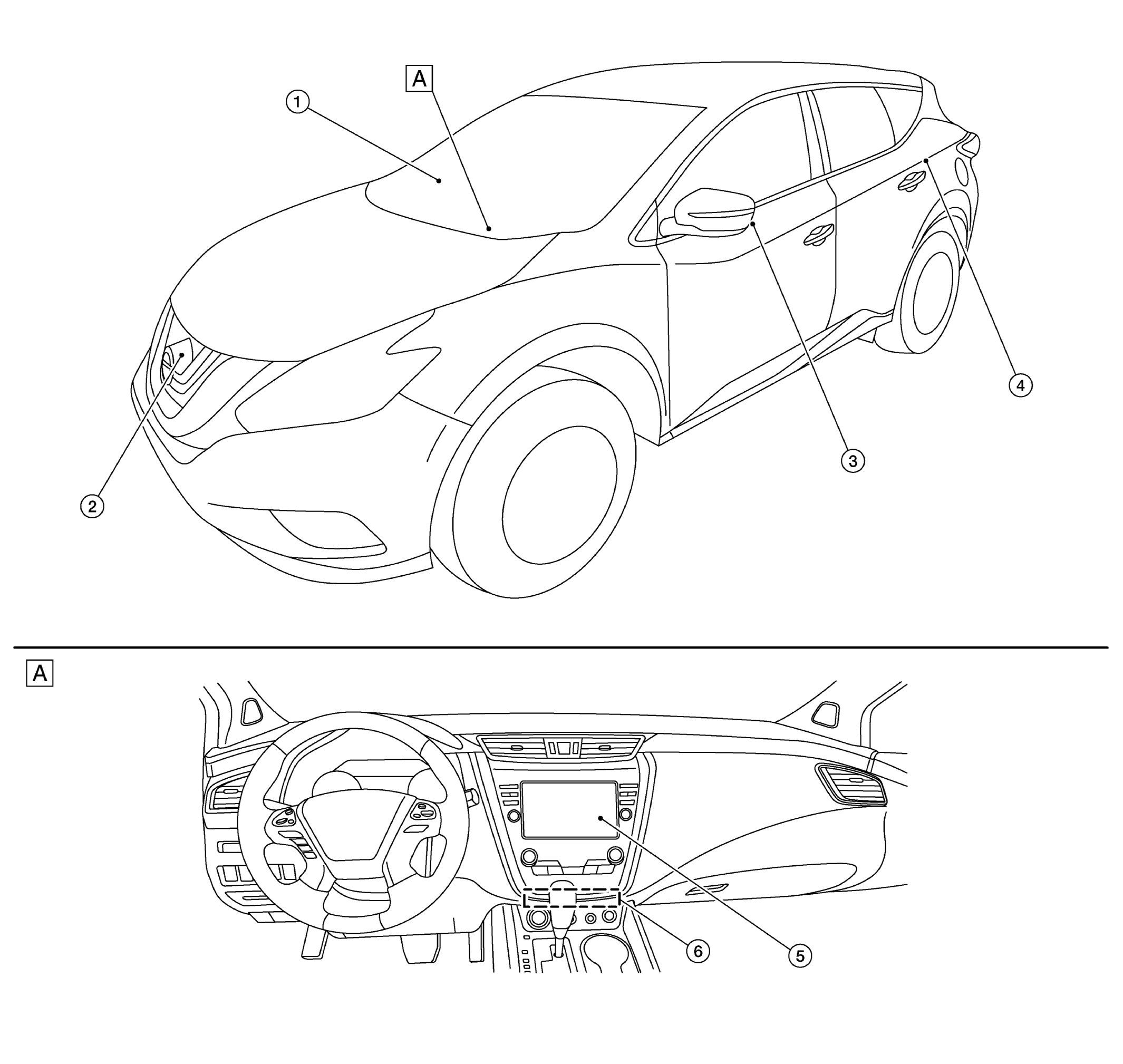

Component Location
WARNING: This page is about a different car, the 2017 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| A. | View of instrument panel |
| No. | Component | Function |
|---|---|---|
| 1. | Door mirror RH | Refer to SIDE CAMERA . |
| 2. | Front camera | Refer to FRONT CAMERA . |
| 3. | Door mirror LH | Refer to SIDE CAMERA . |
| 4. | Rear view camera | Refer to REAR CAMERA . |
| 5. | AV control unit | Refer to AV CONTROL UNIT . |
| 6. | Around view monitor control unit | Refer to AROUND VIEW MONITOR CONTROL UNIT . |
