Steering Column Assembly

Check each part of steering column assembly for damage or other malfunctions. Replace entire steering column assembly if any parts are damaged.

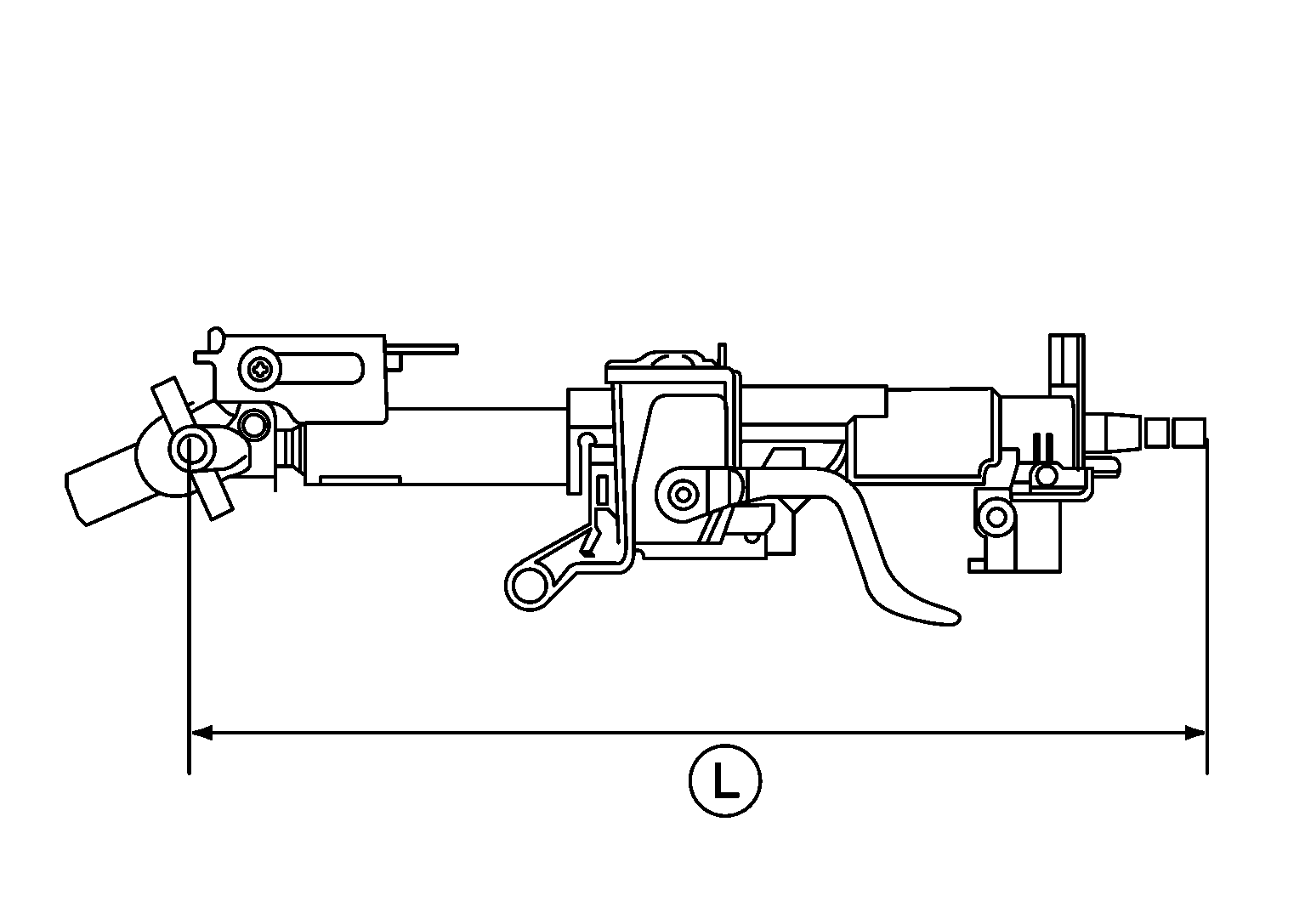

Measure the length (L) as shown if vehicle has been involved in a minor collision. Replace steering column assembly if outside the specifications.

Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (L) : Refer to STEERING COLUMN .
Measure steering column rotating torque using suitable tool. Replace steering column assembly if outside the standard.

Rotating torque : Refer to STEERING COLUMN .

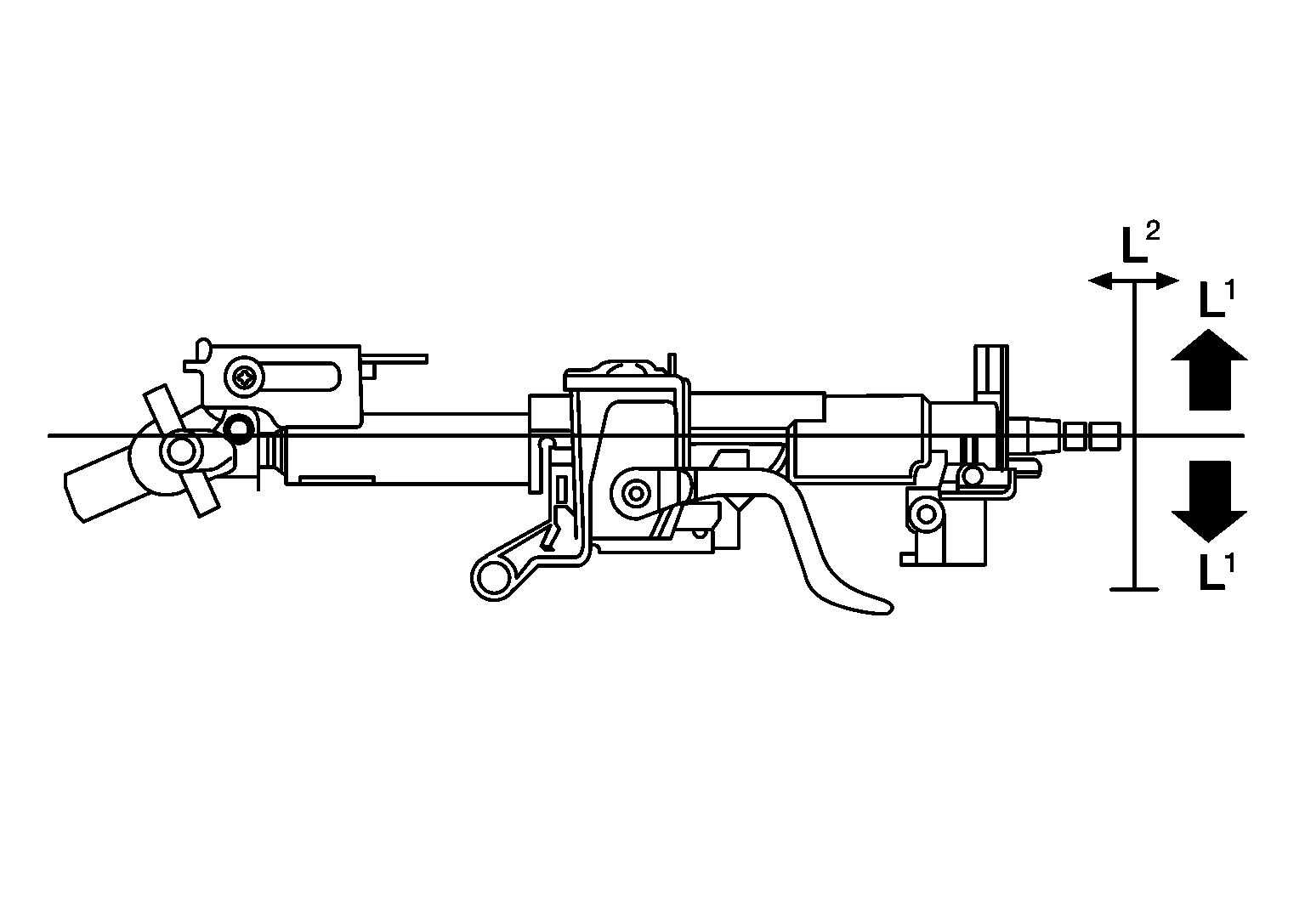

Check tilt and telescopic mechanism operating range (L¹ ), (L² ) as shown below.

Courtesy of NISSAN NORTH AMERICA, INC.

Tilt operating range (L¹ )	: Refer to STEERING COLUMN .
Telescopic operating range (L² )	: Refer to STEERING COLUMN .
