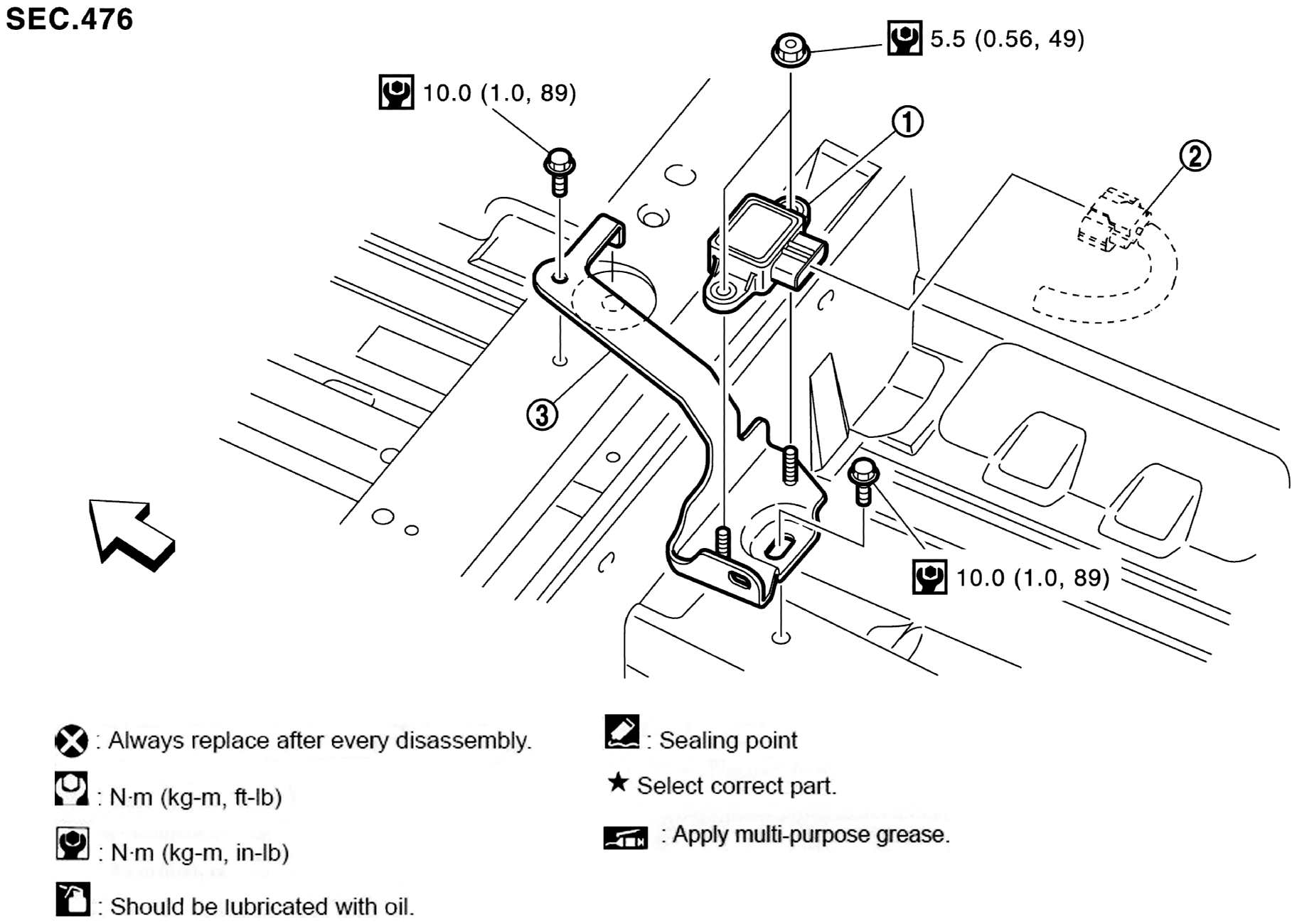

Exploded View

GNSJSFIA0544GB-544Courtesy of NISSAN NORTH AMERICA, INC.
1. Yaw rate/side/decel G sensor 2. Yaw rate/side/decel G sensor harness connector 3. Bracket
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
