Engine Room Compartment

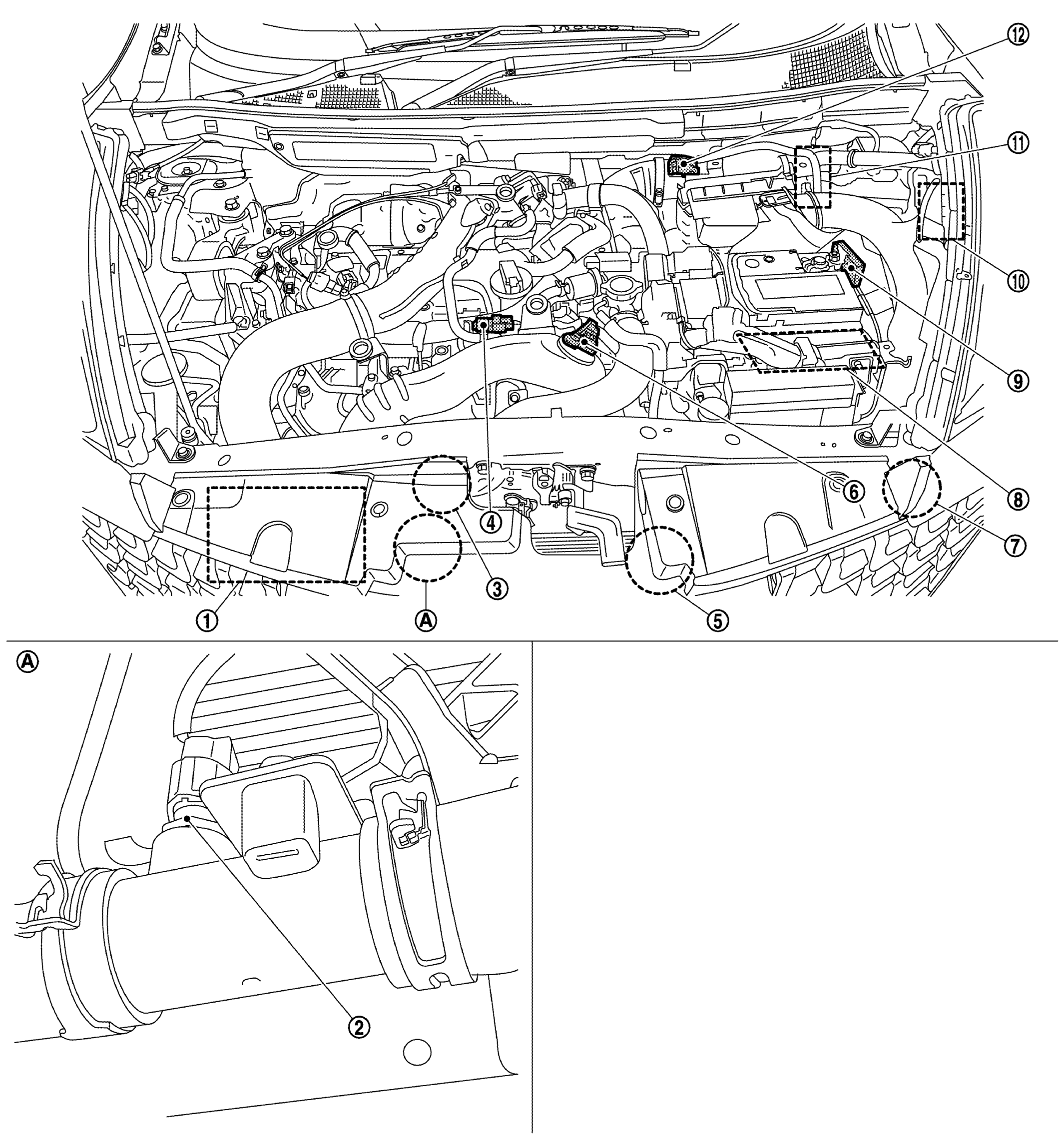

GNSJSBIA6007ZZ-007Courtesy of NISSAN NORTH AMERICA, INC.
1. Inter cooler 2. Engine coolant temperature sensor 2 3. Cooling fan control module
4. EVAP canister purge volume control solenoid valve 5. Cooling fan motor 6. Turbocharger boost sensor
7. Refrigerant pressure sensor 8. ECM 9. Battery current sensor
10. IPDM E/R 11. TCM 12. Mass air flow sensor
