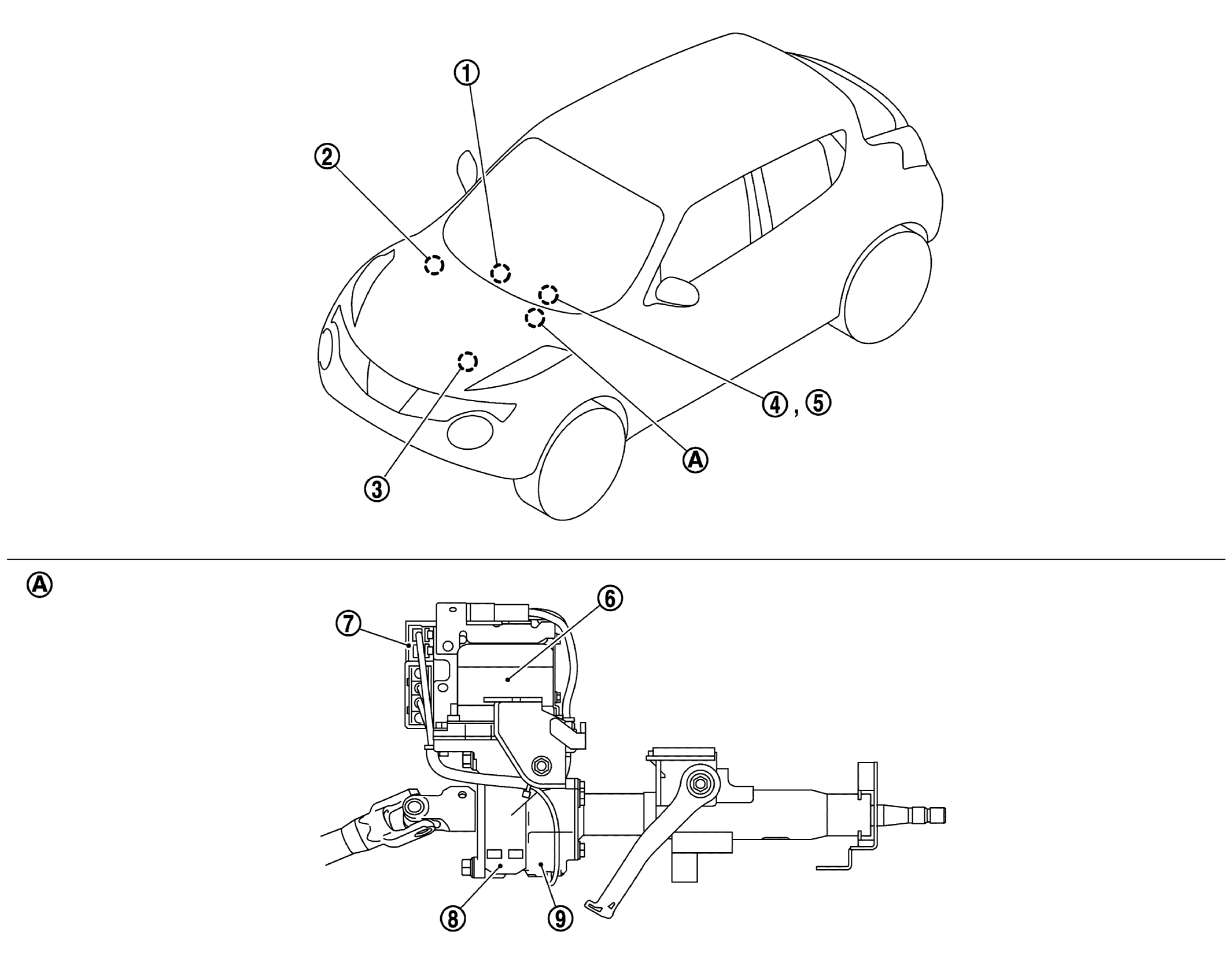

Component Location
| 1. | Multi display unit* Refer to COMPONENT LOCATION . |
2. | ABS actuator and electric unit (control unit) Refer to COMPONENT LOCATION |
3. | ECM Refer to COMPONENT LOCATION (For NISMO RS), COMPONENT LOCATION (Except for NISMO RS) |
| 4. | Combination meter Refer to COMPONENT LOCATION . |
5. | EPS warning lamp (In combination meter) |
6. | EPS motor |
| 7. | EPS control unit | 8. | Reduction gear | 9. | Torque sensor |
| A. | Steering column assembly |
* : Models with Integrated Control System
