Exploded View With Torque Specifications: Disassembly

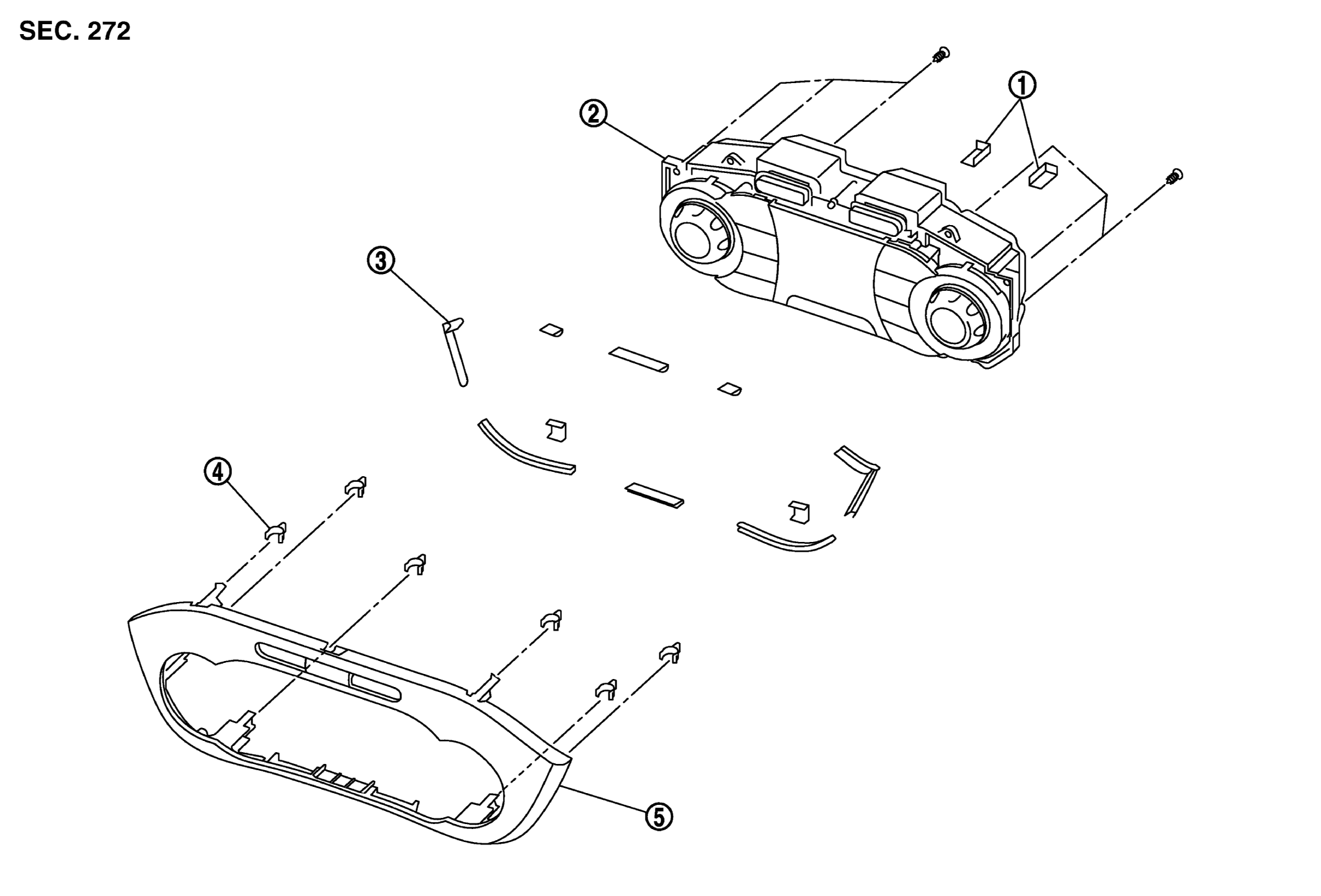

GNSJPNIA1860ZZ-860Courtesy of NISSAN NORTH AMERICA, INC.
1. Silencer tape 2. Multi display unit 3. Silencer tape
4. Clip 5. Control finisher
