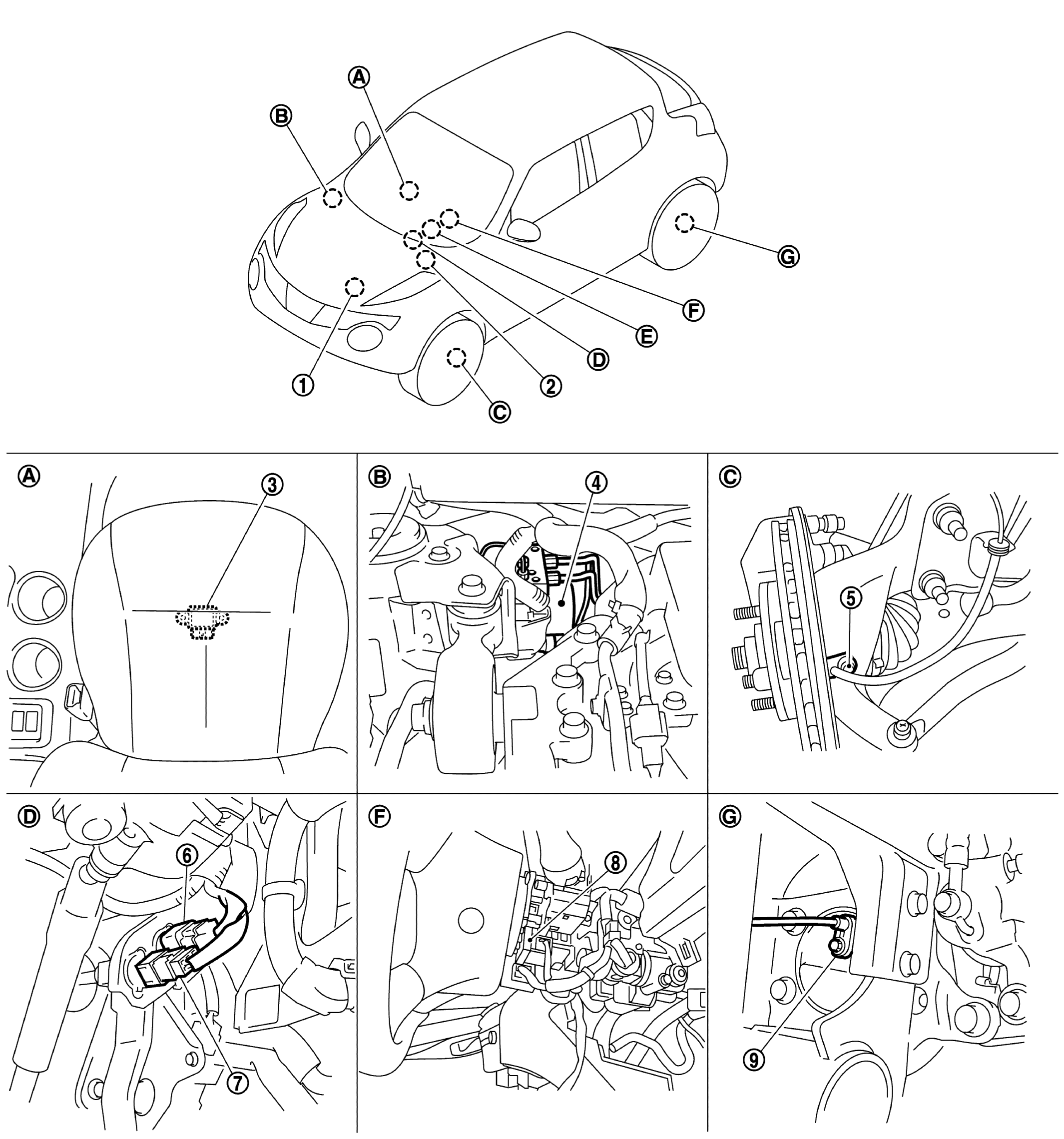

Component Location: 2WD
| 1. | ECM Refer to COMPONENT LOCATION . |
2. | TCM* Refer to COMPONENT LOCATION . |
3. | Yaw rate/side/decel G sensor |
| 4. | ABS actuator and electric unit (control unit) | 5. | Front wheel sensor | 6. | Stop lamp switch |
| 7. | Brake pedal position switch | 8. | Steering angle sensor | 9. | Rear wheel sensor |
| A. | Under floor carpet (front seat right side) | B. | Inside engine room | C. | Steering knuckle |
| D. | Brake pedal | E. | ABS warning lamp, brake warning lamp, VDC warning lamp, VDC OFF indicator lamp (in combination meter) | F. | Back of spiral cable assembly |
| G. | Rear wheel hub and bearing assembly |
* : Models with CVT
