Exploded View

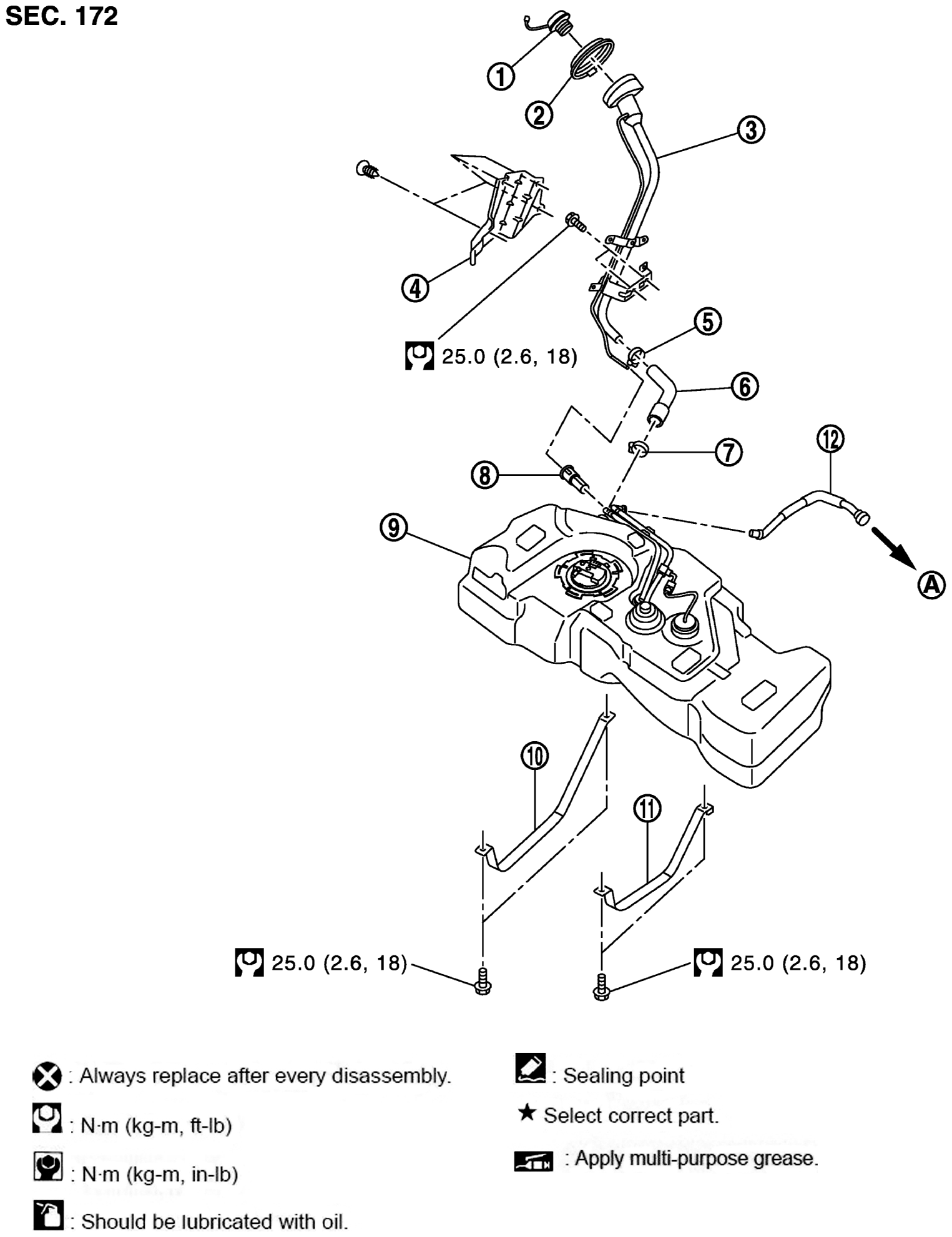

Fig 1: Fuel Tank 2WD With Torque Specifications

GNSJPBIA2894GB-894

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filler cap	2.	Grommet	3.	Fuel filler tube
4.	Cover	5.	Clamp	6.	Fuel filler hose
7.	Clamp	8.	EVAP canister protector	9.	Fuel tank
10.	Fuel tank mounting band (RH)	11.	Fuel tank mounting band (LH)	12.	Vent tube
A.	To EVAP canister
: N•m (kg-m, ft-lb)
