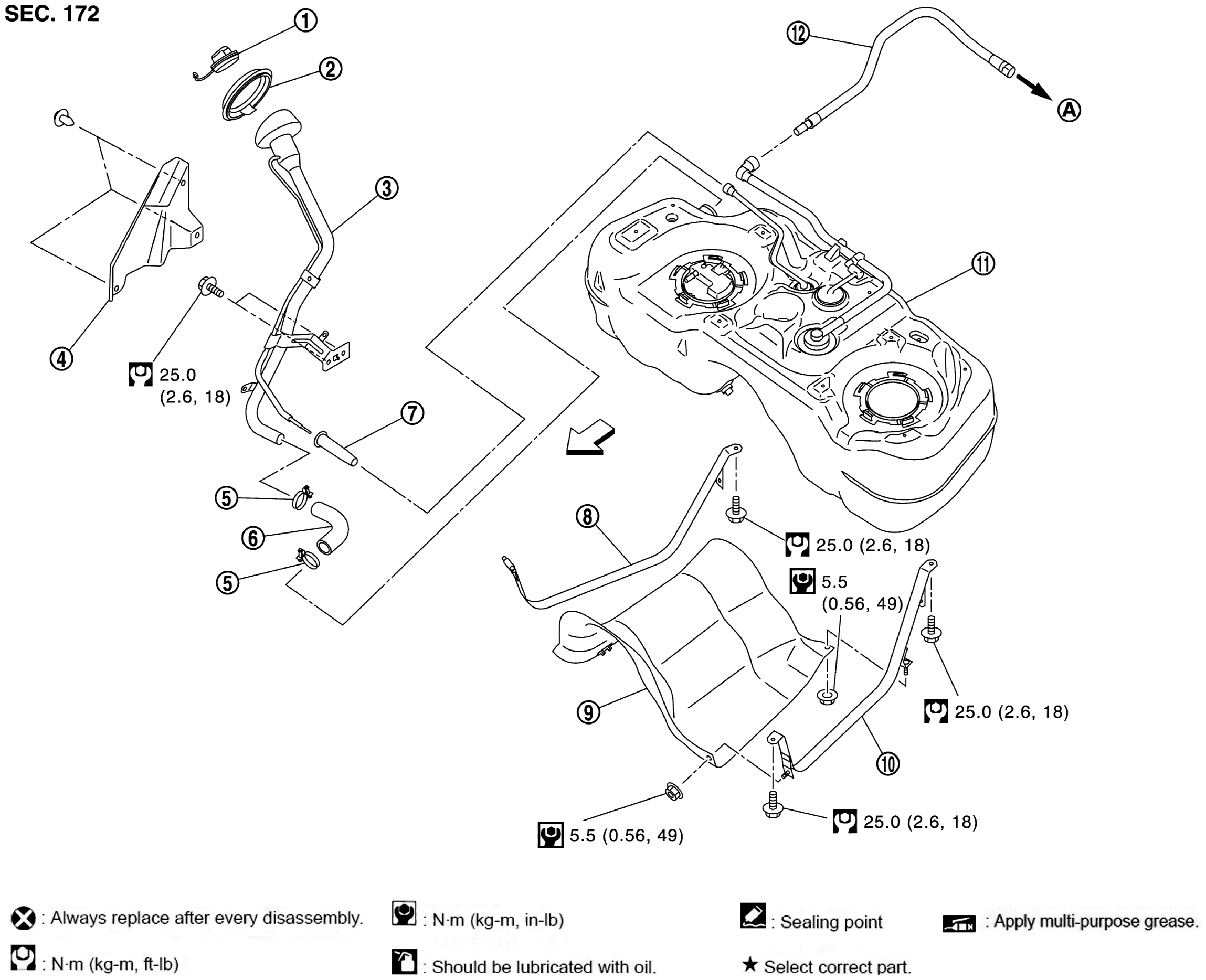

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Fuel filler cap |
2. |
Grommet |
3. |
Fuel filler tube |
| 4. |
Cover |
5. |
Clamp |
6. |
Fuel filler hose |
| 7. |
EVAP hose protector |
8. |
Fuel tank band (RH) |
9. |
Protector |
| 10. |
Fuel tank band (LH) |
11. |
Fuel tank |
12. |
Vent tube |
| A. |
To EVAP canister |
|
|
|
|
 |
Vehicle front |
|
|
|
|
: N•m (kg-m, ft-lb) |
: N•m (kg-m, in-lb) |
