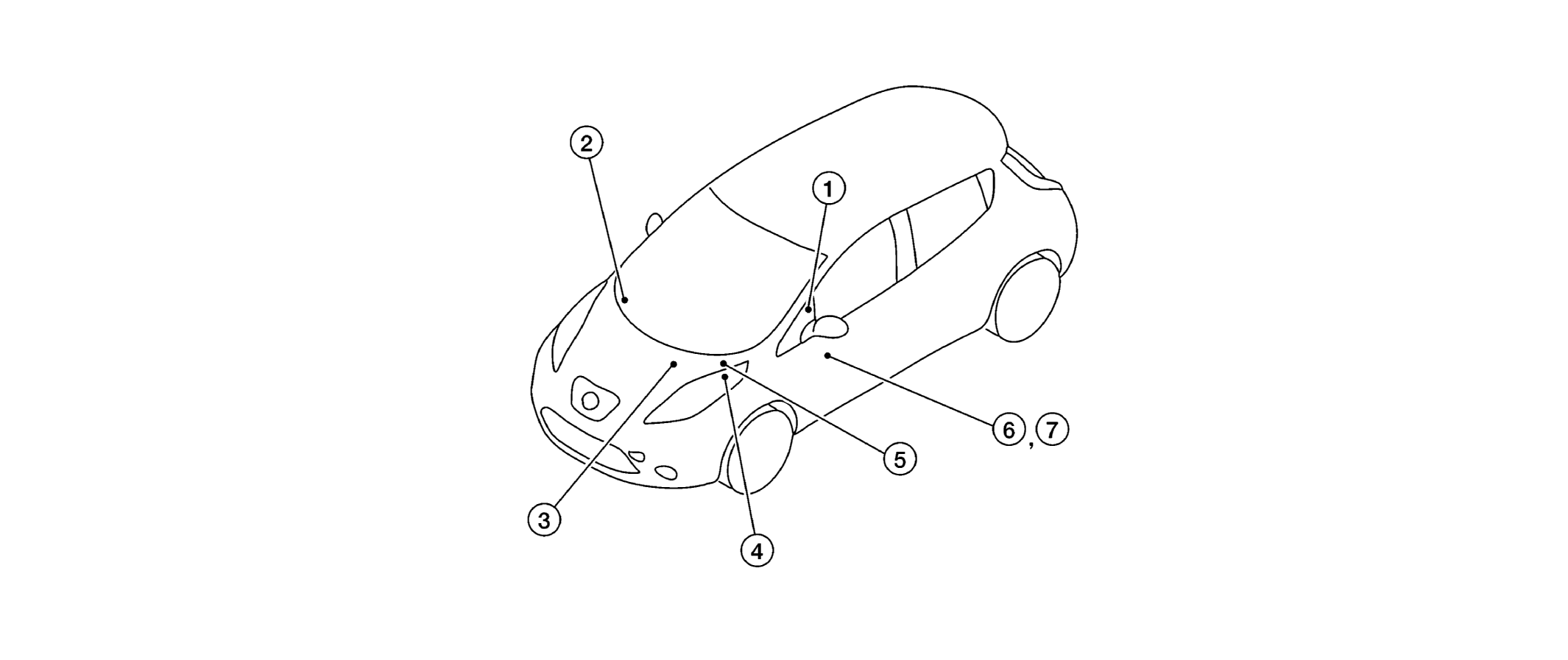

| 1. |
Electric shift sensor |
Electric shift sensor transmits shift signals to VCM. VCM then transmits P position signal and P/N position signal to BCM.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 2. |
BCM |
- BCM controls power distribution system.
- BCM judges power supply position by power switch (push switch) and vehicle condition
- BCM checks the power supply position internally.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 3. |
Power switch |
Refer to POWER SWITCH . |
| 4. |
IPDM E/R |
- IPDM E/R detects power switch (push switch) status, and transmits power switch (push switch) status signal (CAN) to BCM.
- IPDM E/R receives ignition relay-1 control signal and power switch ON signal (CAN) from BCM, and controls ignition relay-1.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 5. |
Stop lamp switch |
Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM.
Refer to COMPONENT LOCATION
for detailed installation location. |
| 6. |
Accessory relay |
- Accessory relay is controlled by BCM.
- Accessory relay supplies the accessory power supply or the power switch ACC signal to each ECU when power switch is turned to ACC or ON.
- BCM compares status of accessory relay control signal, and power supply position judged by BCM.
|
| 7. |
Ignition relay-2 |
- Ignition relay-2 is controlled by BCM.
- Ignition relay-2 supplies the power switch ON power supply or the power switch ON signal to each ECU when power switch is turned ON.
- BCM compares status of ignition relay-2 control signal and power supply position judged by BCM.
|
