Removal And Installation: Removal

  1. Remove the NATS antenna amp. Refer to REMOVAL AND INSTALLATION .
  2. Remove the power switch (1).
    1. Release the power switch pawls.

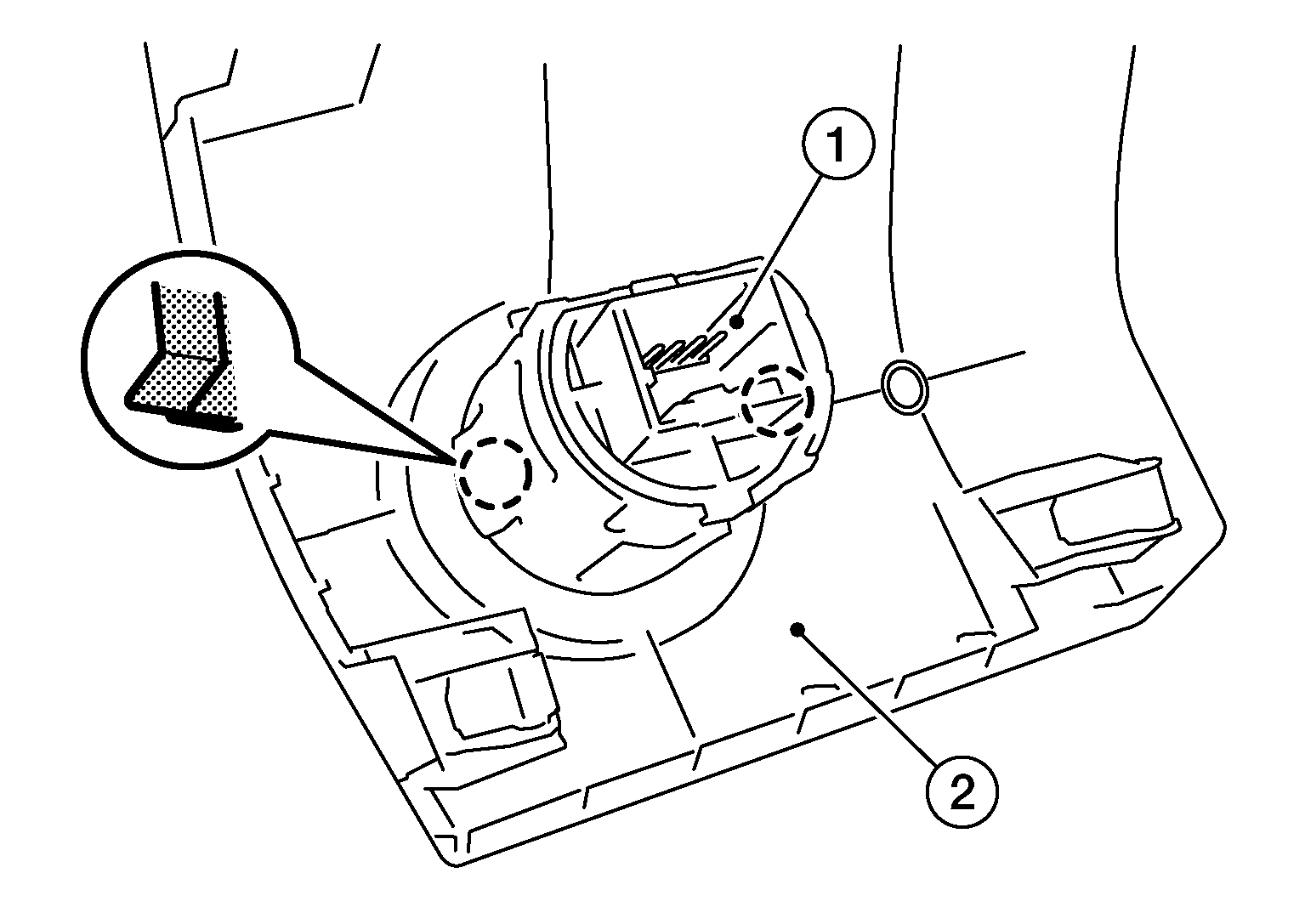

      GNSAWKIA3681ZZ-681Courtesy of NISSAN NORTH AMERICA, INC.
    2. Press the power switch to remove it from instrument lower panel LH (2).
      MARU-H : Pawl
