Exploded View With Torque Specifications

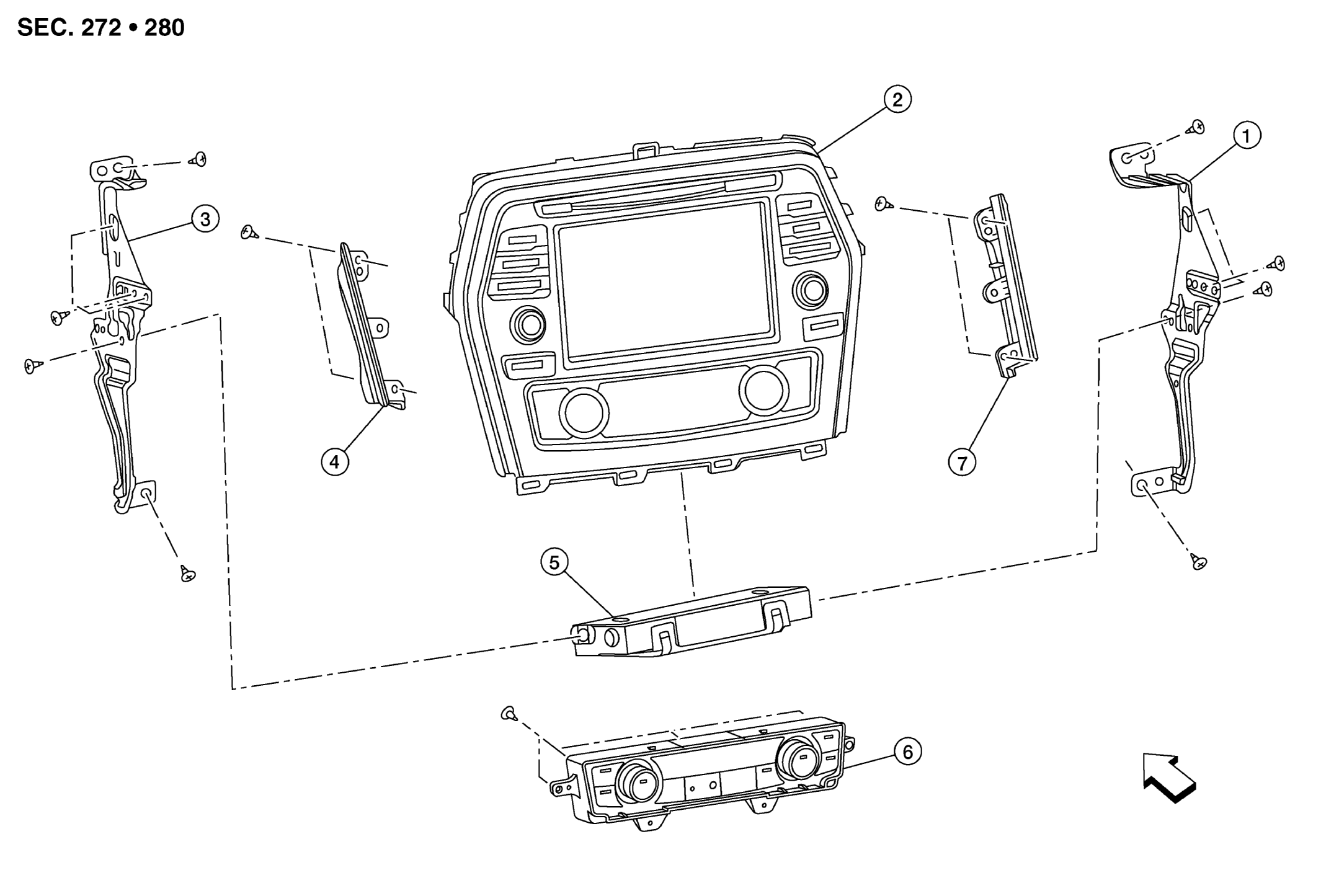

GNSAWIIA2142ZZ-142Courtesy of NISSAN NORTH AMERICA, INC.
1. AV control unit bracket (RH) 2. AV control unit 3. AV control unit bracket (LH)
4. AV control unit finisher (LH) 5. A/C auto amp. 6. A/C switch assembly
7. AV control unit finisher (RH) ARROW Front
