Diagnostic Test

  1. CHECK FUEL PUMP FUNCTION

    1. Turn ignition switch ON.

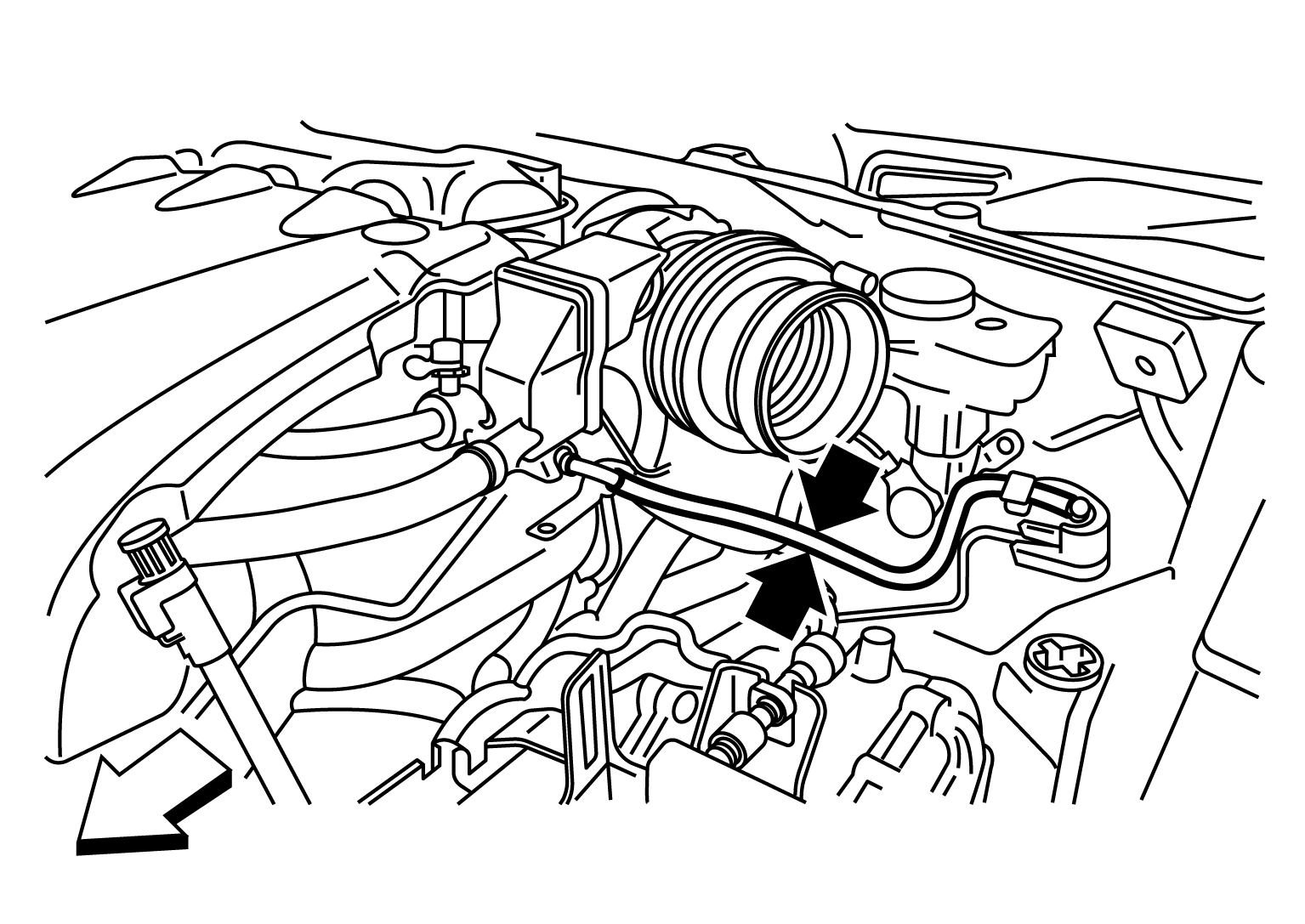

    2. Pinch fuel feed hose with two fingers.
      GNSALBIA1341ZZ-341Courtesy of NISSAN NORTH AMERICA, INC.
      ARROW : Vehicle front
      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    DIAGNOSIS PROCEDURE .
