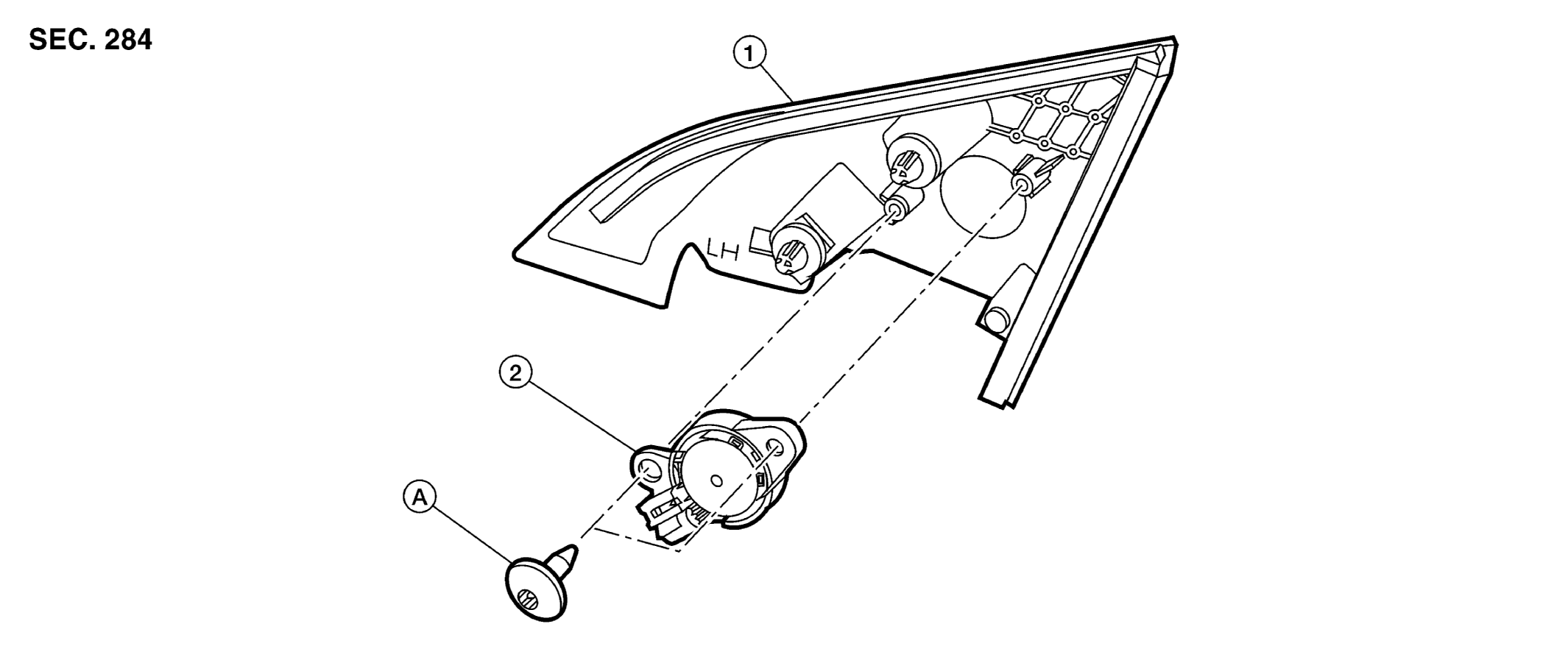

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Door mirror corner finisher
2.
Front tweeter
A.
Screw
NOTE:
LH shown, RH similar.
Courtesy of NISSAN NORTH AMERICA, INC.
