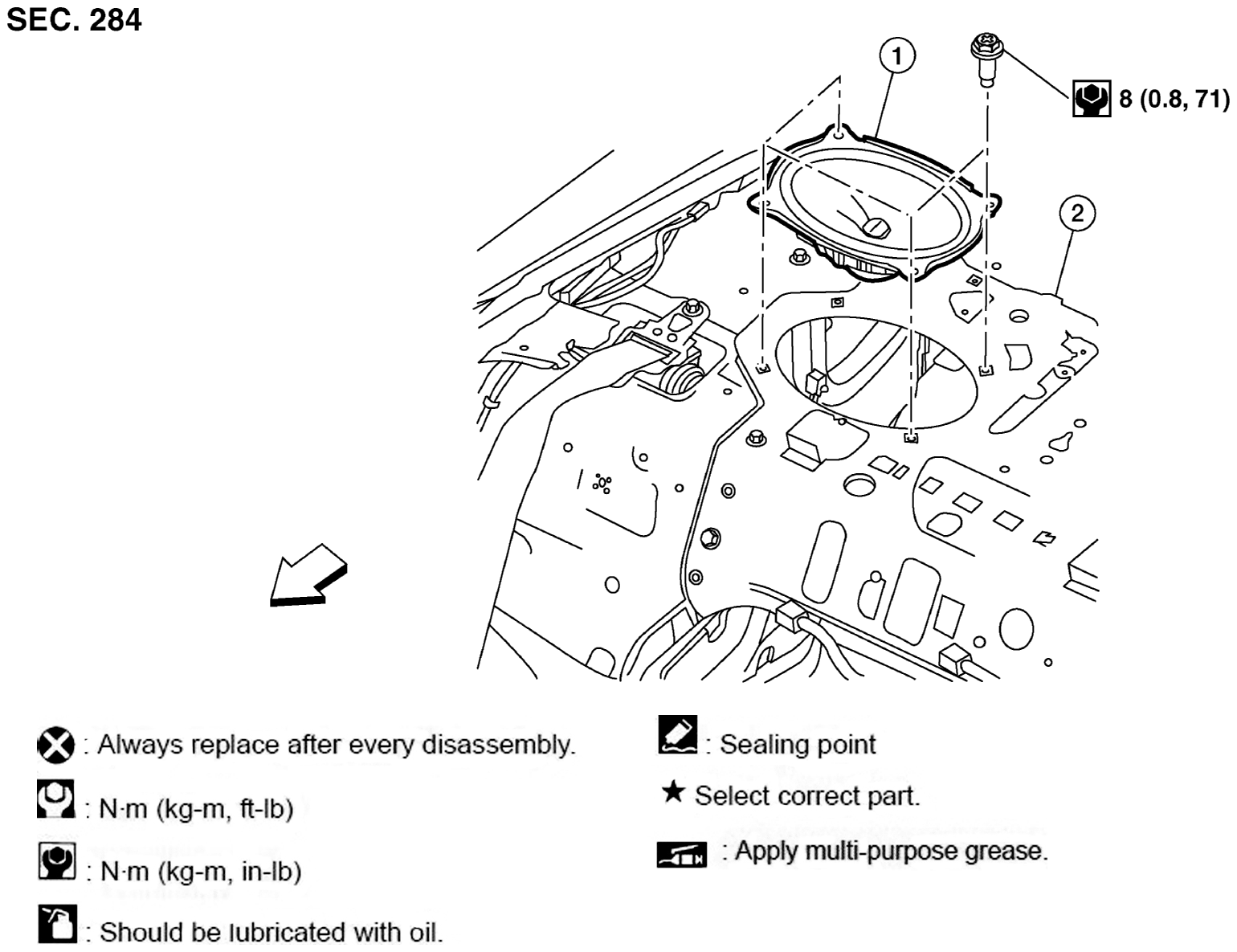

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear subwoofer
2.
Rear parcel shelf
Front
NOTE:
RH shown, LH similar.
Courtesy of NISSAN NORTH AMERICA, INC.
