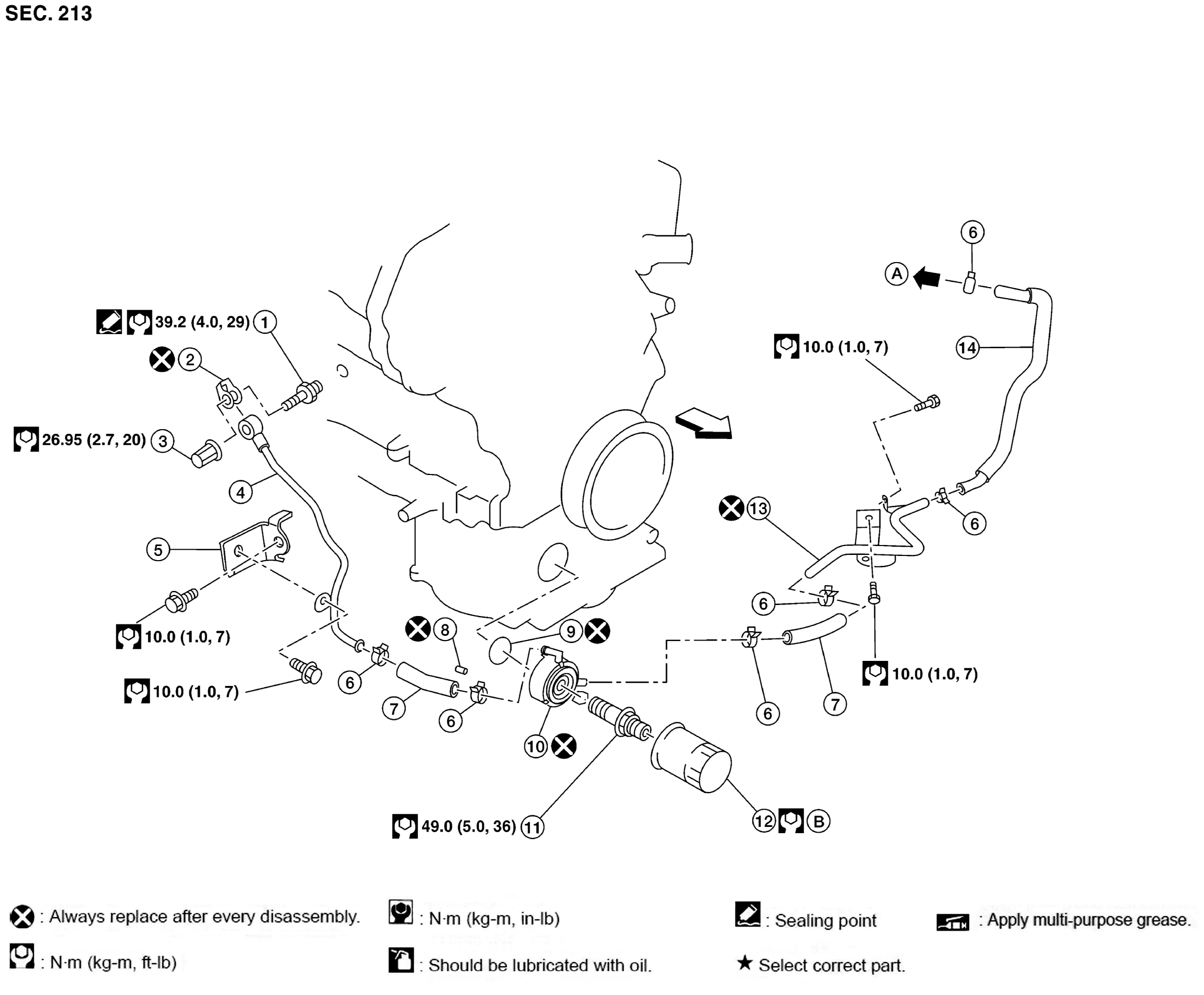

Exploded View
| 1. | Connector bolt | 2. | Copper gasket | 3. | Water drain plug |
| 4. | Water pipe | 5. | Bracket | 6. | Clamp |
| 7. | Water hose | 8. | Relief valve | 9. | Oil cooler O-Ring |
| 10. | Oil cooler | 11. | Connector bolt | 12. | Oil filter |
| 13. | Water pipe | 14. | Water hose | A. | To water connector |
| B. | Refer to REMOVAL AND INSTALLATION . | Engine front |
