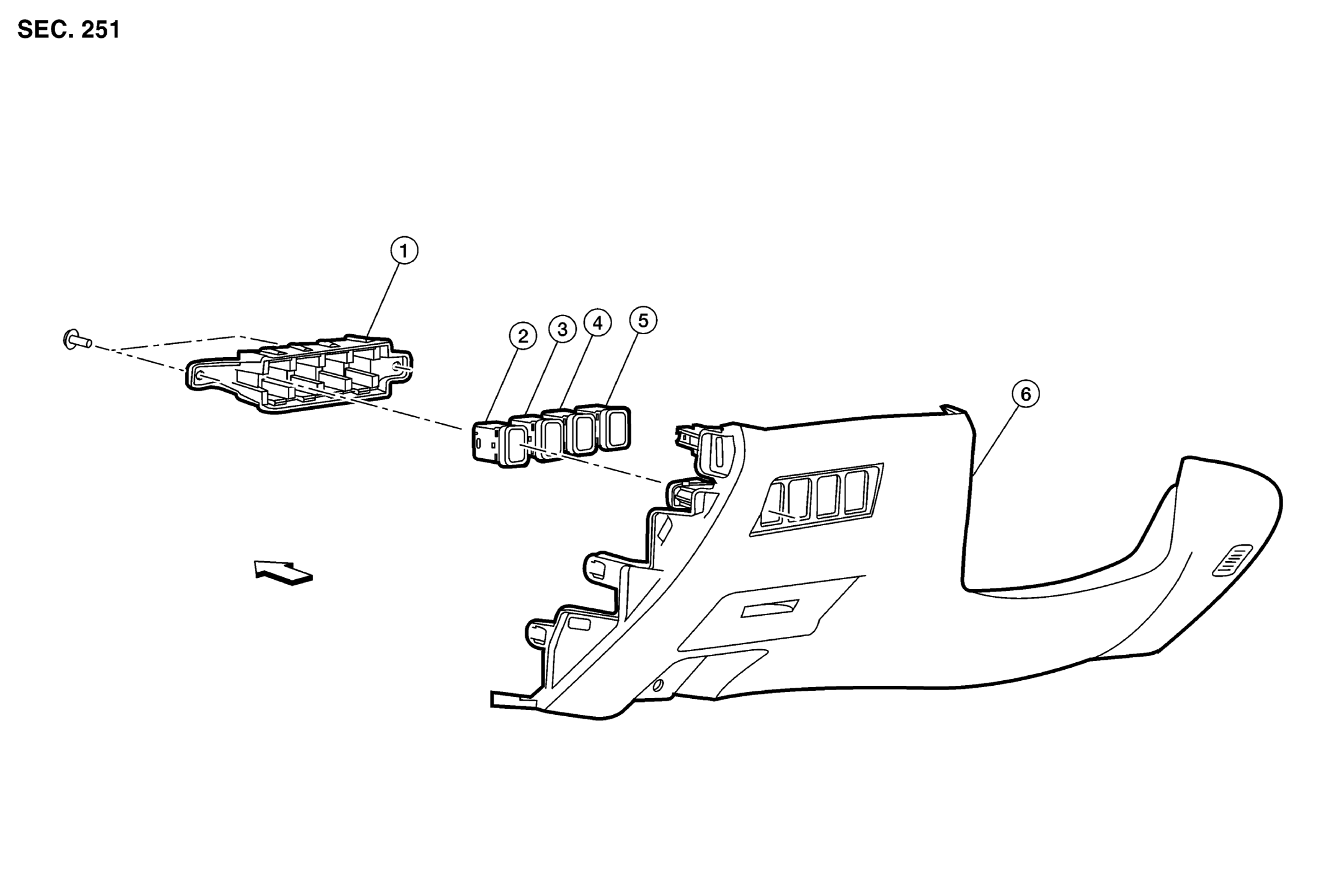

Exploded View

GNSALJIA1725ZZ-725Courtesy of NISSAN NORTH AMERICA, INC.
1. Switch carrier 2. Trunk lid switch 3. VDC OFF switch
4. Heated steering wheel switch 5. Rear sunshade switch (if equipped) 6. Instrument lower panel LH
ARROW Front
