Exploded View

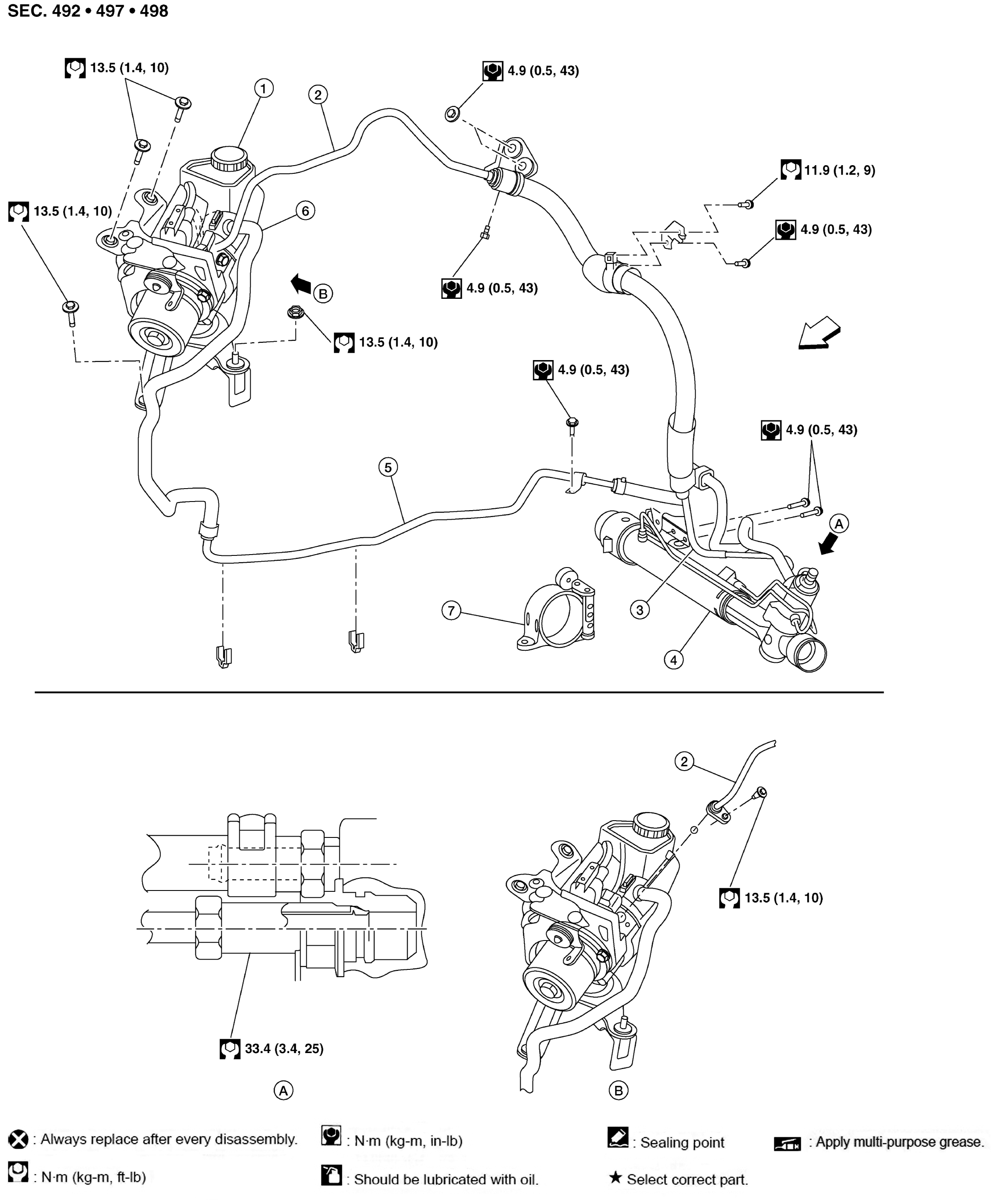

Fig 1: Hydraulic Line With Torque Specifications

GNSAWGIA0384ZZ-384

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Power steering oil pump	2.	High-pressure piping (upper)	3.	High-pressure piping (lower)
4.	Steering gear	5.	Low-pressure piping (lower)	6.	Low-pressure piping (upper)
7.	Torque rod bracket	A.	View A	B.	View B
	Front
