Exploded View

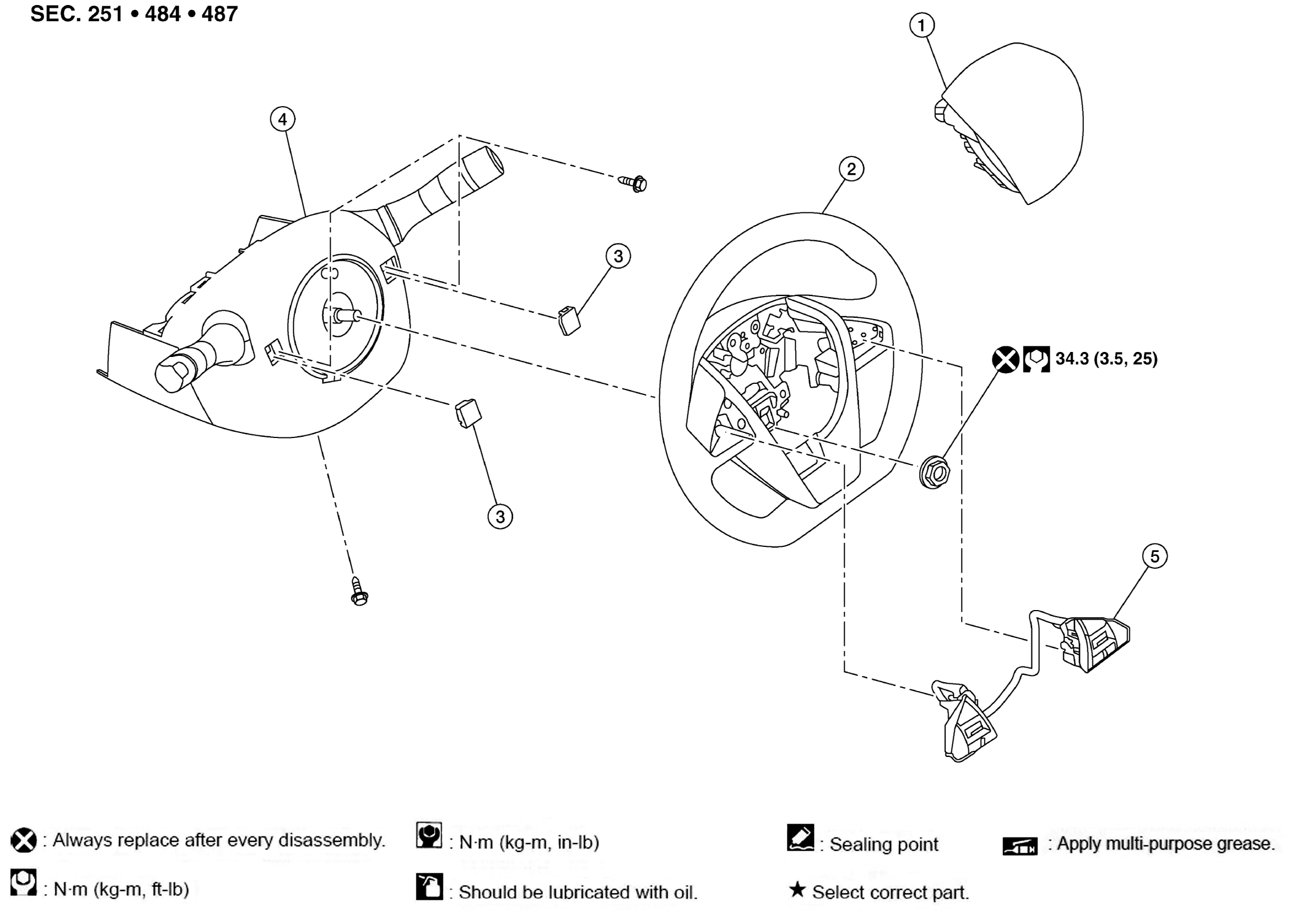

Fig 1: Steering Wheel With Torque Specifications
GNSAWGIA0449ZZ-449Courtesy of NISSAN NORTH AMERICA, INC.
1. Driver air bag module 2. Steering wheel 3. Cover
4. Steering column cover 5. Steering wheel switches
