Tilt Mechanism Operating Range

Unit: mm (in)

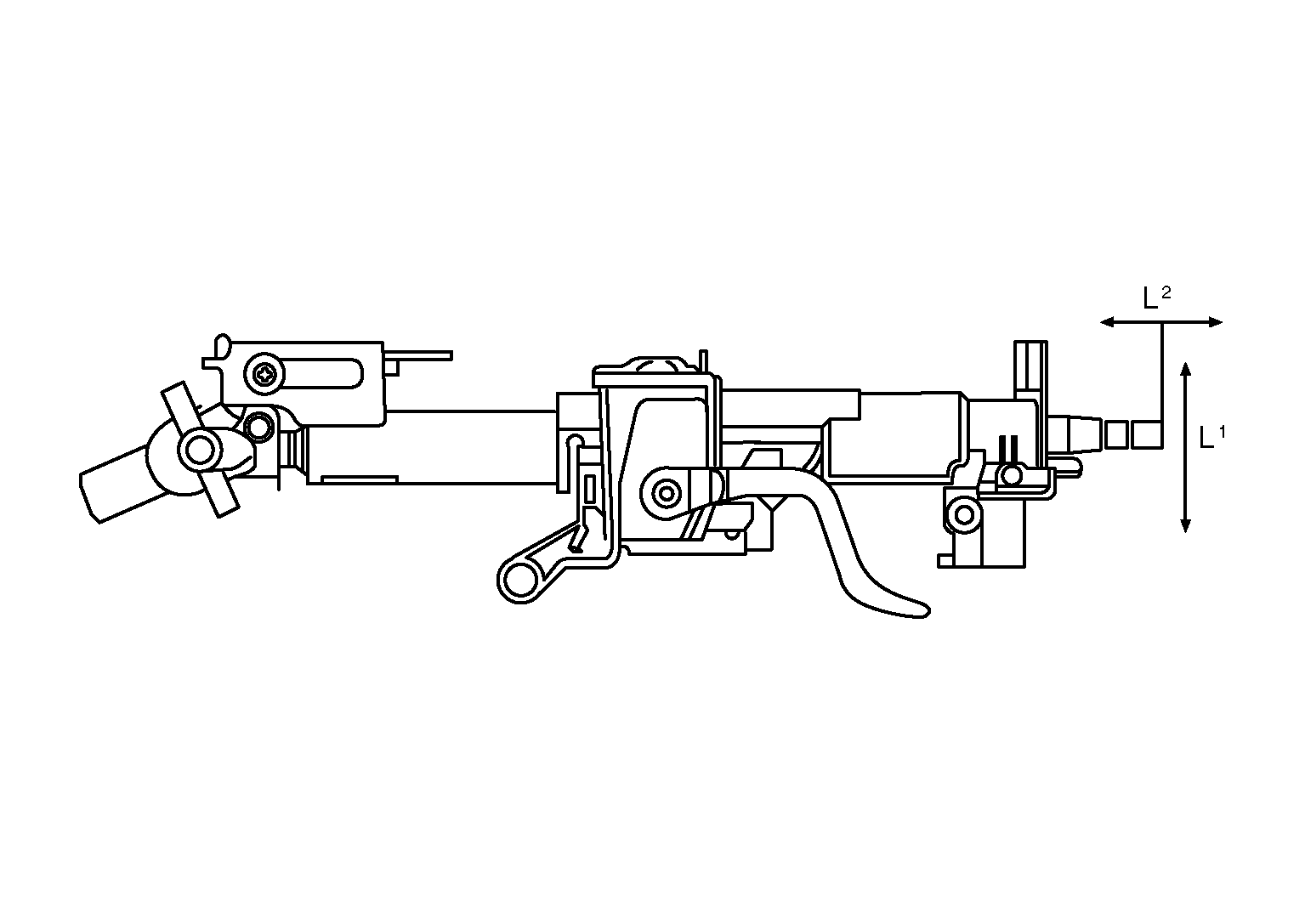

GNSALGIA0233ZZ-233Courtesy of NISSAN NORTH AMERICA, INC.

Tilt operating range (L1 ) 50 (1.97)
Telescopic operating range (L2 ) 60 (2.36)
