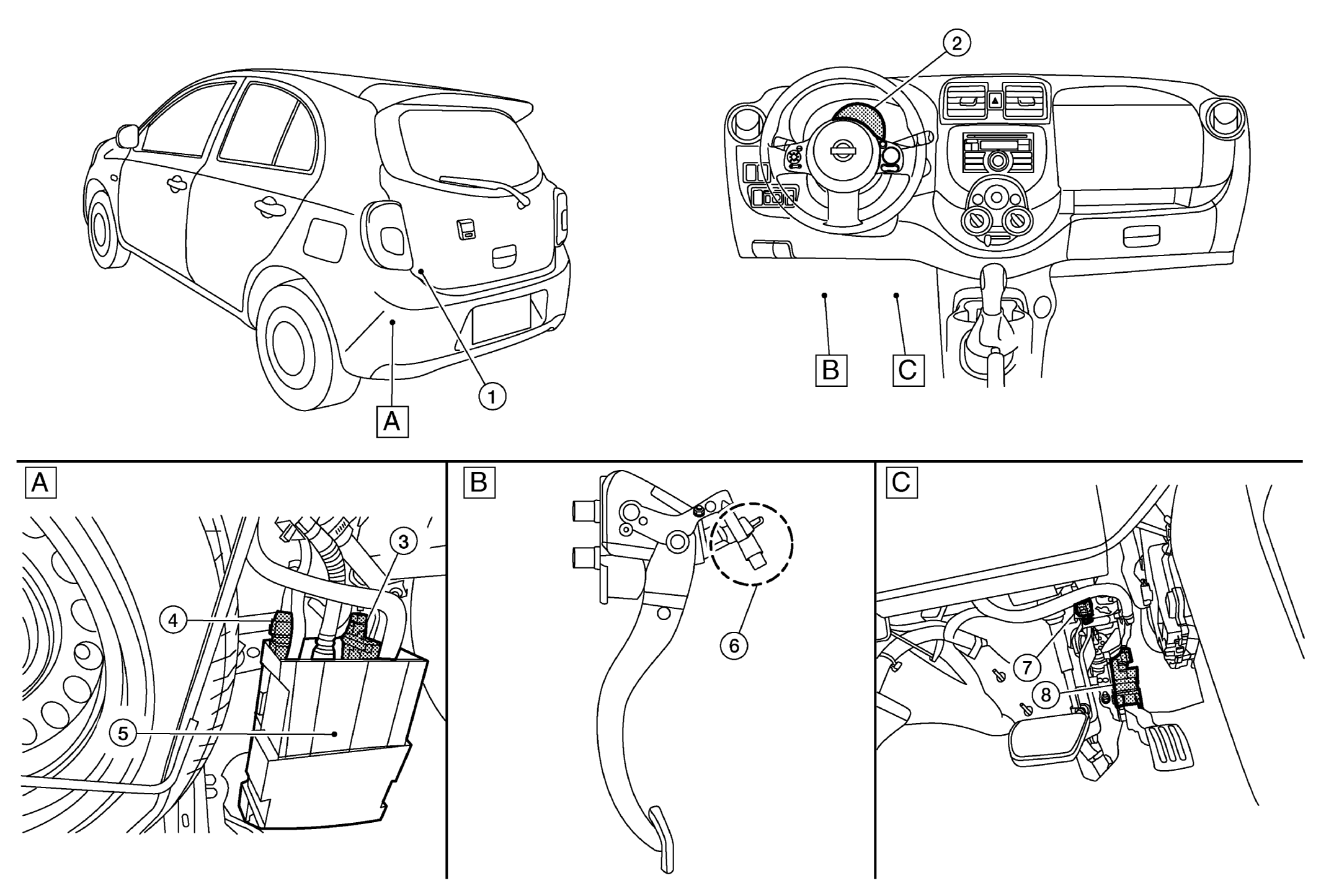

Fuel level sensor unit and fuel pump |
FUEL PUMP
Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS
for detailed installation location. |
 |
Combination meter [Malfunction indicator lamp (MIL)] |
MALFUNCTION INDICATOR LAMP (MIL) |
 |
EVAP canister vent control valve |
EVAP CANISTER VENT CONTROL VALVE |
 |
EVAP control system pressure sensor |
EVAP CONTROL SYSTEM PRESSURE SENSOR |
 |
EVAP canister |
SYSTEM DESCRIPTION |
 |
Clutch pedal positon switch |
When the clutch pedal is depressed, the clutch pedal position switch turns OFF and the clutch pedal position switch signal is sent to the ECM. The ECM judges the clutch pedal conditions via the signal (ON or OFF). |
 |
Stop lamp switch |
STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH |
 |
Accelerator pedal position sensor |
ACCELERATOR PEDAL POSITION SENSOR |
