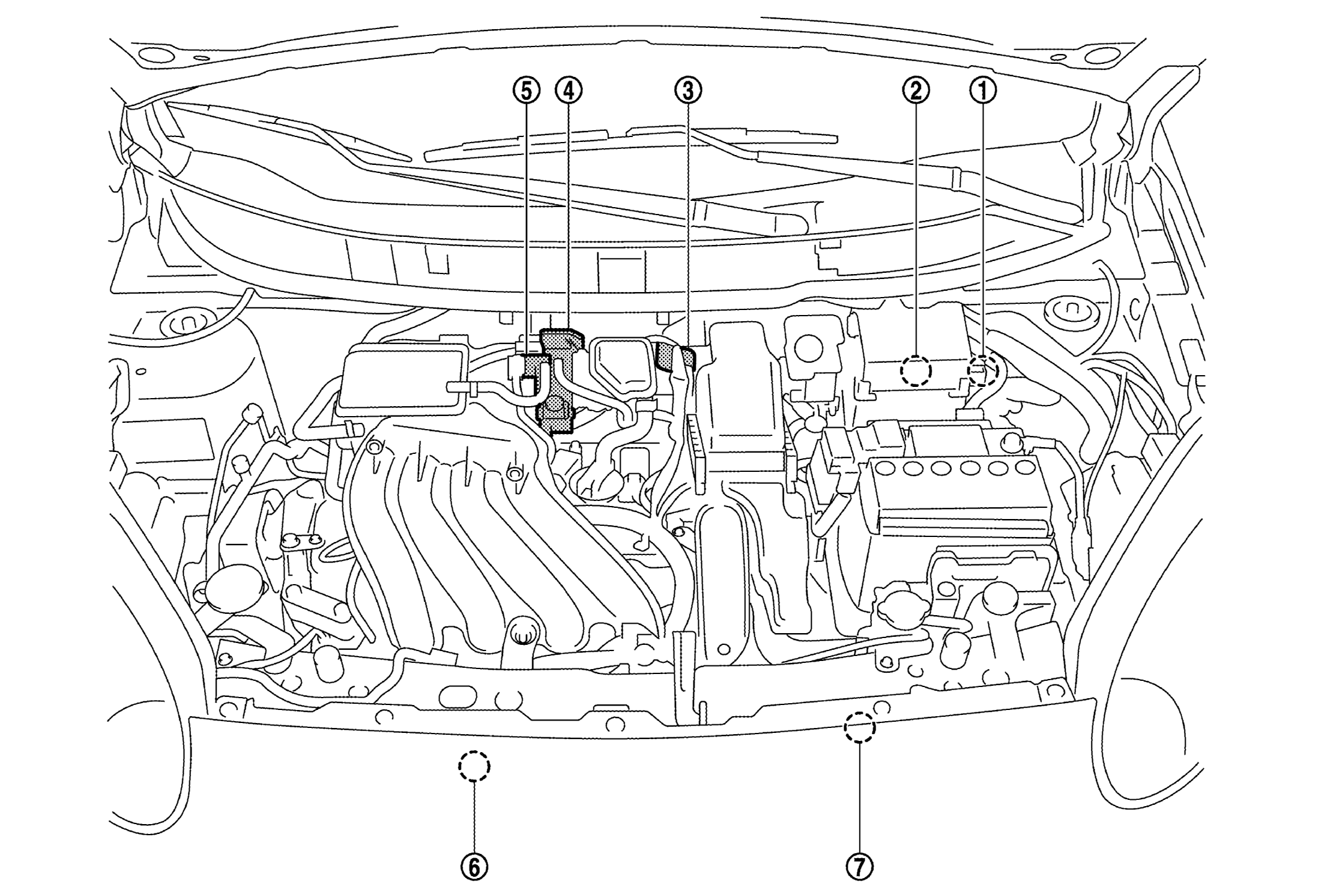

Engine Room Compartment
| No. | Component | Function |
|---|---|---|
| 1. | ECM | ECM |
| 2. | IPDM E/R | IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to COMPONENT LOCATION for detailed installation location. |
| 3. | Mass air flow sensor | MASS AIR FLOW SENSOR |
| 4. | Electric throttle control actuator | ELECTRIC THROTTLE CONTROL ACTUATOR |
| 5. | EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| 6. | Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR Refer to COMPONENT LOCATION for detailed installation location. |
| 7. | Cooling fan motor | COOLING FAN |
