Disassembly And Assembly: Disassembly

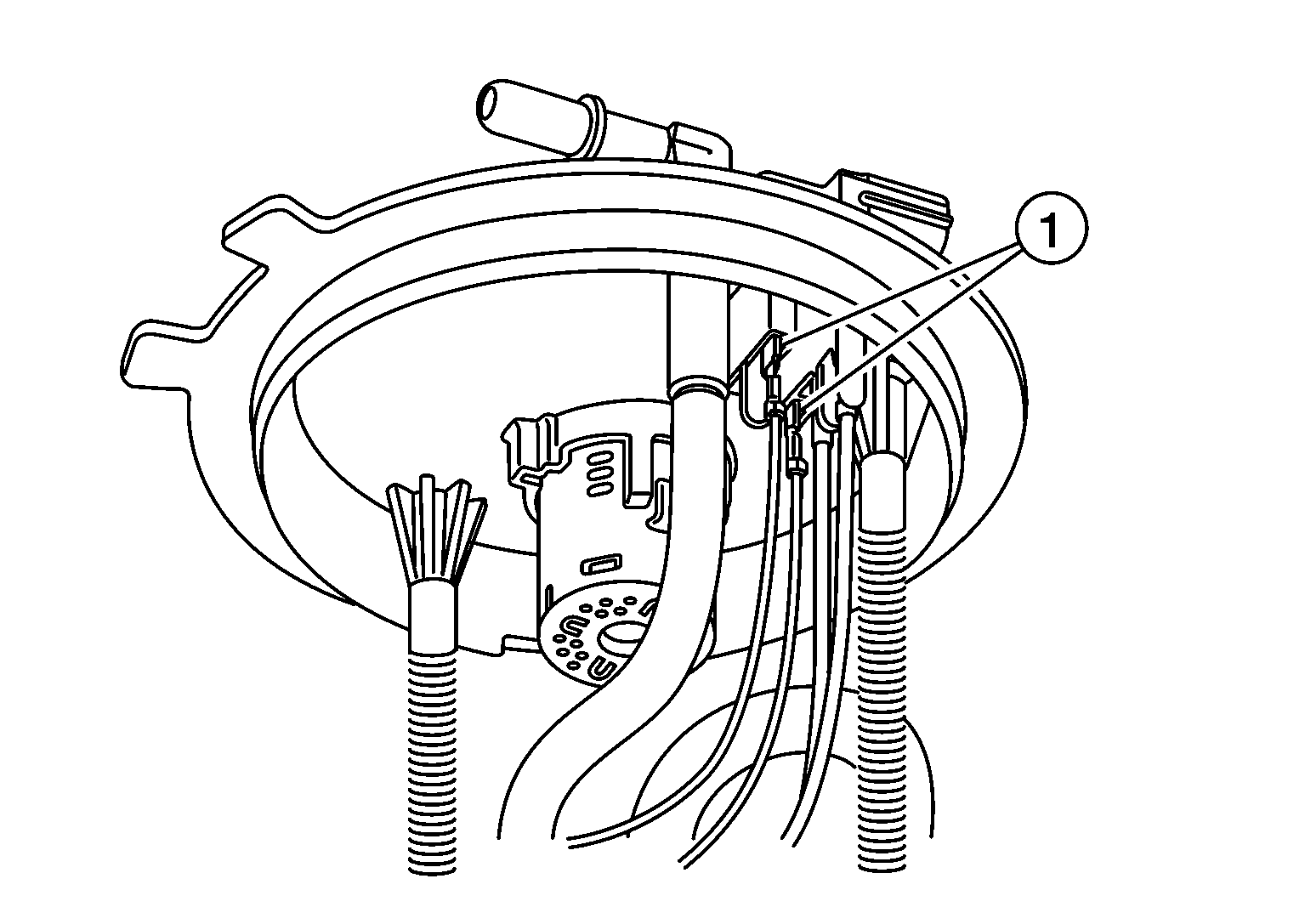

Disconnect fuel level unit sensor harness connectors (1).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:
Hold connector with your fingers, because there is no tab for releasing stopper. Pull it out straight downward.
Using a suitable tool push tab (A) in the direction ( ) shown and remove fuel level sensor unit (2) from fuel filter and fuel pump assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not damage the fuel level sensor unit.
- Do not disassemble fuel filter and fuel pump assembly.
