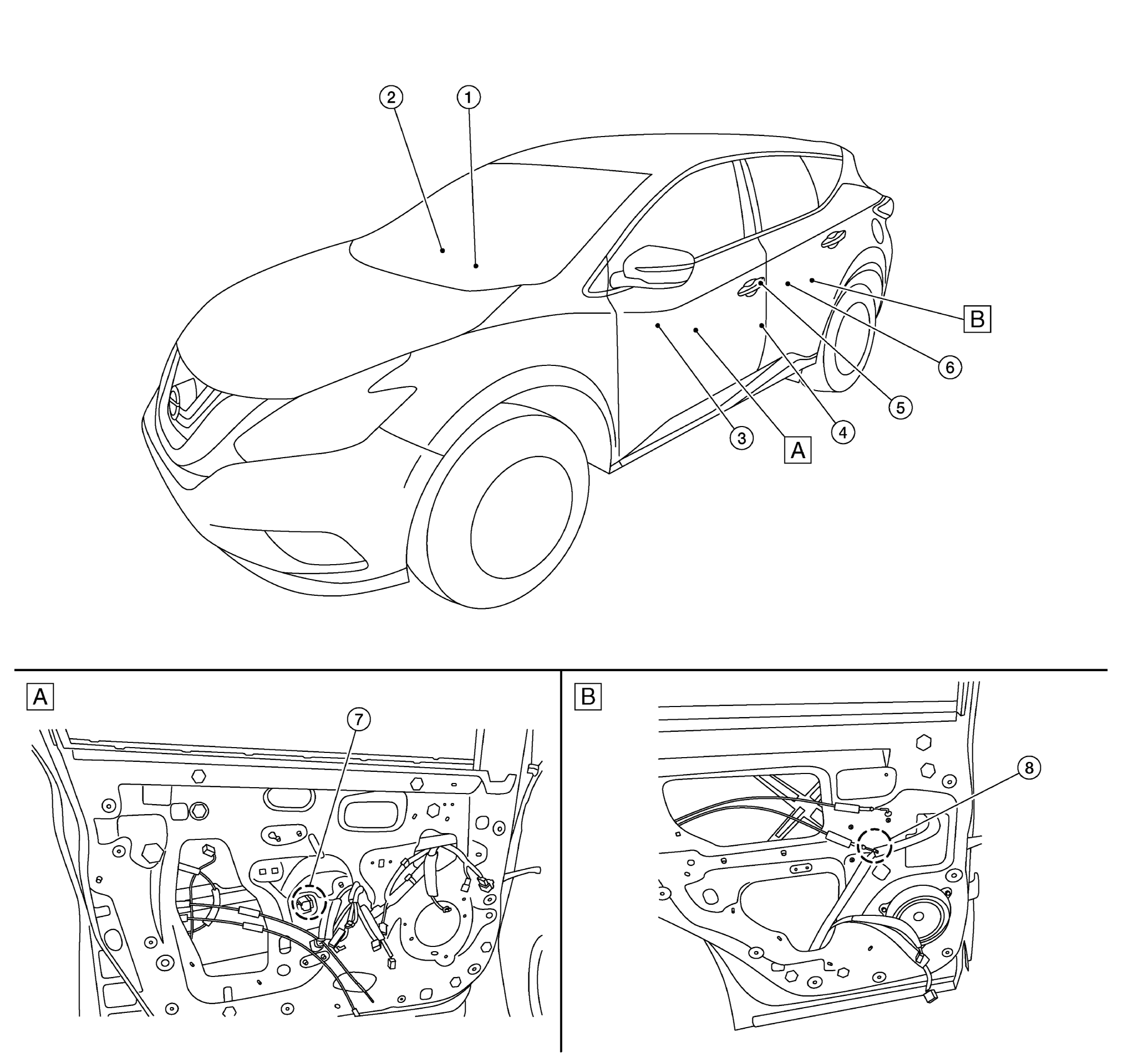

| 1. |
BCM |
- Supplies power to the window switches.
- Controls retained power.
- Refer to COMPONENT LOCATION
for detailed installation location.
|
| 2. |
Power window and door lock/unlock switch RH |
Refer to POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH |
| 3. |
Main power window and door lock/unlock switch |
Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH |
| 4. |
Front door switch LH |
Detects door open/close condition and transmits to BCM. Refer to FRONT DOOR SWITCH
. |
| 5. |
Front door lock assembly LH (key cylinder switch) |
Transmits operation condition of door key cylinder switch to main power window and door lock/unlock switch. |
| 6. |
Rear power window switch LH |
Refer to REAR POWER WINDOW SWITCH |
| 7. |
Front power window motor LH |
Refer to POWER WINDOW MOTOR |
| 8. |
Rear power window motor LH |
Refer to POWER WINDOW MOTOR |
