Component Location

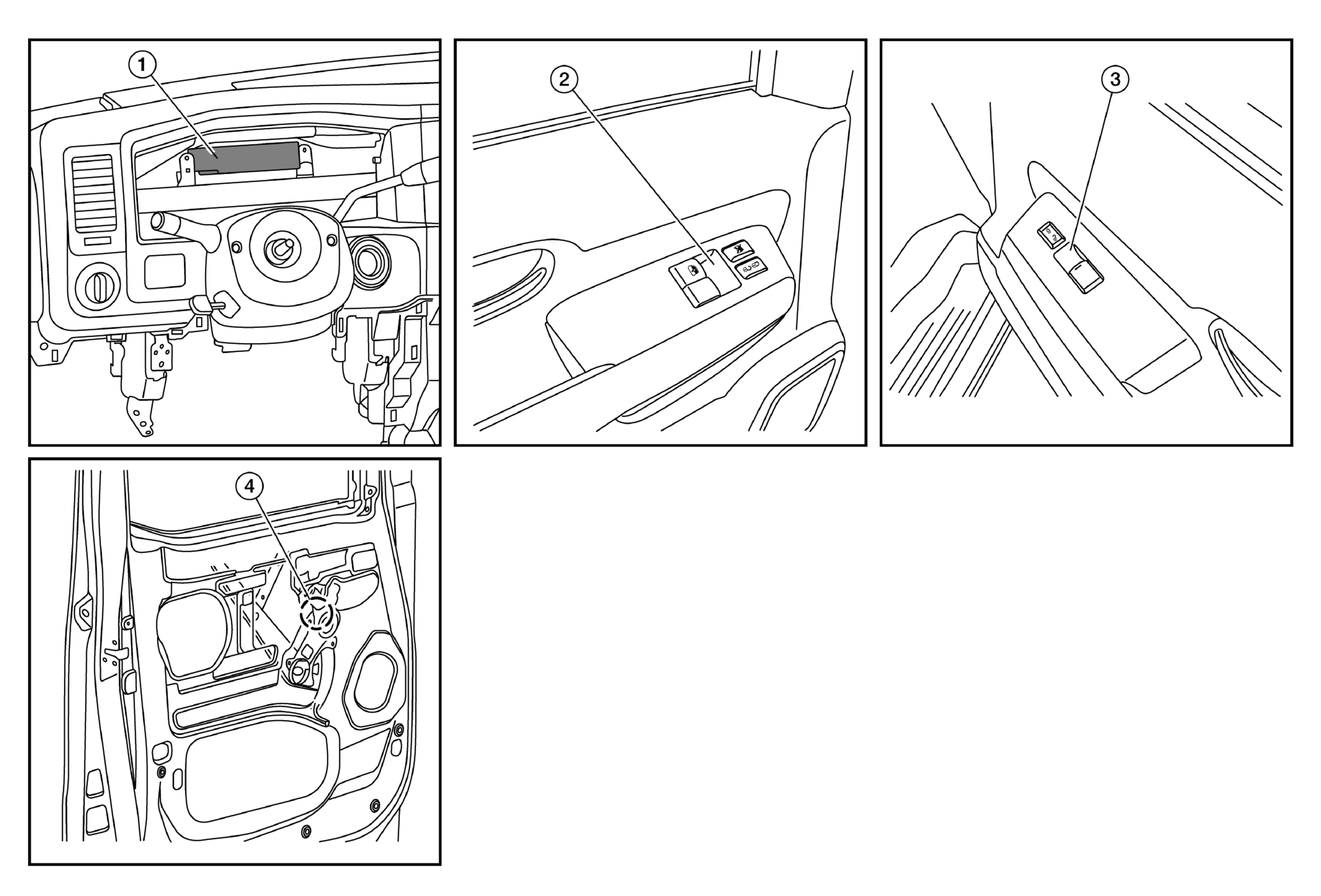

GNSALKIA1968ZZ-968Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with steering wheel and combination meter removed) 2. Main power window and door lock/unlock switch 3. Power window and door lock/unlock switch RH
4. Front power window motor LH (RH similar)
