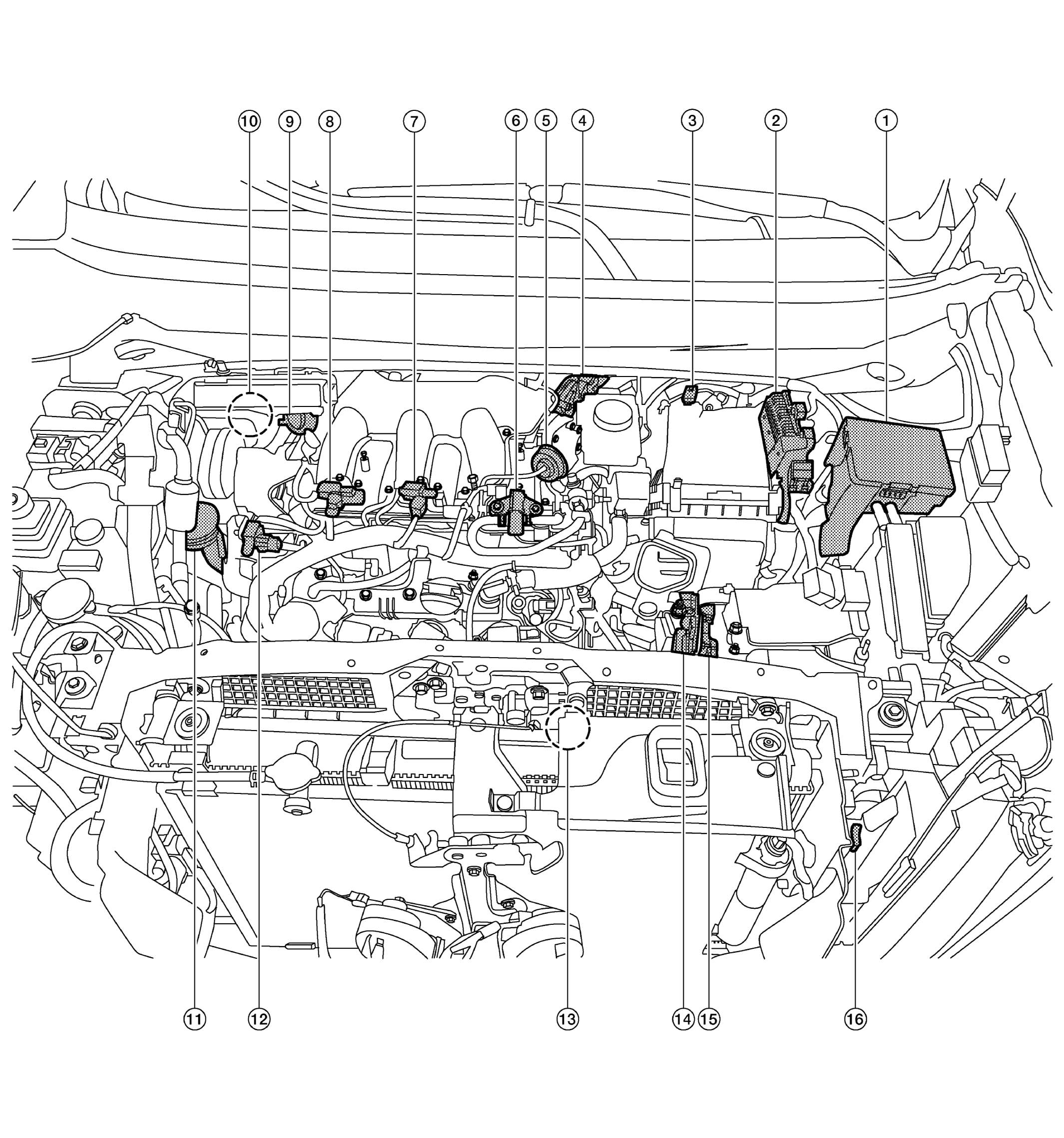

Engine Room Component
| No. | Component | Function |
|---|---|---|
| IPDM E/R | IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
| ECM (with barometric pressure sensor) | ECM (WITH BAROMETRIC PRESSURE SENSOR) | |
| Mass air flow sensor (with intake air temperature sensor) (bank 1) | MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR) | |
| Electric throttle control actuator | ELECTRIC THROTTLE CONTROL ACTUATOR | |
| Power valve actuator 2 | POWER VALVE ACTUATOR 1 AND 2 | |
| EVAP canister purge volume control solenoid valve | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE | |
| VIAS control solenoid valve 2 | VIAS CONTROL SOLENOID VALVE 1 AND 2 | |
| VIAS control solenoid valve 1 | ||
| Power valve actuator 1 | POWER VALVE ACTUATOR 1 AND 2 | |
| ABS actuator and electric unit (control unit) | Mainly transmits the following signal to ECM via CAN communication.
|
|
| Rear electronic controlled engine mount | ELECTRONIC CONTROLLED ENGINE MOUNT | |
| Electronic controlled engine mount control solenoid valve | ||
| Front electronic controlled engine mount | ||
| TCM | Mainly transmits the following signal to ECM via CAN communication.
|
|
| Electric intake valve timing control module | ELECTRIC INTAKE VALVE TIMING CONTROL MODULE | |
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR |
