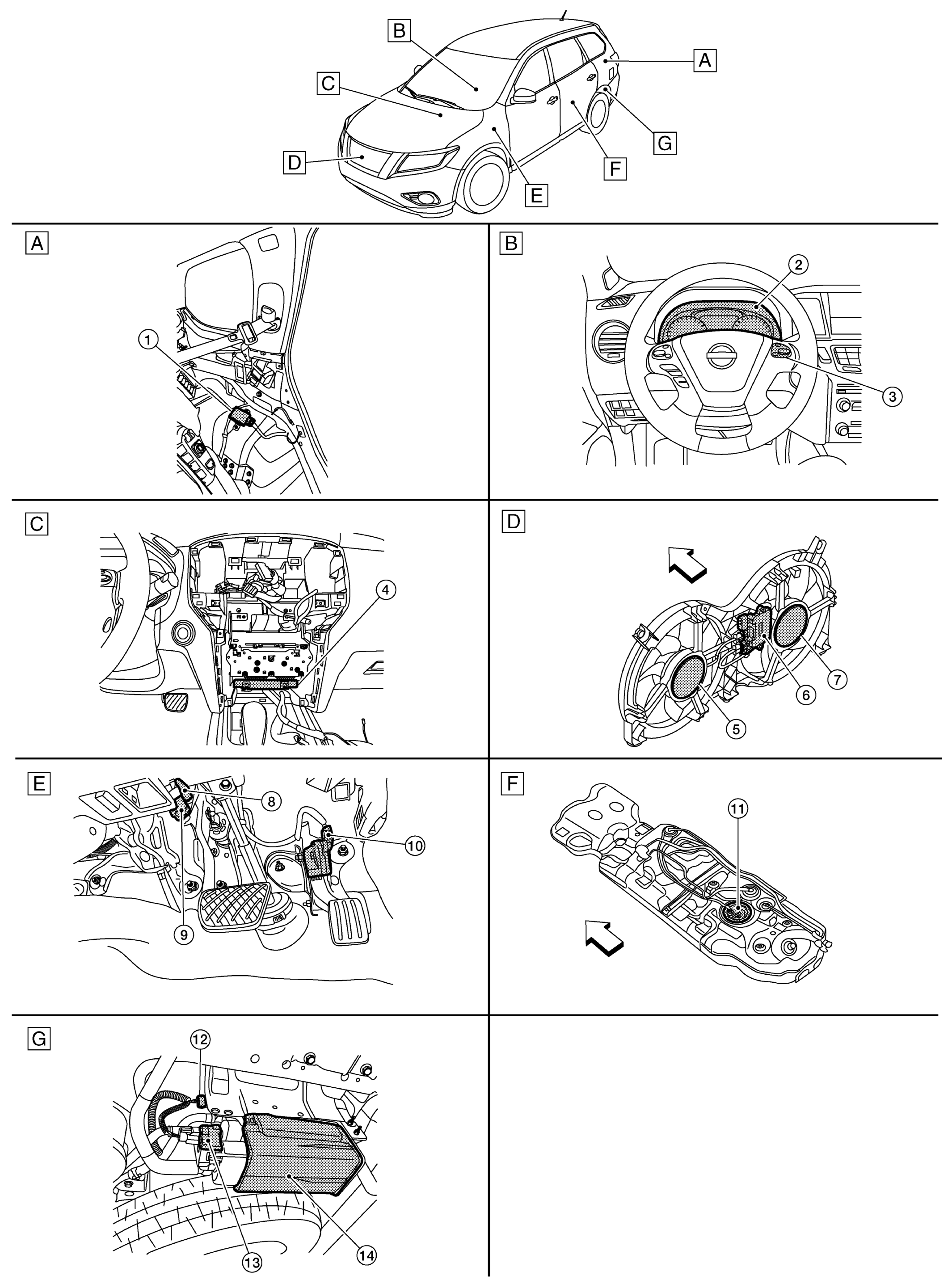

Vehicle Compartment
| Behind left rear door | Instrument panel periphery (driver side) | Instrument panel (center) | |||
| Front side of engine room (cooling fan assembly) | Pedal periphery | Under rear seat (fuel tank) | |||
| Under spare tire housing | |||||
| Vehicle front |
| No. | Component | Function |
|---|---|---|
| Fuel pump control module (FPCM) | FUEL PUMP CONTROL MODULE | |
| Combination meter | Mainly transmits the following signal to ECM via CAN communication.
Mainly receives the following signal from ECM via CAN communication.
|
|
| ASCD steering switch | ASCD STEERING SWITCH | |
| ICC steering switch | ICC STEERING SWITCH | |
| A/C auto amp. | Mainly transmits the following signals to ECM via CAN communication.
|
|
| Cooling fan motor - 1 | COOLING FAN | |
| Cooling fan control module | ||
| Cooling fan motor - 2 | ||
| Stop lamp switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Brake pedal position switch | ||
| Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR | |
| Fuel level sensor unit and fuel pump (with fuel tank temperature sensor) | LOW PRESSURE FUEL PUMP FUEL LEVEL SENSOR FUEL TANK TEMPERATURE SENSOR |
|
| EVAP control system pressure sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| EVAP canister vent control valve | EVAP CANISTER VENT CONTROL VALVE | |
| EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. |
