Component Location

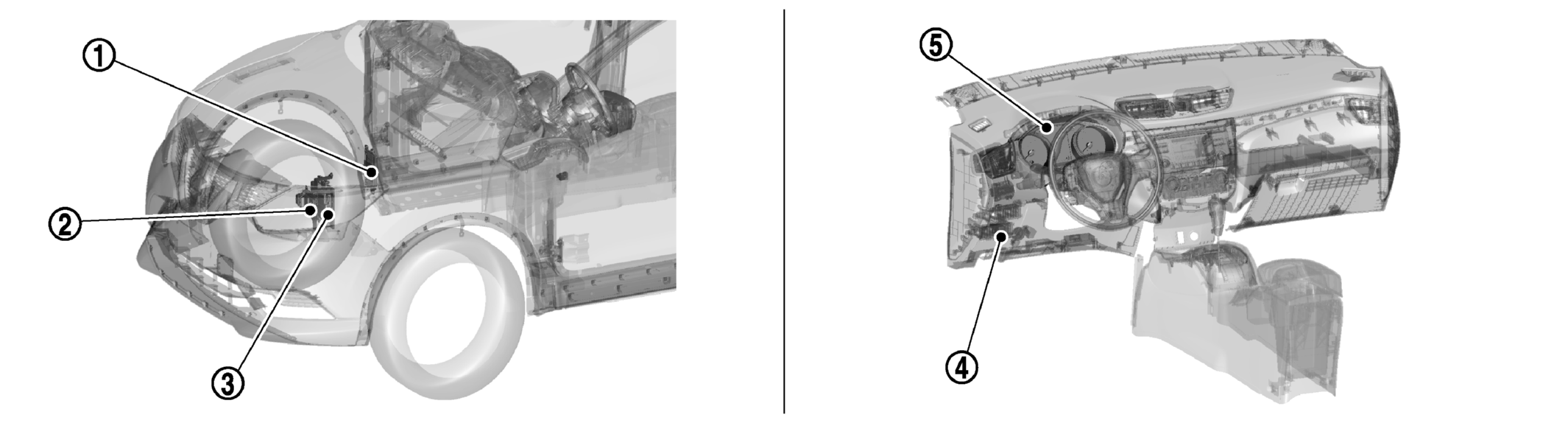

GNSJSOIA2253ZZ-253Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 TCM (MR engine models)
  • The TCM receives the following signal via CAN communications from the combination meter.
    • ECO mode switch signal
  • The TCM transmits the following signal via CAN communications to the ECM.
    • ECO mode signal
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 TCM* -
WHITE-3 ECM
  • The ECM receives the following signal via CAN communications from the TCM.
    • ECO mode signal
  • The ECM transmits the following signal via CAN communications to the combination meter.
    • ECO mode indicator signal
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-4 ECO mode switch Refer to ECO MODE SWITCH .
WHITE-5 Combination meter
  • The combination meter transmits the following signal via CAN communications to the TCM.
    • ECO mode switch signal
  • The combination meter receives the following signal via CAN communications from the ECM.
    • ECO mode indicator signal
Refer to COMPONENT LOCATION for detailed installation location.

*: Not applicable
